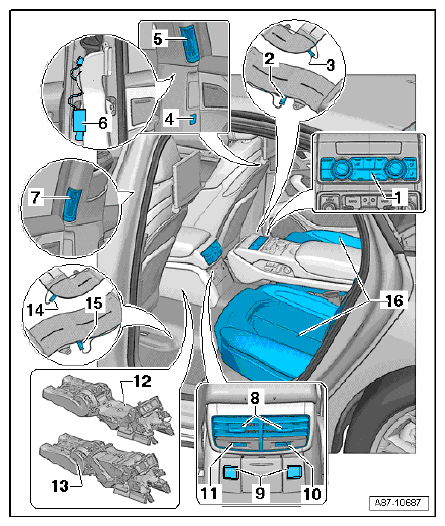

Rear Seat Controls

  1. Rear A/C Display Control Head (Climatronic) -E265-
  2. Right Rear Upper Body Vent Temperature Sensor -G636-
  3. Right Rear Footwell Vent Temperature Sensor -G638-
  4. Air Ionization System Button -E677-
  5. Right Side B-Pillar Outlet
  6. Air Ionization System Control Module -J897-
  7. Left Side B-Pillar Outlet
  8. Center Console Outlet for Rear Seats
  9. Rear Heated Switches
    • Left Rear Heated Seat Regulating Switch -E128- or Left Rear Heated Seat Switch -E77-
    • Right Rear Heated Seat Regulating Switch -E129- or Right Rear Heated Seat Switch -E78-
  10. Position Sensor in Right Rear Upper Body Vent -G631-
  11. Position Sensor in Left Rear Upper Body Vent -G630-
  12. Rear A/C housing (basic)
  13. Rear A/C housing (comfort)
  14. Left Rear Upper Body Vent Temperature Sensor -G635-
  15. Left Rear Footwell Vent Temperature Sensor -G637-
  16. Rear Heated Seat
    • Left Rear Backrest Heating Element -Z11-/Left Rear Seat Heating Element -Z10- with Left

      Rear Heated Seat Temperature Sensor -G94-

    • Right Rear Seat Heating Element -Z12-/Right Rear Backrest Heating Element -Z13- with

      Right Rear Heated Seat Temperature Sensor -G95-

G12770507Courtesy of AUDI OF AMERICA, LLC
