Data Bus On Board Diagnostic Interface -J533-

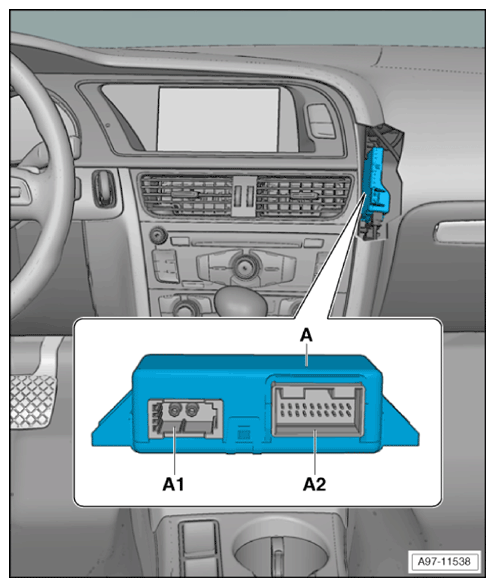

Component Location:

Below Instrument Panel.

  1. A  - Data Bus On Board Diagnostic Interface -J533-
  2. A1  - Double Connector -T2dl-
  3. A2  - 20-Pin Connector -T20d-
G12766915Courtesy of AUDI OF AMERICA, LLC
