Relay/Fuse Panel B -Sb-: Notes

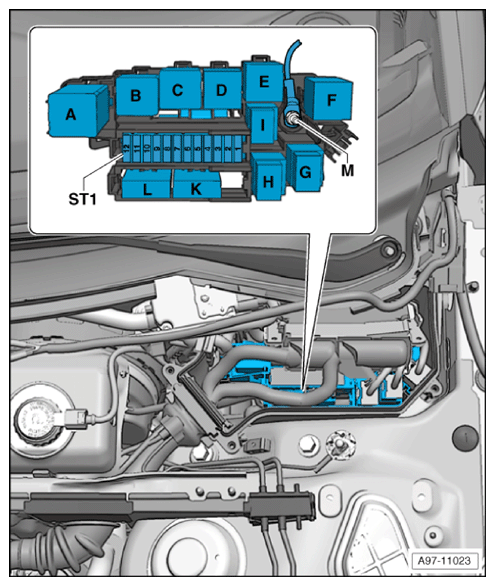

Component Location Relay/Fuse Panel B -SB- for models with left-hand drive:
In Electronics Box (In Plenum Chamber, Driver's Side)
NOTE:
- Illustration Shows Models With Left-Hand Drive.
- Illustration for models with right-hand drive → COMPONENT LOCATION RELAY/FUSE PANEL B -SB- FOR MODELS WITH RIGHT-HAND DRIVE: .
- G - 17-Pin Connector, red -T17q-
- H - 17-Pin Connector, white -T17r-
- I - 17-Pin Connector, brown -T17t-
- M - 501 Threaded connection 2 (30) on relay panel
