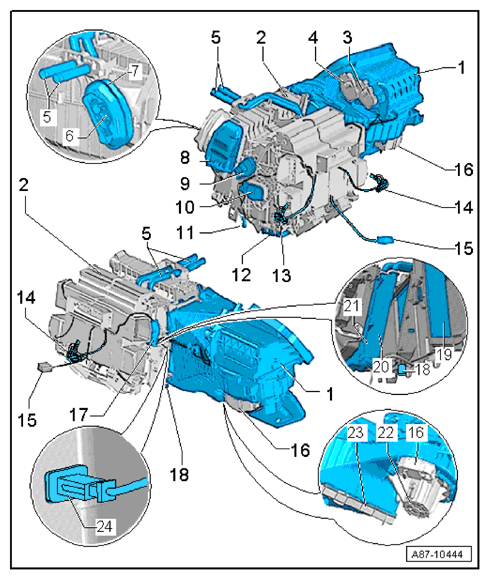

A/C Unit And Air Intake Housing Components Basis A/C System
- Air Intake Housing
- A/C With Evaporator (Basis A/C System)
- Recirculation Door Motor -V113-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → A/C UNIT AND AIR INTAKE HOUSING COMPONENTS, COMFORT A/C SYSTEM
- Air Flow Door Motor -V71-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → A/C UNIT AND AIR INTAKE HOUSING COMPONENTS, COMFORT A/C SYSTEM
- Coolant Pipes To Heater Core
- Expansion Valve
- Grommet
- Cover For The Refrigerant Pipes Leading To The Evaporator
- Defroster Door Motor -V107-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → A/C UNIT AND AIR INTAKE HOUSING COMPONENTS, COMFORT A/C SYSTEM
- Footwell Door Motor -V261-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → A/C UNIT AND AIR INTAKE HOUSING COMPONENTS, COMFORT A/C SYSTEM
- Left Condensation Water Drain Connection,(Driver Side)
- Temperature Regulator Door Motor -V68-
- Footwell Outlet Temperature Sensor -G192-
- Installed in the left footwell vent
- Center Outlet Temperature Sensor -G191-
- Installed in the center instrument panel air guide channel
A/C Unit and Air Intake Housing Components Basis A/C System continued
- Connection To The A/C Control Head Climatronic Control Module -J255- on The A/C Wire Harness.
- Fresh Air Blower Control Module -J126-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → A/C UNIT AND AIR INTAKE HOUSING COMPONENTS, COMFORT A/C SYSTEM
- Center Vent Adjustment Motor -V102-
- Right Condensation Water Drain Connection (Passenger Side)
- Evaporator
- Heat Exchanger For Heater Unit
- Auxiliary Air Heater Heating Element -Z35-
- The Auxiliary Air Heater Heating Element -Z35- is only installed on diesel vehicles
- A/C Unit and Air Intake Housing Components Comfort A/C System location → Item 22
- Fresh air blower -V2-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → Item 26
- Dust And Pollen Filter
- Evaporator Vent Temperature Sensor -G263-
- A/C Unit and Air Intake Housing Components Comfort A/C System location → Item 28
