Comfort System Central Control Module Connector End View (J393, T18, T8g, T6g)

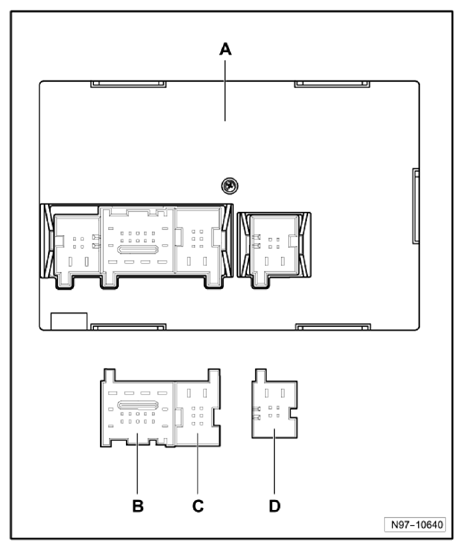

Fig 1: Comfort System Central Control Module Connector End View (J393, T18, T8g, T6g)
Courtesy of AUDI OF AMERICA, LLC
A
Comfort System Central Control Module -J393- Connector
B
18-Pin Connector, brown -T18-
C
8-Pin Connector, black -T8g-
D
6-Pin Connector, black -T6g-
