Vehicle Electrical System Control Module Connector End View (J519, T52a, T52b, T52c)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Vehicle Electrical System Control Module Connector End View (J519, T52a, T52b, T52c)

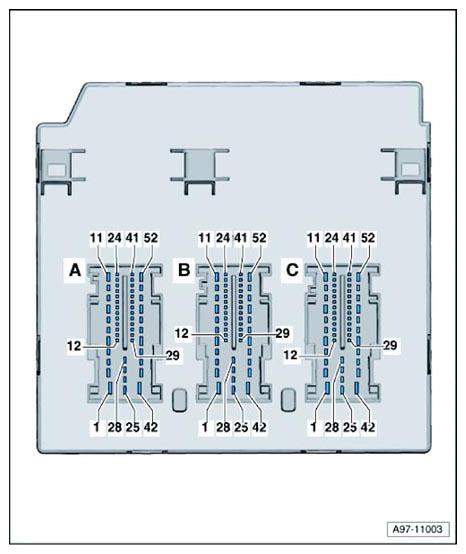

Fig 1: Vehicle Electrical System Control Module Connector End View (J519, T52a, T52b, T52c)
Courtesy of AUDI OF AMERICA, LLC
A
52-Pin Connector -T52a-
B
52-Pin Connector -T52b-
C
52-Pin Connector -T52c-
