Instrument cluster driver information display, adapting language version: Example:

• Press button -0- four times and then button -2- to input English-language adaptation value "00002."

Indicated on display

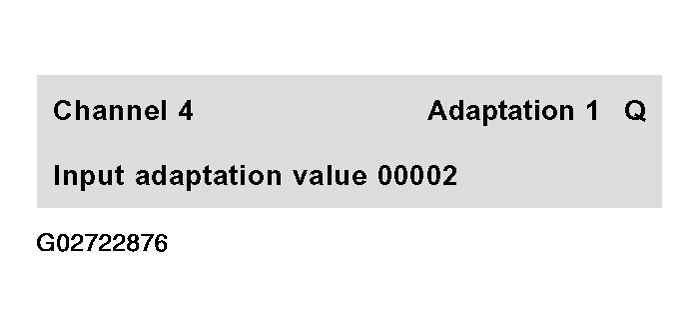

Fig 1: VAG 1551 Scan Tool Display - Adapting Language, Example (1 Of 5)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

Fig 2: VAG 1551 Scan Tool Display - Adapting Language, Example (2 Of 5)

Courtesy of AUDI OF AMERICA, INC.

• Press --> button.

Indicated on display

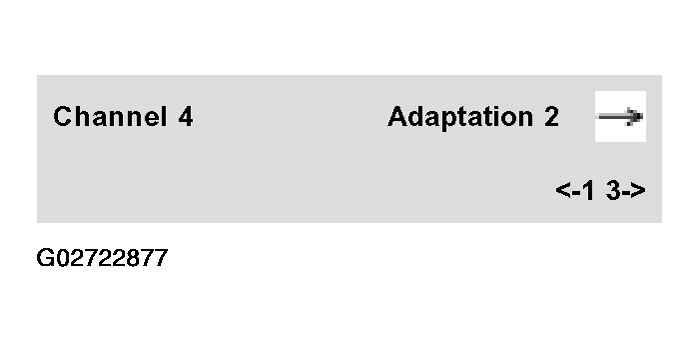

Fig 3: VAG 1551 Scan Tool Display - Adapting Language, Example (3 Of 5)

Courtesy of AUDI OF AMERICA, INC.

• Press -Q- button to confirm input.

Indicated on display

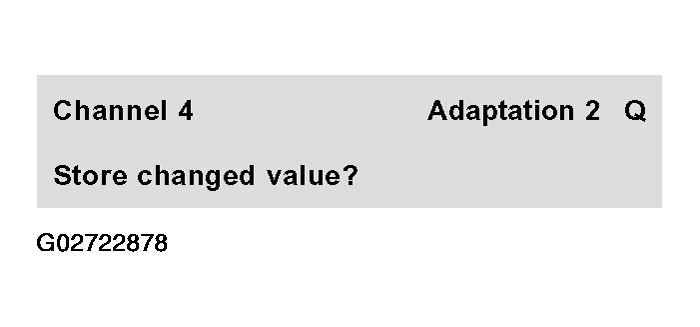

Fig 4: VAG 1551 Scan Tool Display - Adapting Language, Example (4 Of 5)

Courtesy of AUDI OF AMERICA, INC.

• Press --> button to complete language version adaptation.

Indicated on display

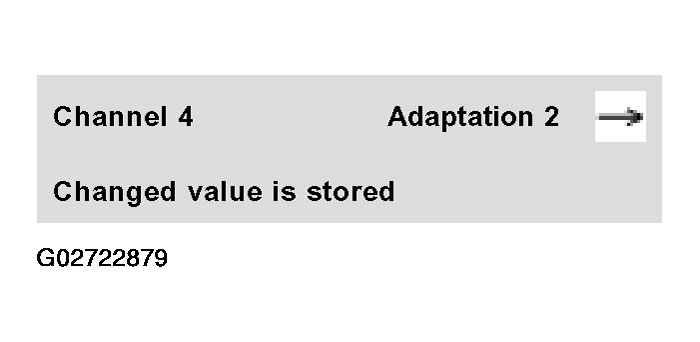

Fig 5: VAG 1551 Scan Tool Display - Adapting Language, Example (5 Of 5)

Courtesy of AUDI OF AMERICA, INC.
