Exploded view: Notes

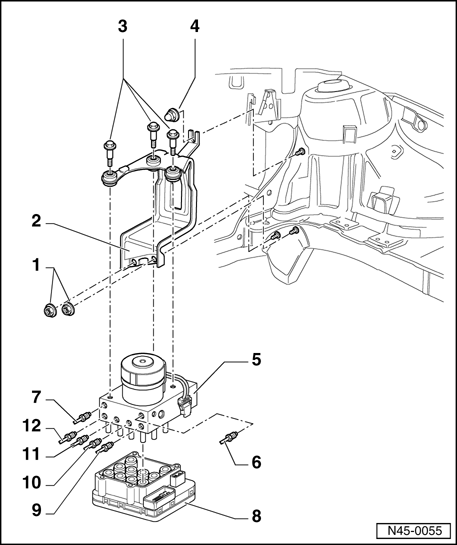

Fig 1: Control Module And Hydraulic Unit Exploded View (ABS/ESP ITT Mark 20)

GW00016038

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Self-locking hex nut, 20 Nm

Self-locking
Replace each time after removing

2 - Bracket

3 - Set bolt, 8 Nm

4 - Cap nut, 20 Nm

5 - ABS hydraulic unit -N55-

Installed position: in engine compartment, left side
Connecting brake lines. See Brake line connections at hydraulic unit

6 - Brake line

Master brake cylinder/secondary piston circuit to hydraulic unit

7 - Brake line

Brake master cylinder/primary piston circuit to hydraulic control unit

8 - ABS Control Module (w/EDL) -J104-

Installed position: in engine compartment, left side
The control module is bolted to the hydraulic unit

9 - Connection for brake line

Hydraulic control unit to left front brake caliper

10 - Connection for brake line

Hydraulic control unit to right rear brake caliper

11 - Connection for brake line

Hydraulic control unit to left rear brake caliper

12 - Connection for brake line

Hydraulic control unit to right front brake caliper

Connection of brake lines from tandem master brake cylinder to hydraulic unit
