Multi-function steering wheel through m.y. 2001, layout
NOTE:

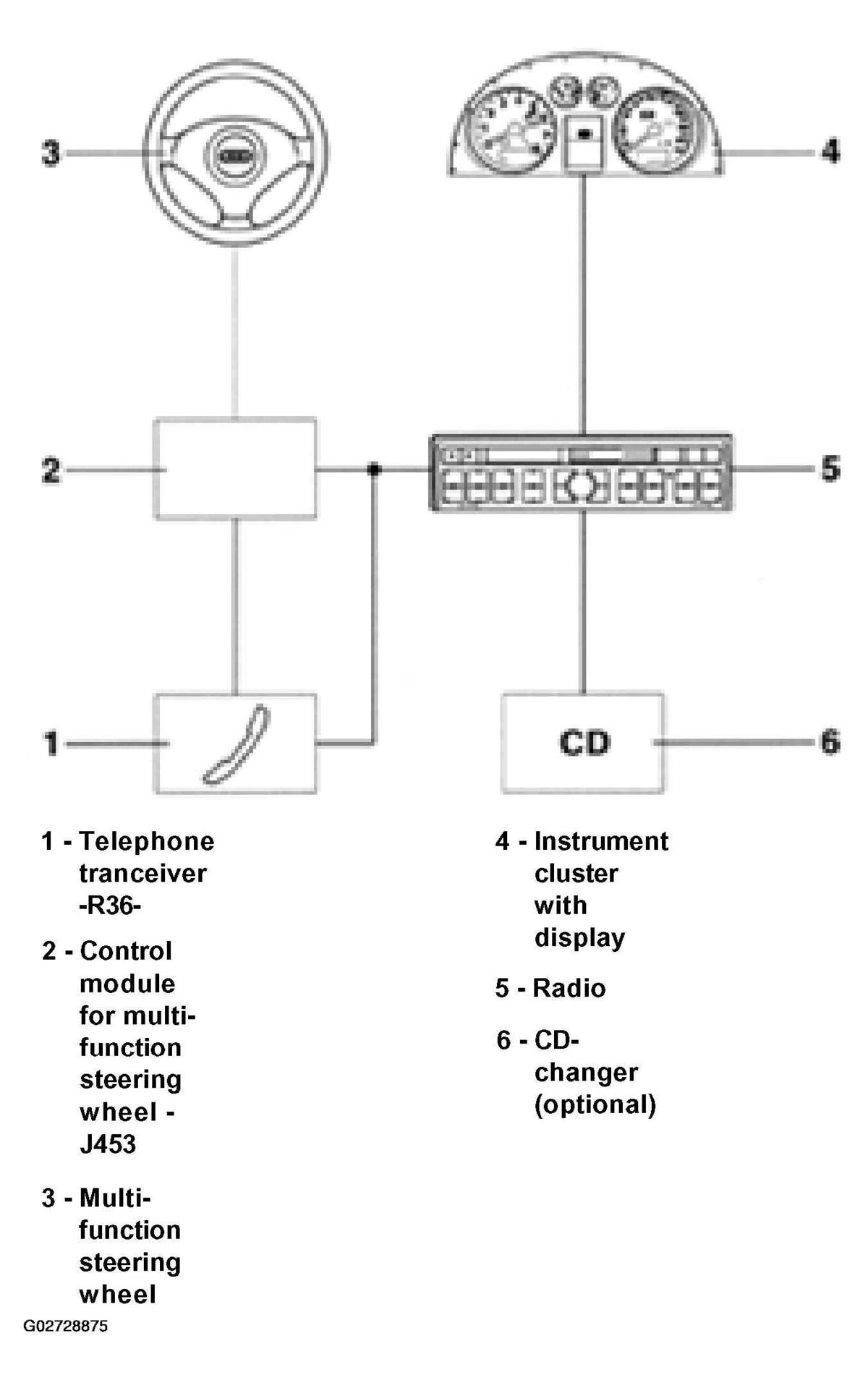

The following list refers to items in Fig 1
.
- Telephone transceiver -R36-
- In left rear luggage compartment storage box
- Control module for multi-function steering wheel -J453
- at relay carrier below driver's side storage compartment
- Removing and installing. See CONTROL MODULE FOR MULTI-FUNCTION STEERING WHEEL -J453-, REMOVING AND INSTALLING .
- Multi-function steering wheel
- with integrated operation switches
- with steering wheel-integrated electronics
- Removing and installing operating switch. See MULTI-FUNCTION STEERING WHEEL SWITCHES/BUTTONS, REMOVING AND INSTALLING .
- Instrument cluster with display
- In instrument panel
- Radio
- In center instrument panel
- CD-changer (optional)
- In left rear luggage compartment storage box
