Diagnostic Functions

For diagnostic functions and testing parameters, see Fig 1.

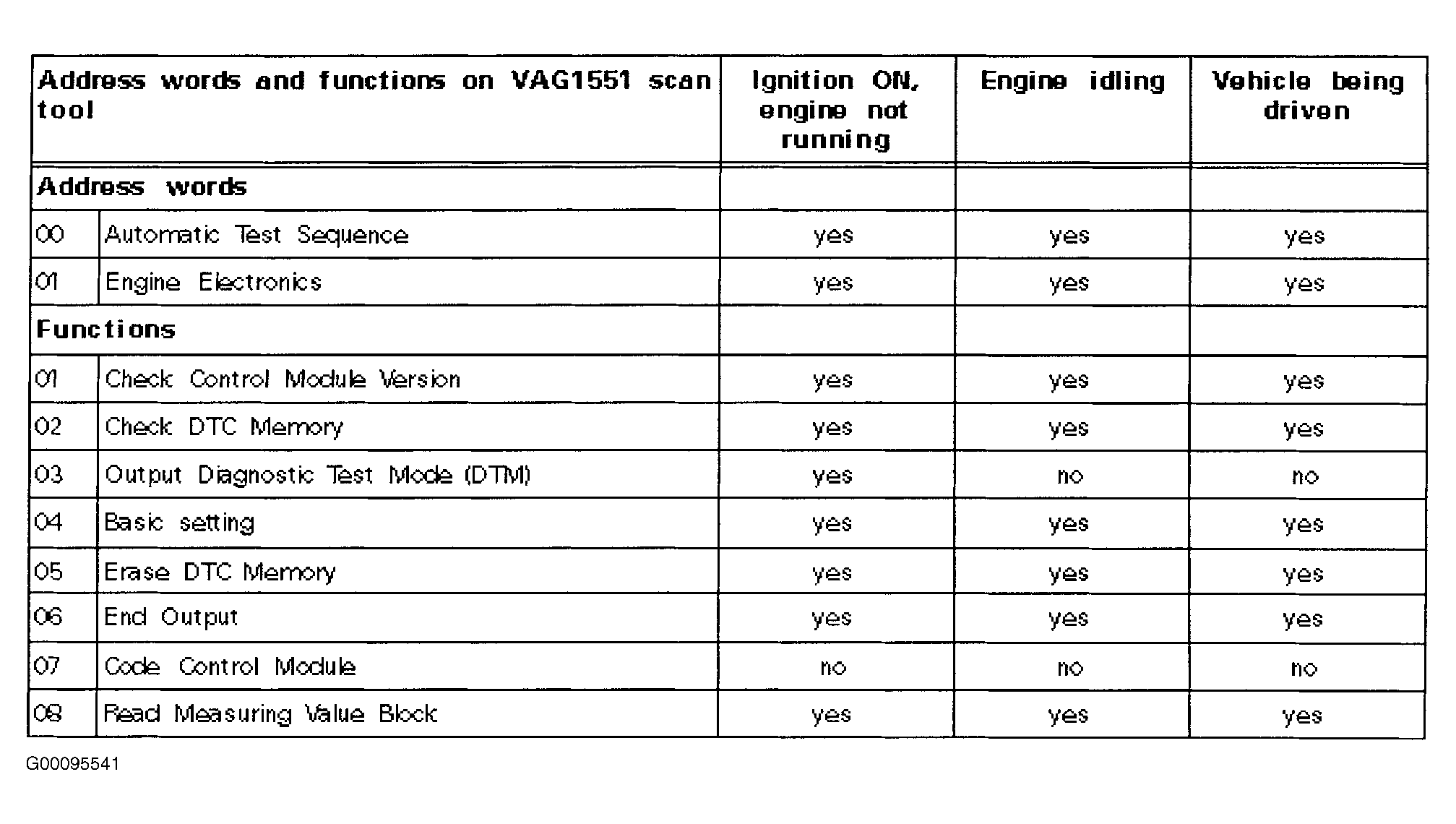

Fig 1: Identifying Scan Tool Functions
G00095541Courtesy of AUDI OF AMERICA, INC.
