Shift Mechanism: Notes

To identify shifter mechanism components. See Fig 1 and Fig 2 .

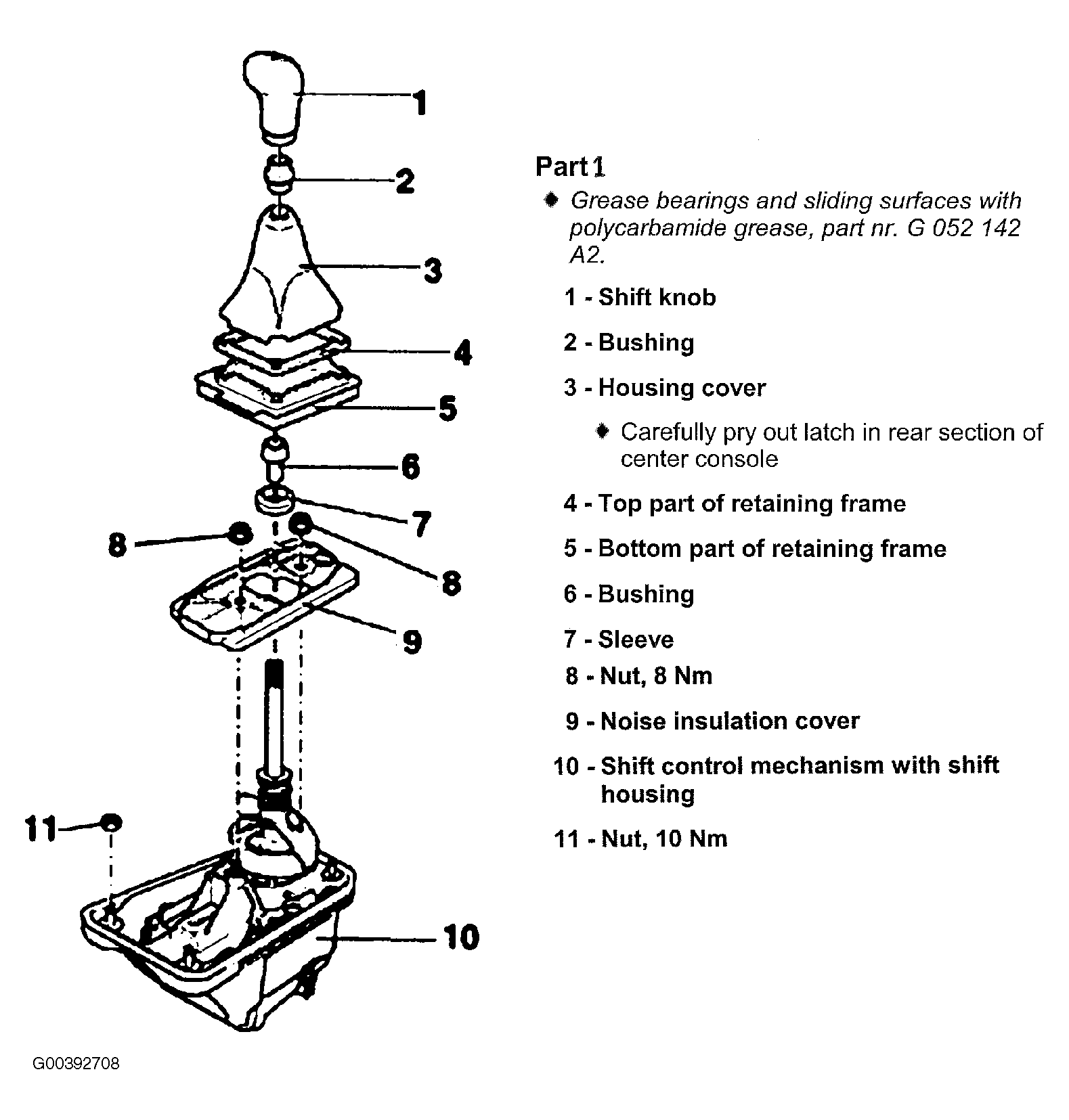

Fig 1: Identifying Shifter Mechanism Components (Part 1)

Courtesy of AUDI OF AMERICA, INC.

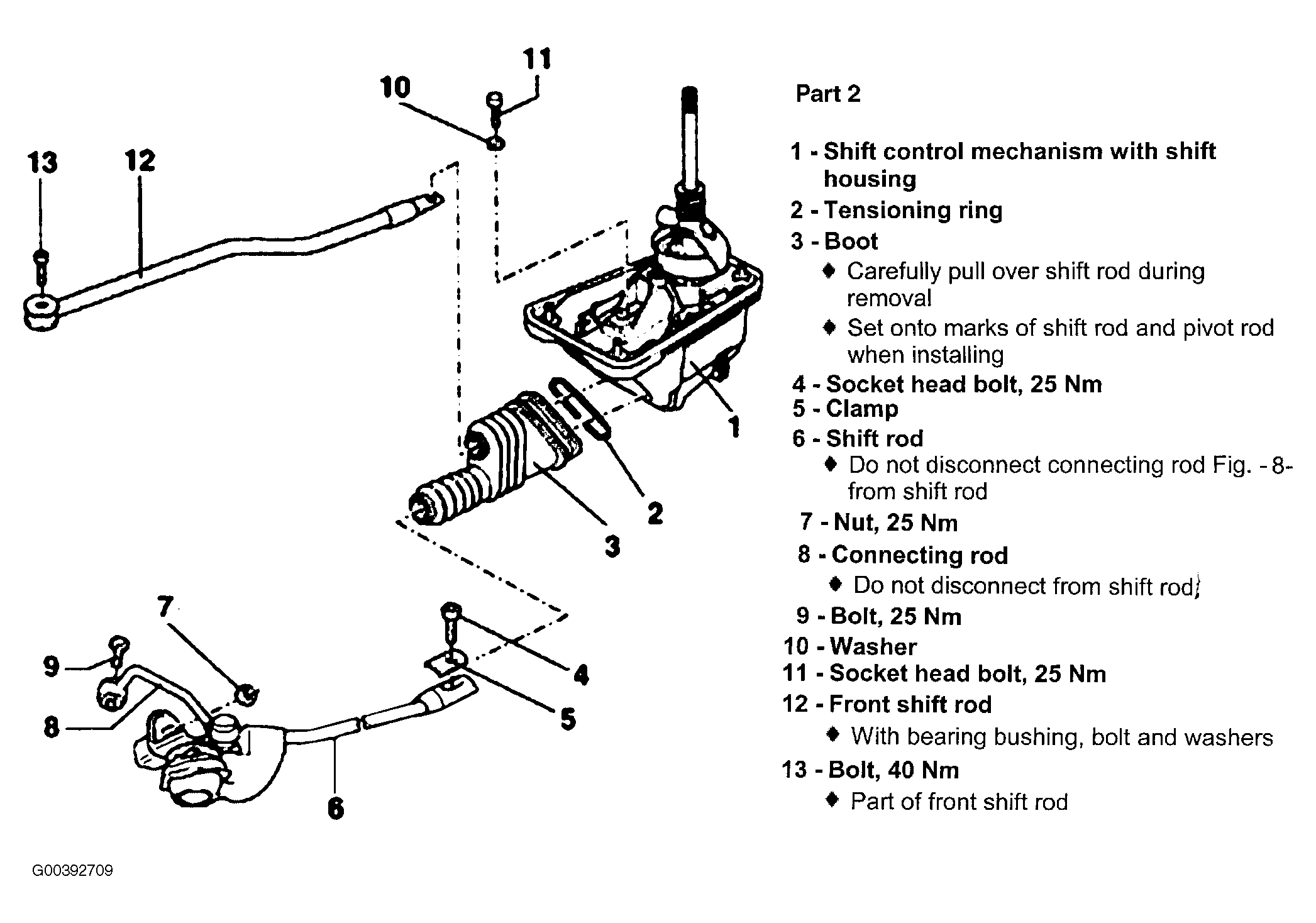

Fig 2: Identifying Shifter Mechanism Components (Part 2)

Courtesy of AUDI OF AMERICA, INC.

NOTE: Lubricate all mountings and sliding surfaces with Polyurea grease (G 052 142 A2).
