Section 6 (Servicing - M/T (01E))
>>
Torque Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Torque Specifications
WARNING:
This page is about a different variant/trim than selected.

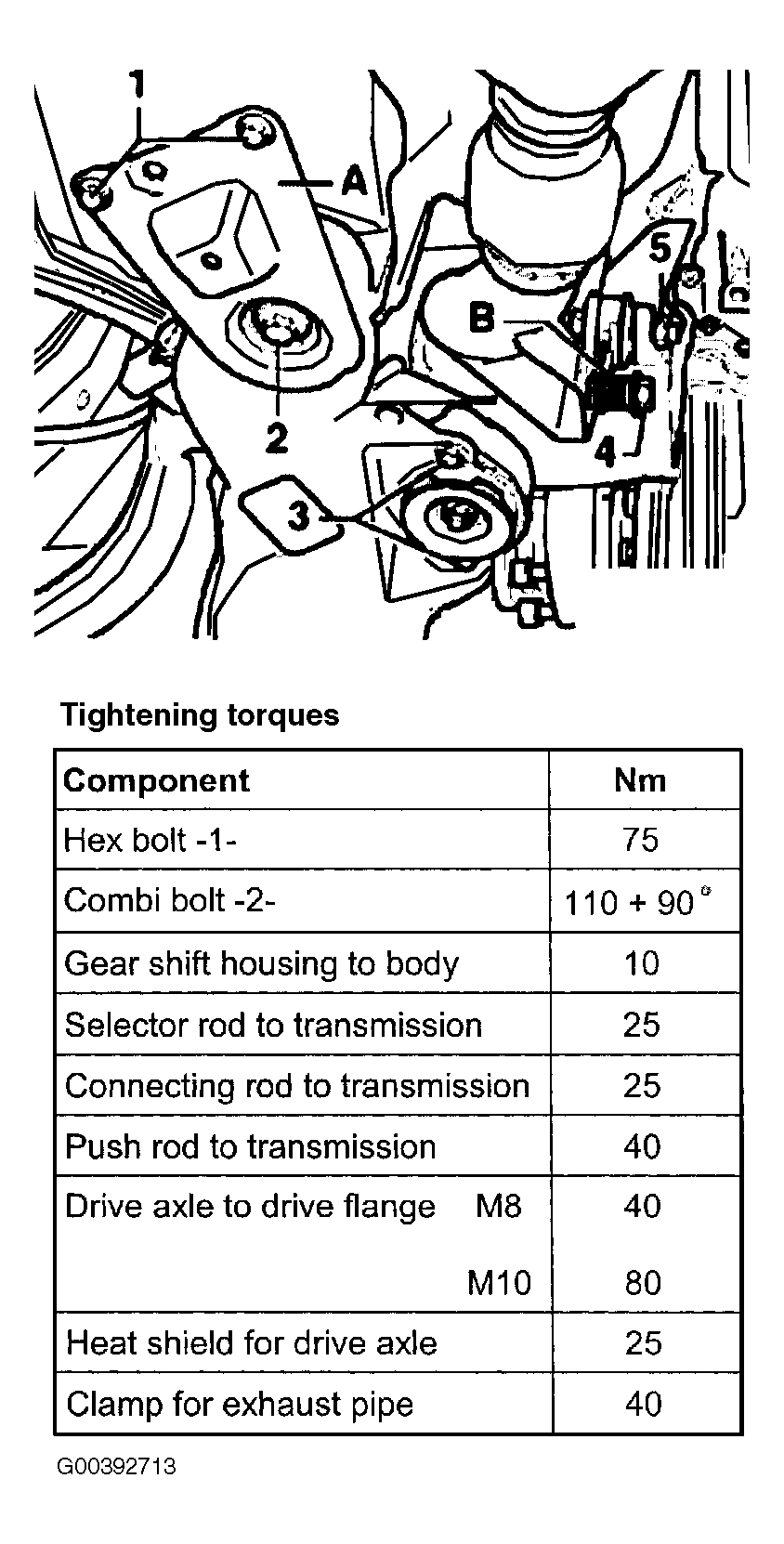

Fig 1: Shifter Mechanism Replacement Components & Subframe-To-Body Torque Specifications
Courtesy of AUDI OF AMERICA, INC.

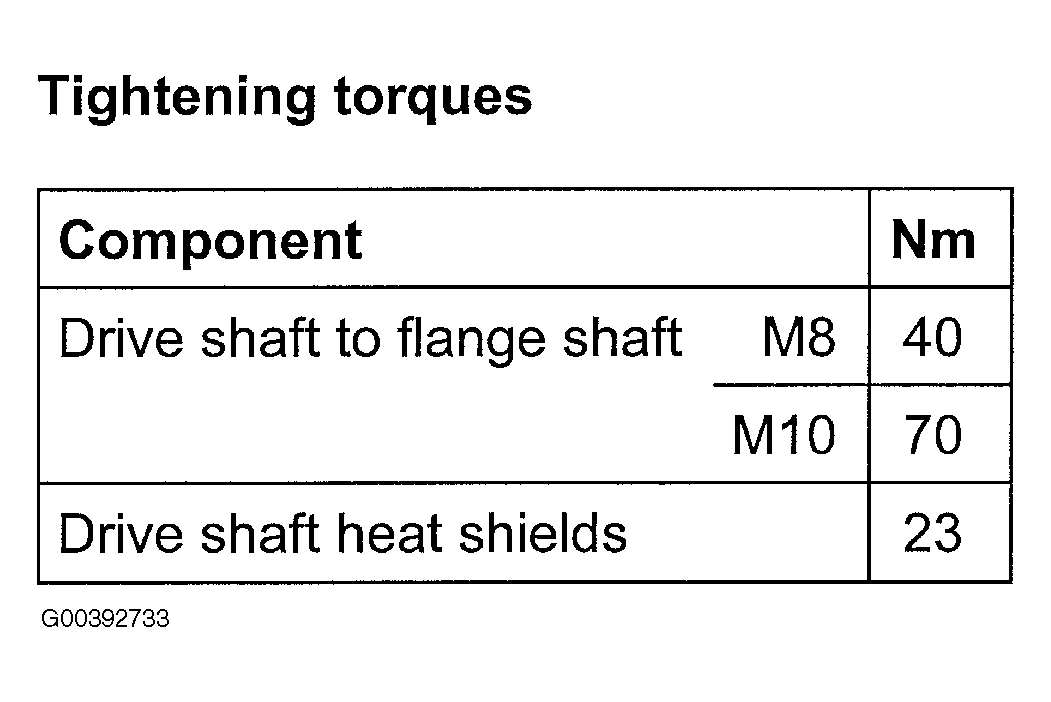

Fig 2: Drive Axle Flange To Transmission & Heat Shield Torque Specifications
Courtesy of AUDI OF AMERICA, INC.
