Steering angle sensor -G85-, removing and installing: Installing

Steering angle sensor -G85- must be in center position before installation.

• Position steering angle sensor until tabs engage.
• Remove transport protection.
• A yellow dot must be visible in the hole (arrow -1-). See Fig 1 .
• Markings (arrows) must also be flush.

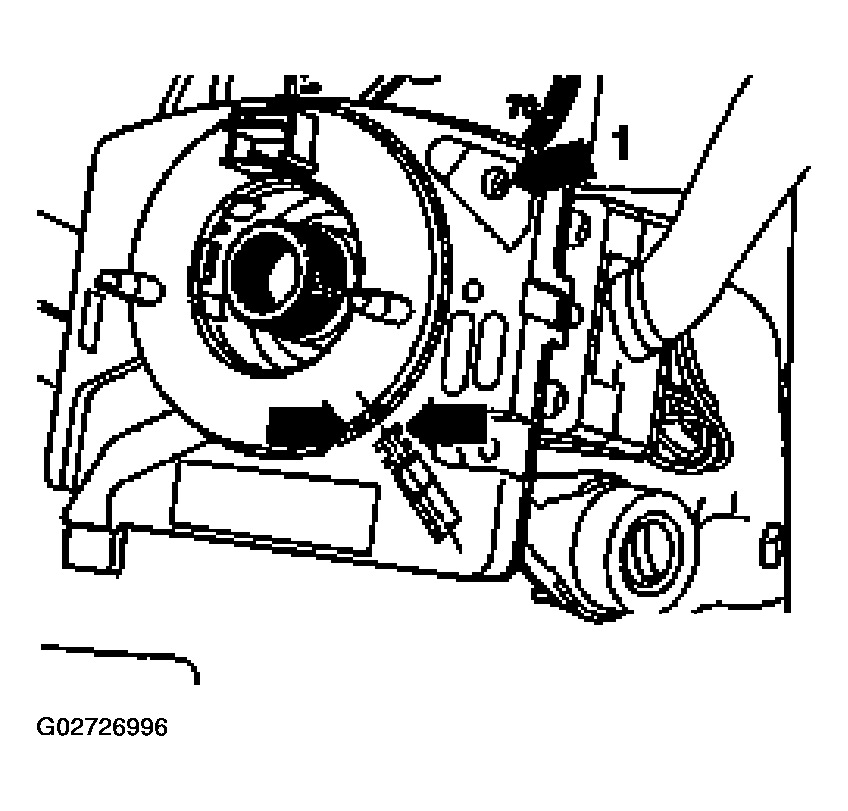

  Fig 1: Identifying Marking

  Courtesy of AUDI OF AMERICA, INC.
