On Board Diagnostic (OBD): Abs/EDL/ASR DTCS

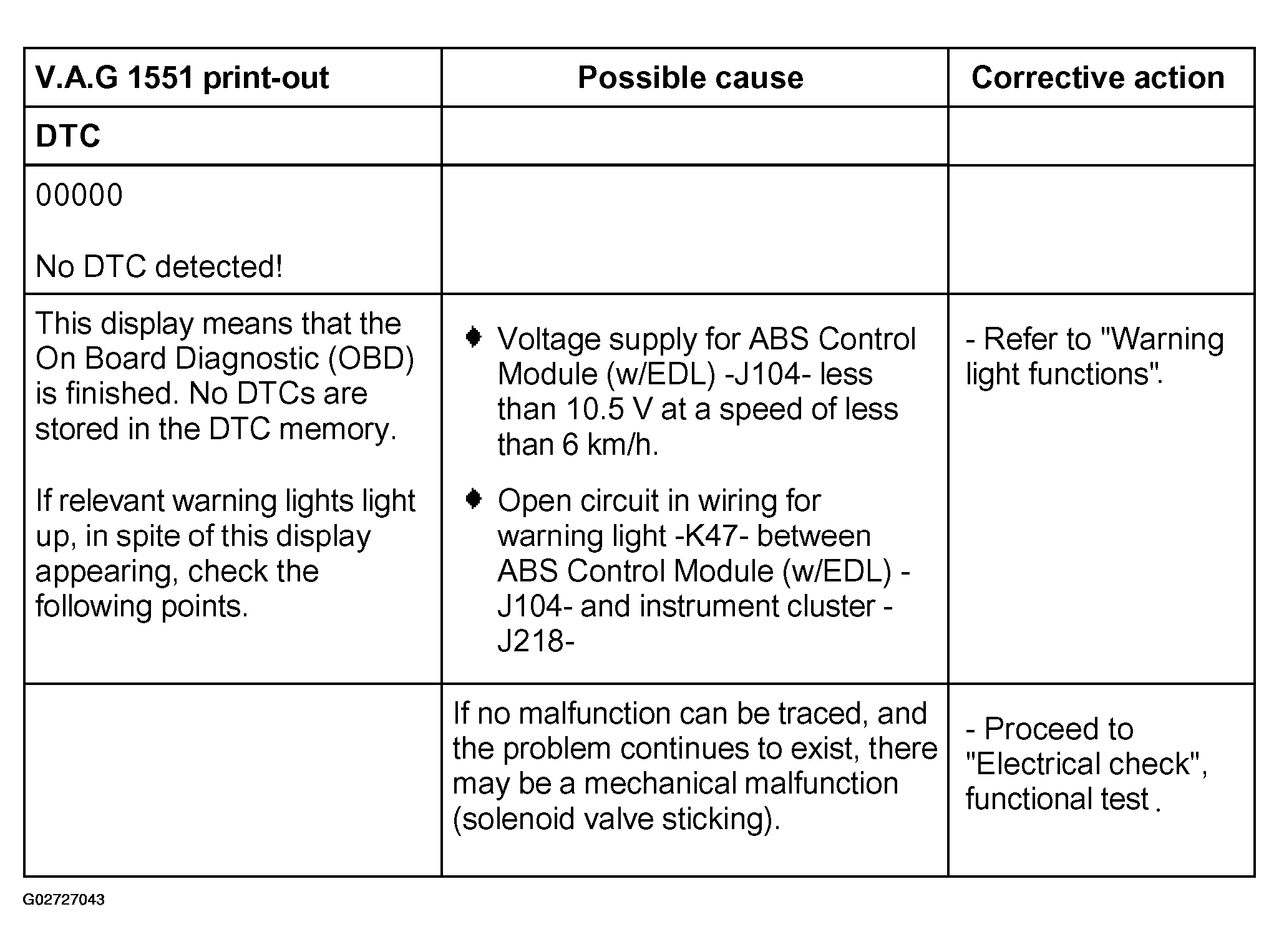

Fig 1: DTC 0000 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

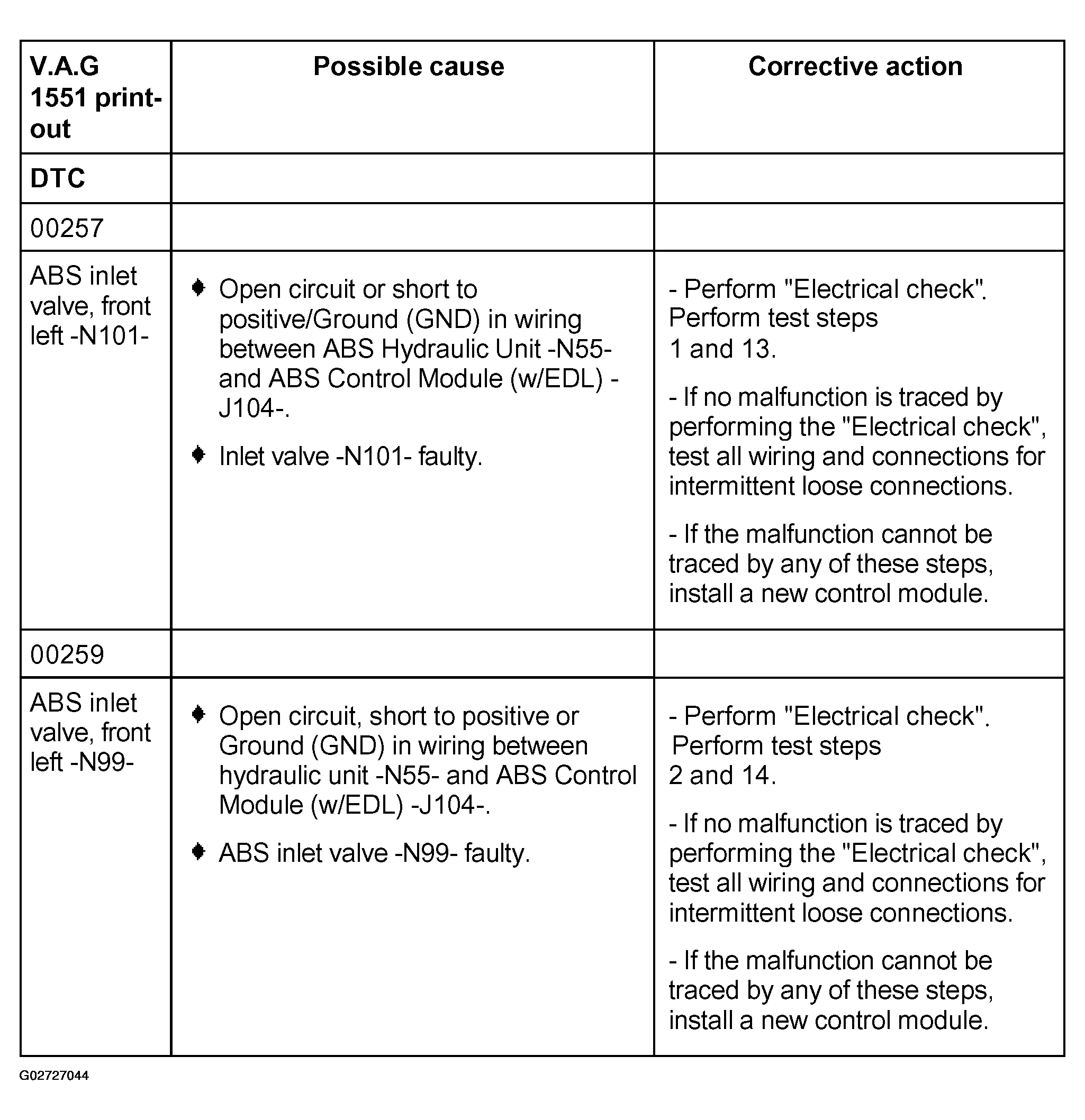

Fig 2: DTC 00257 & 00259 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

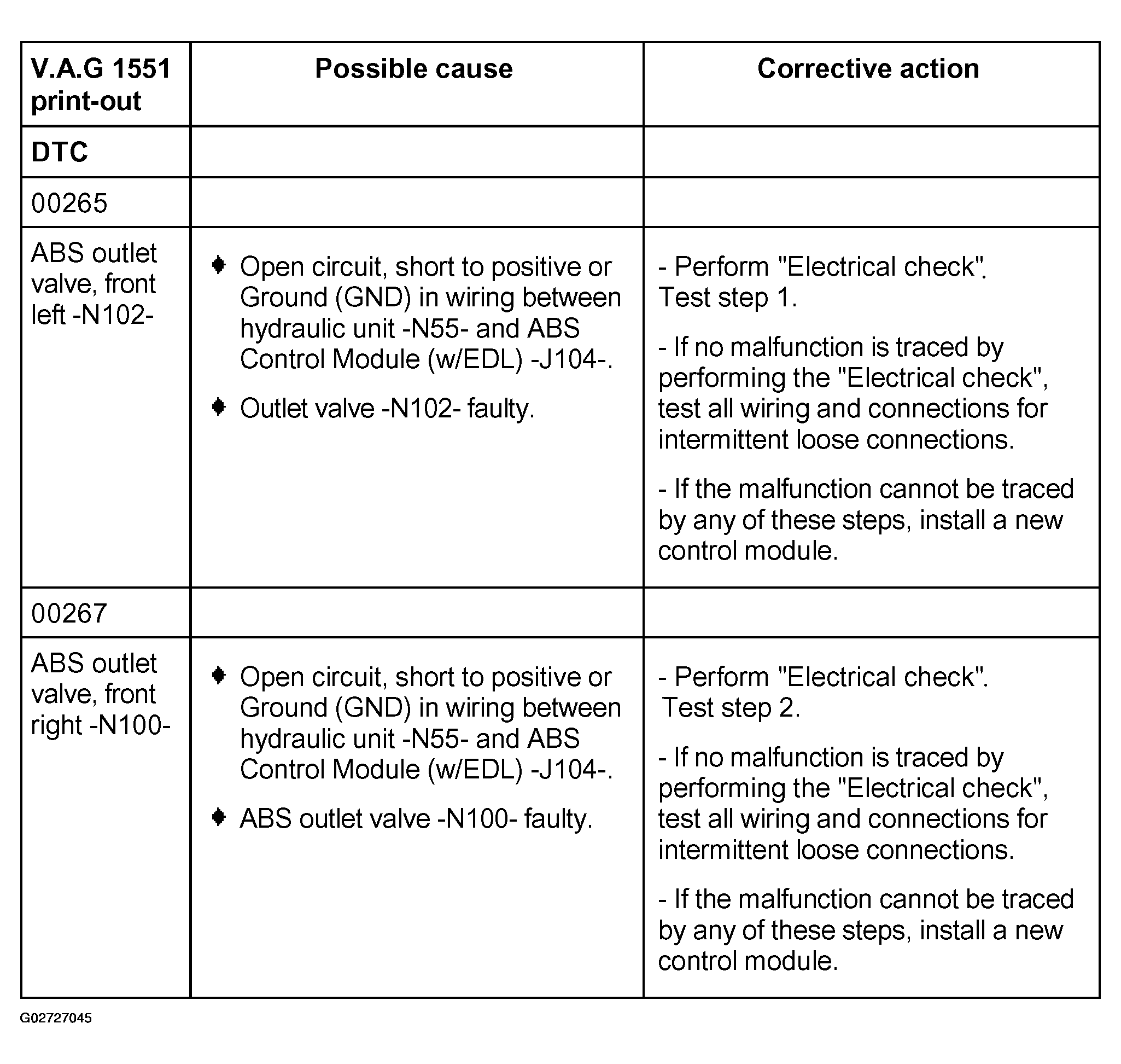

Fig 3: DTC 00265 & 00267 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

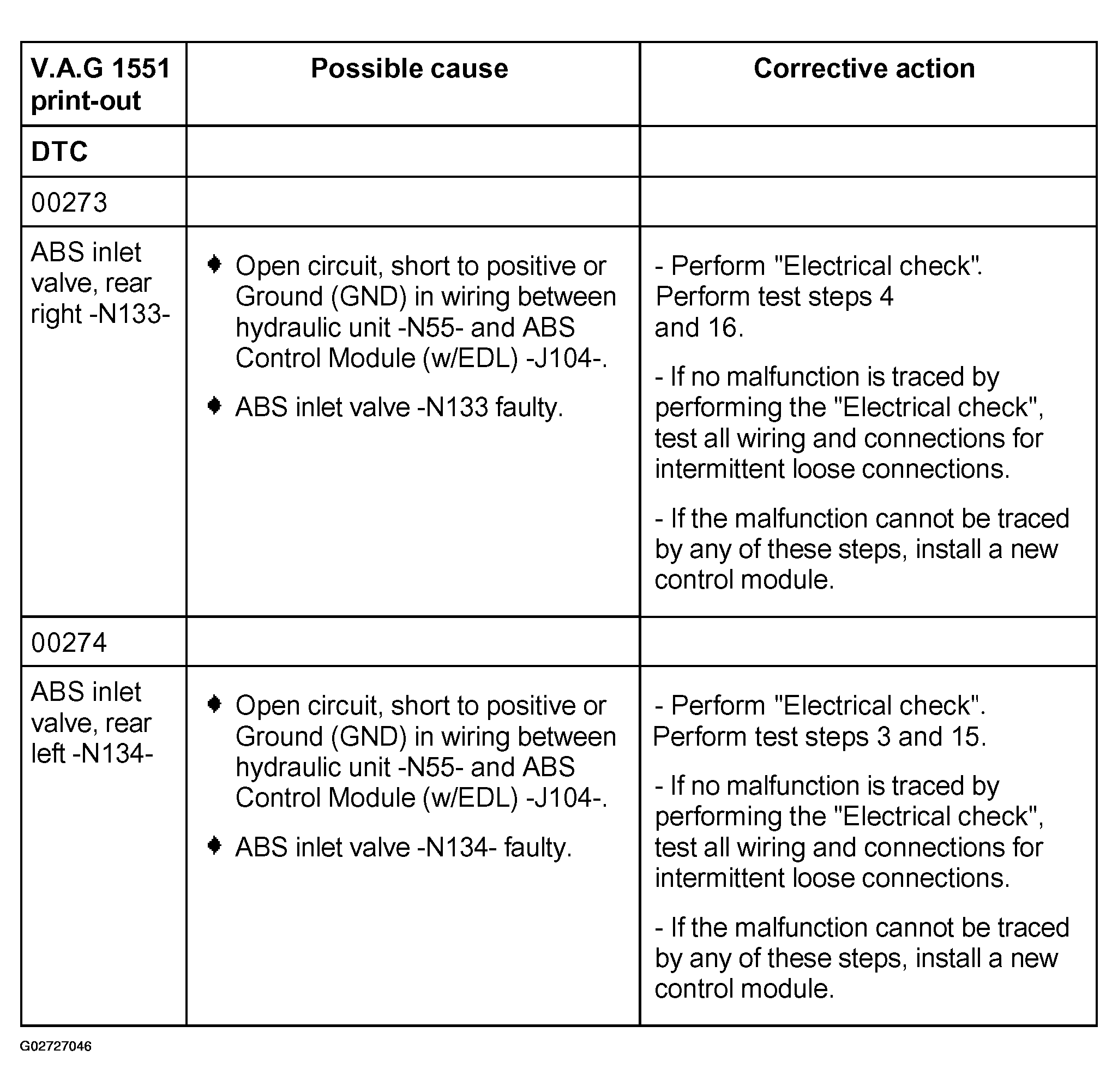

Fig 4: DTC 00273 & 00274 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.
Fig 5: DTC 00275 & 00276 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

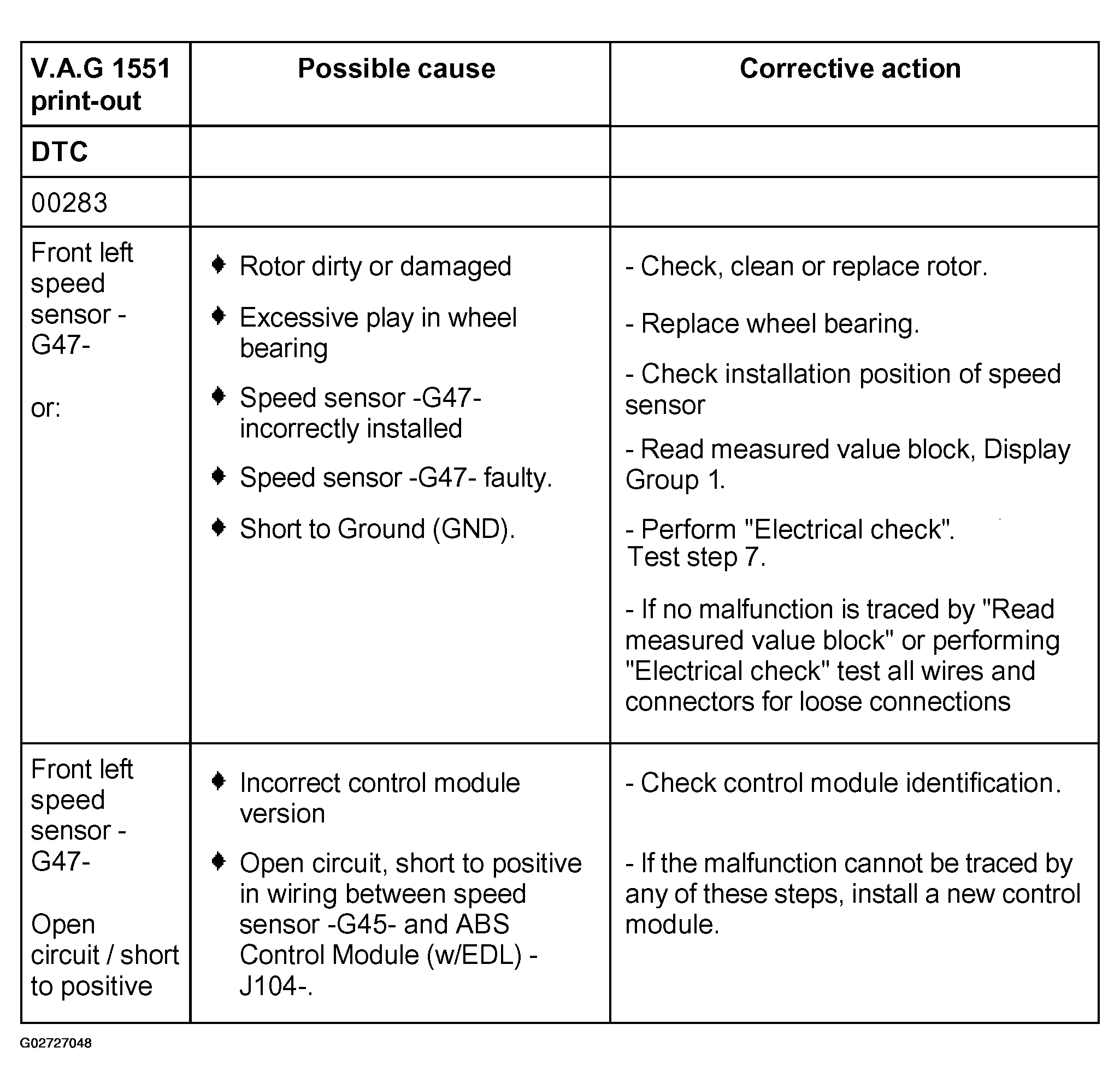

Fig 6: DTC 00283 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

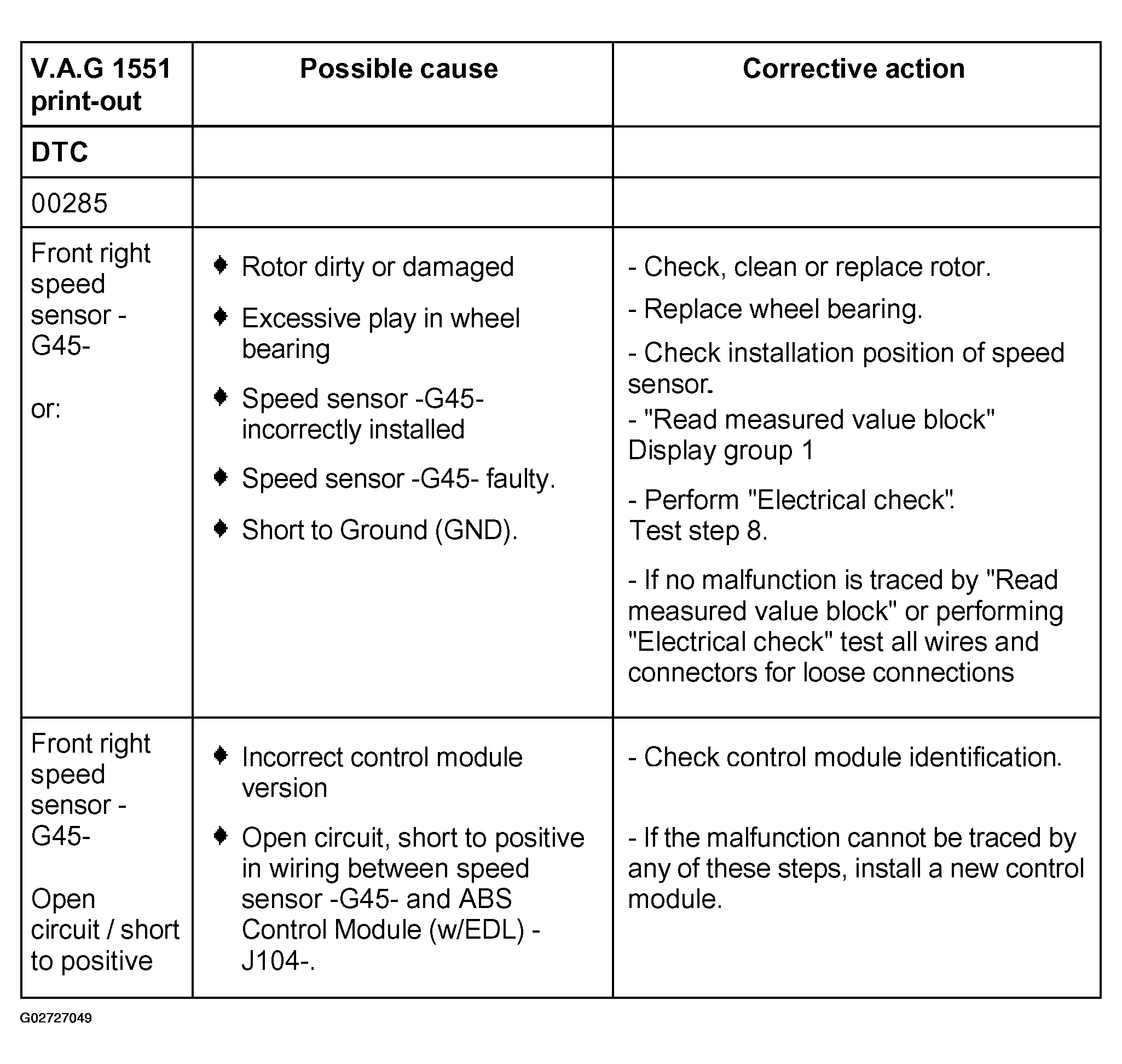

Fig 7: DTC 00285 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

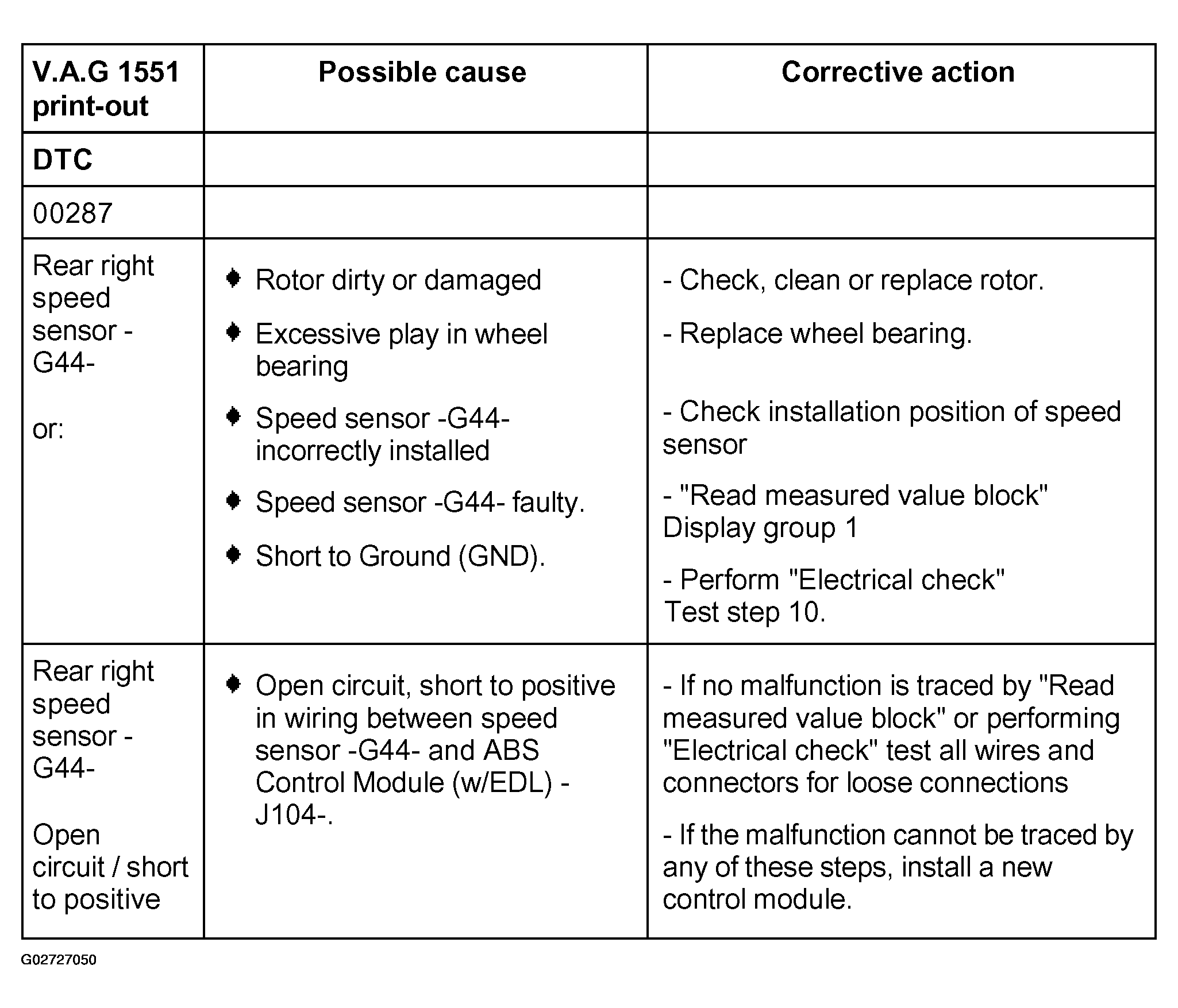

Fig 8: DTC 00287 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

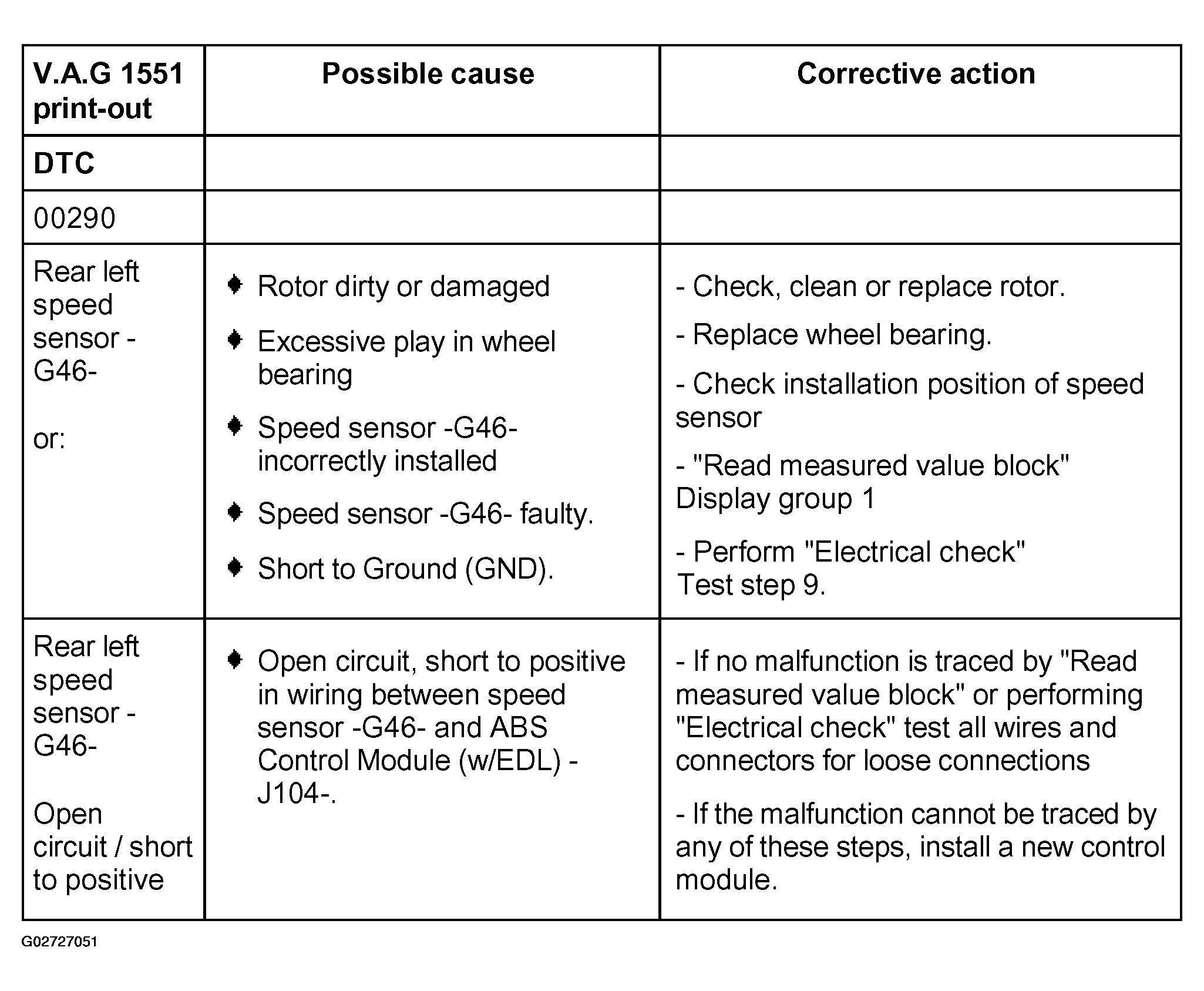

Fig 9: DTC 00290 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

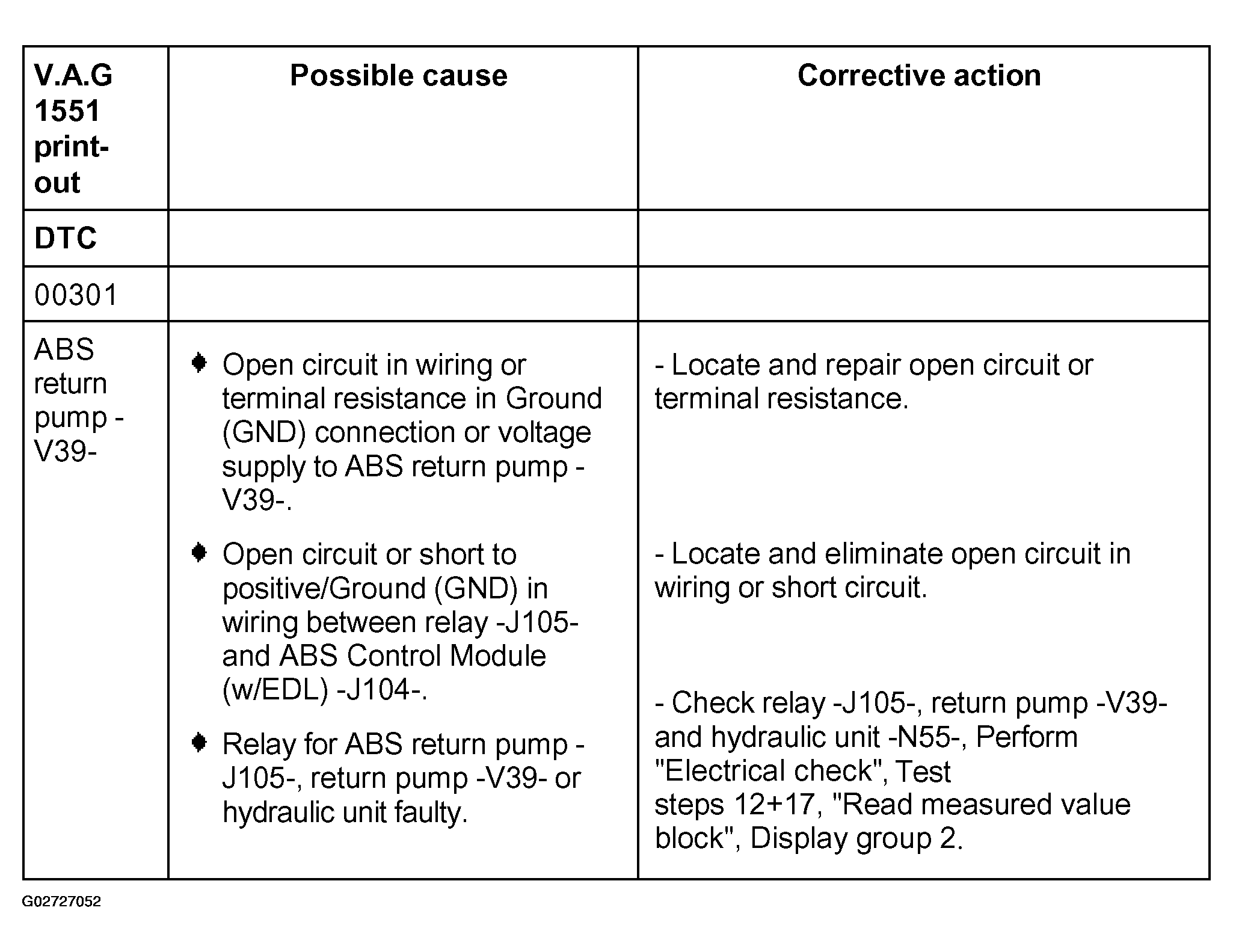

Fig 10: DTC 00301 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

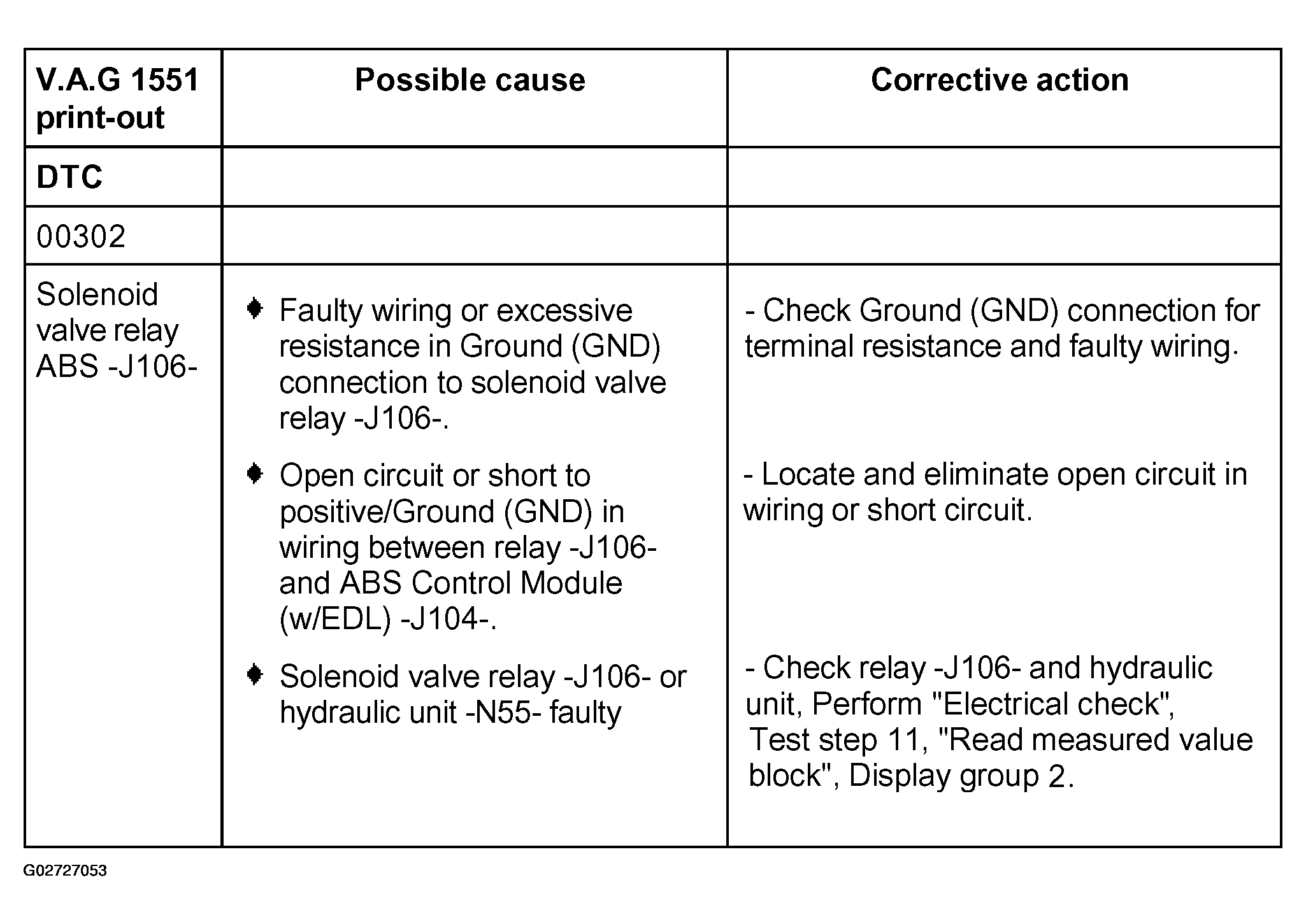

Fig 11: DTC 00302 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

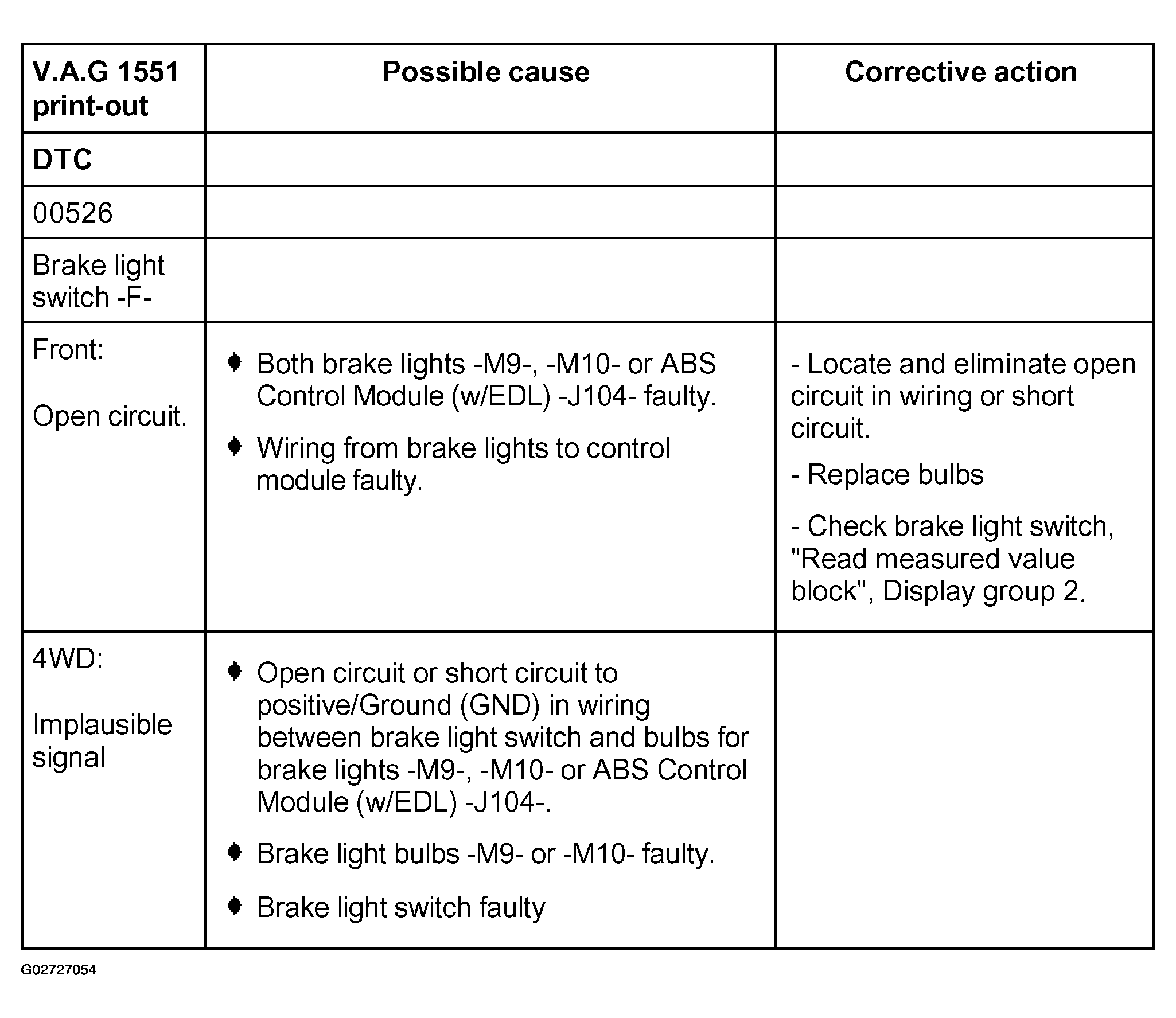

Fig 12: DTC 00526 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

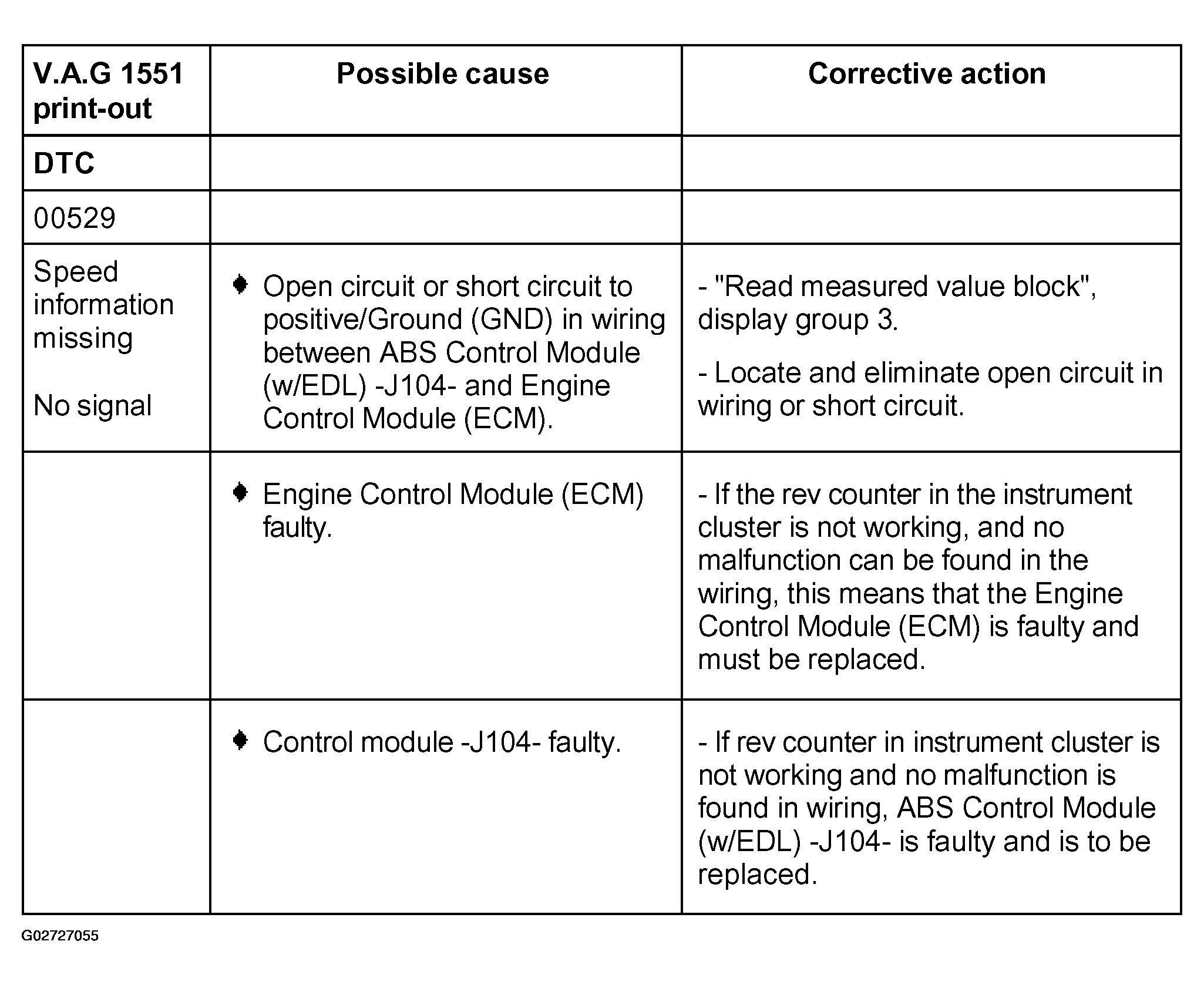

Fig 13: DTC 00529 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

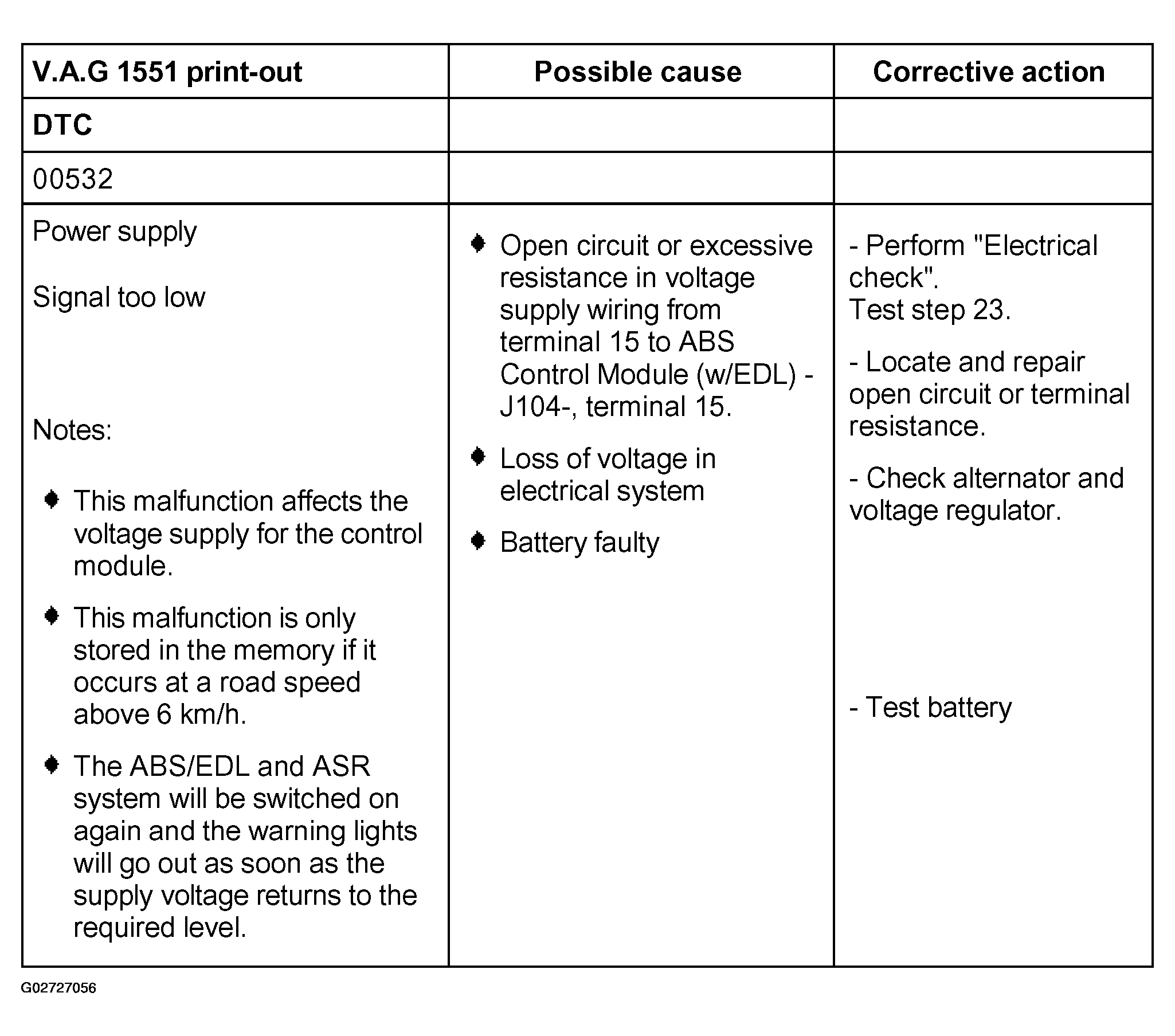

Fig 14: DTC 00532 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

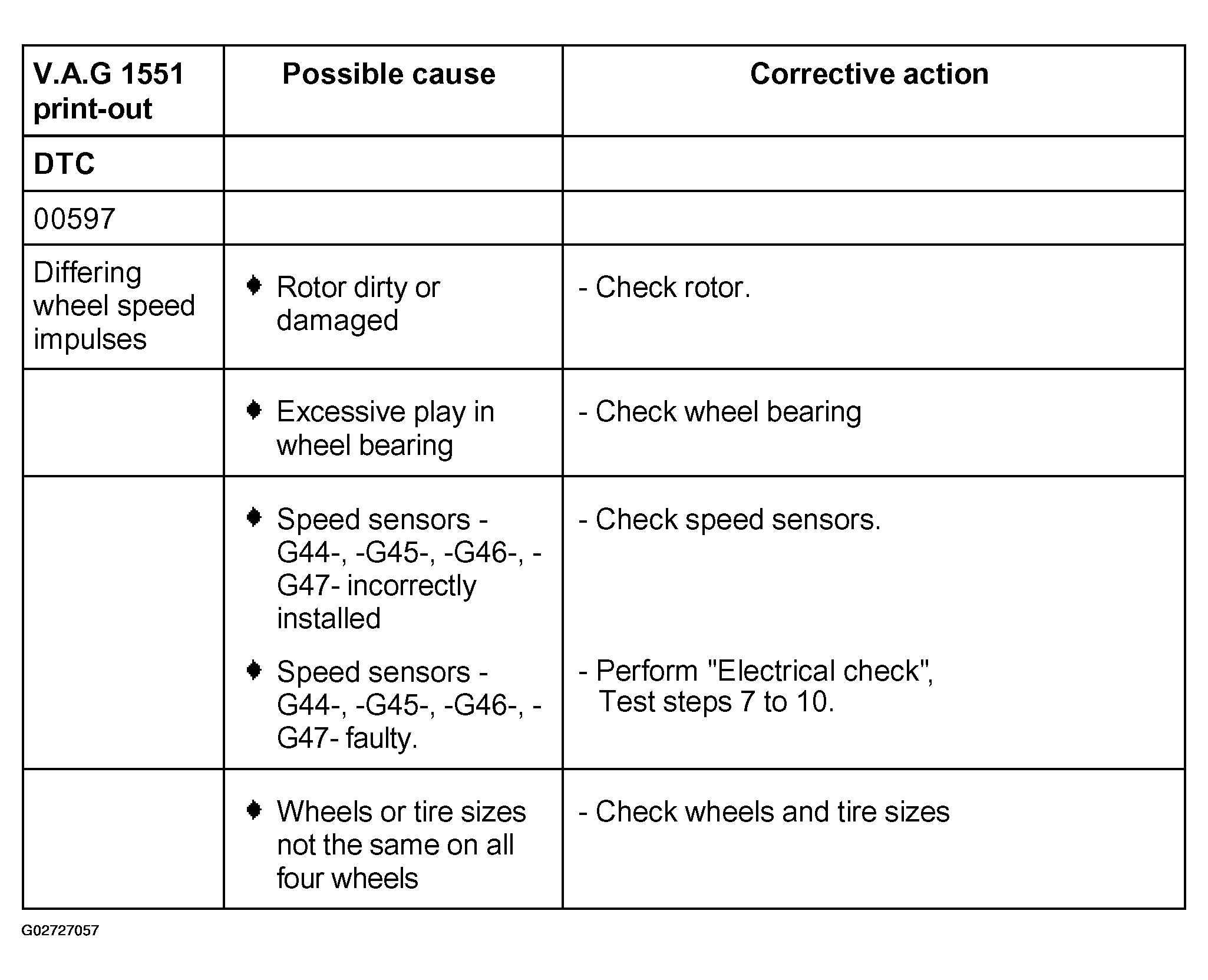

Fig 15: DTC 00597 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

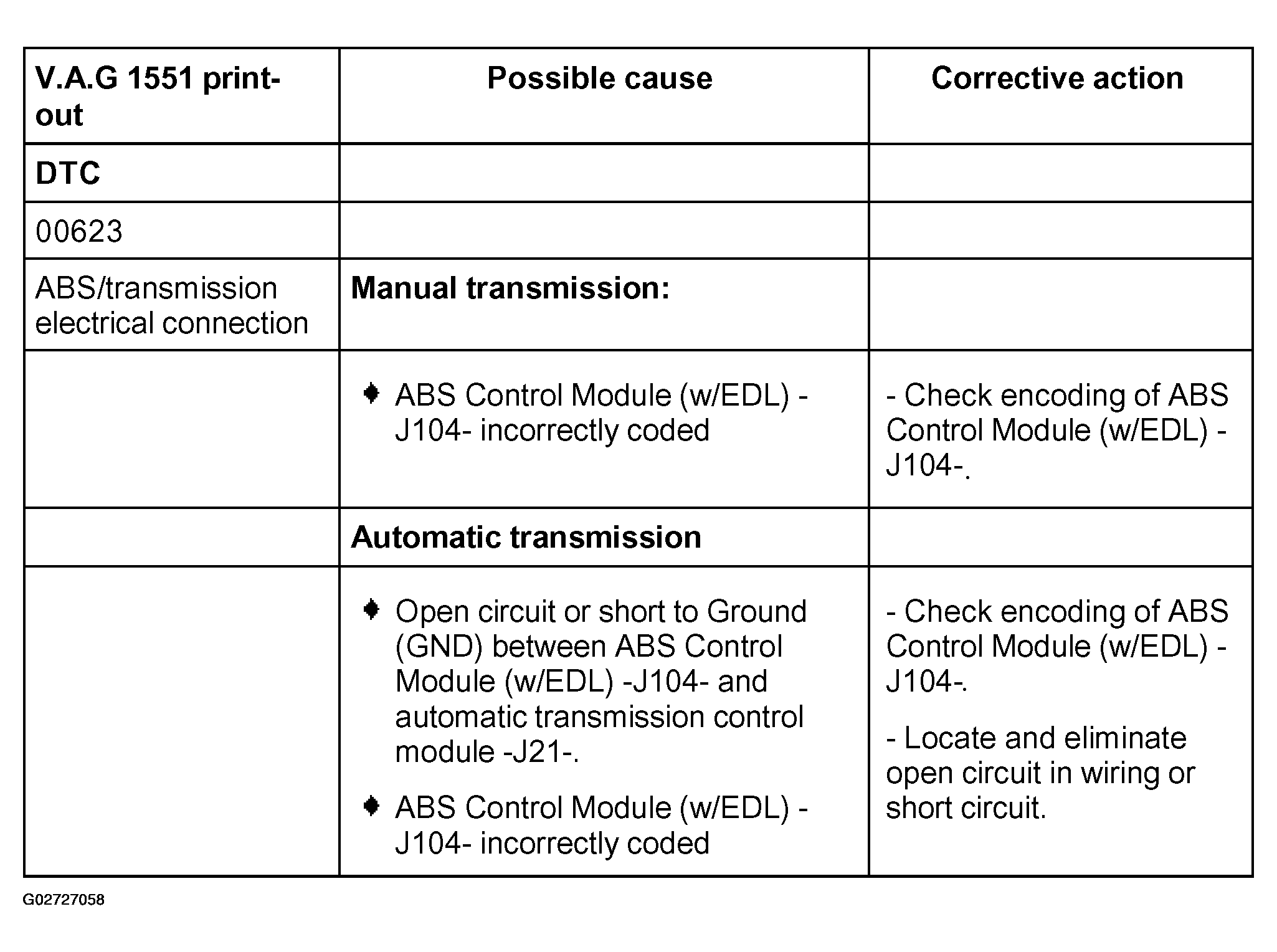

Fig 16: DTC 00623 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.
Fig 17: DTC 00642 & 00643 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

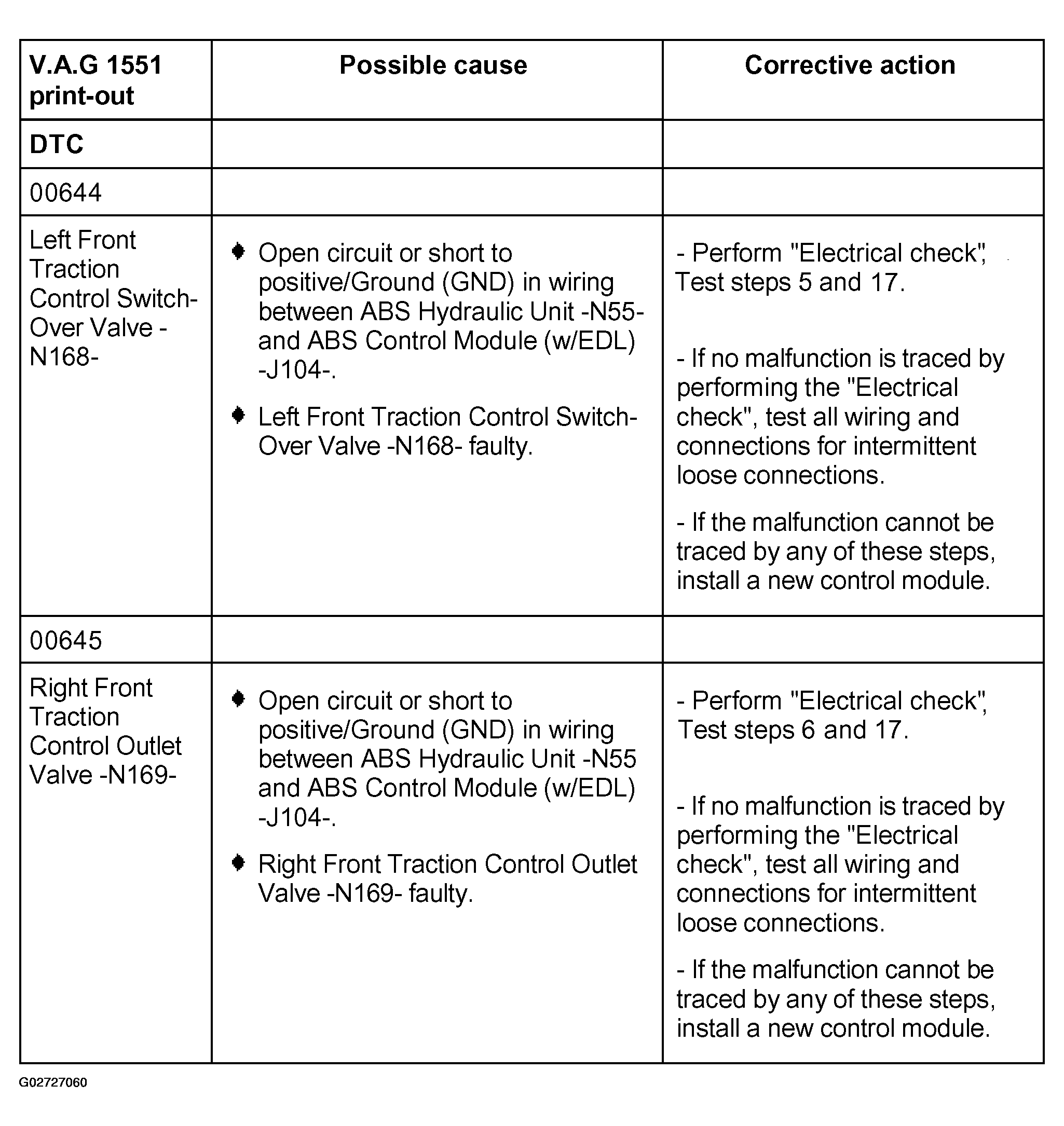

Fig 18: DTC 00644 & 00645 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

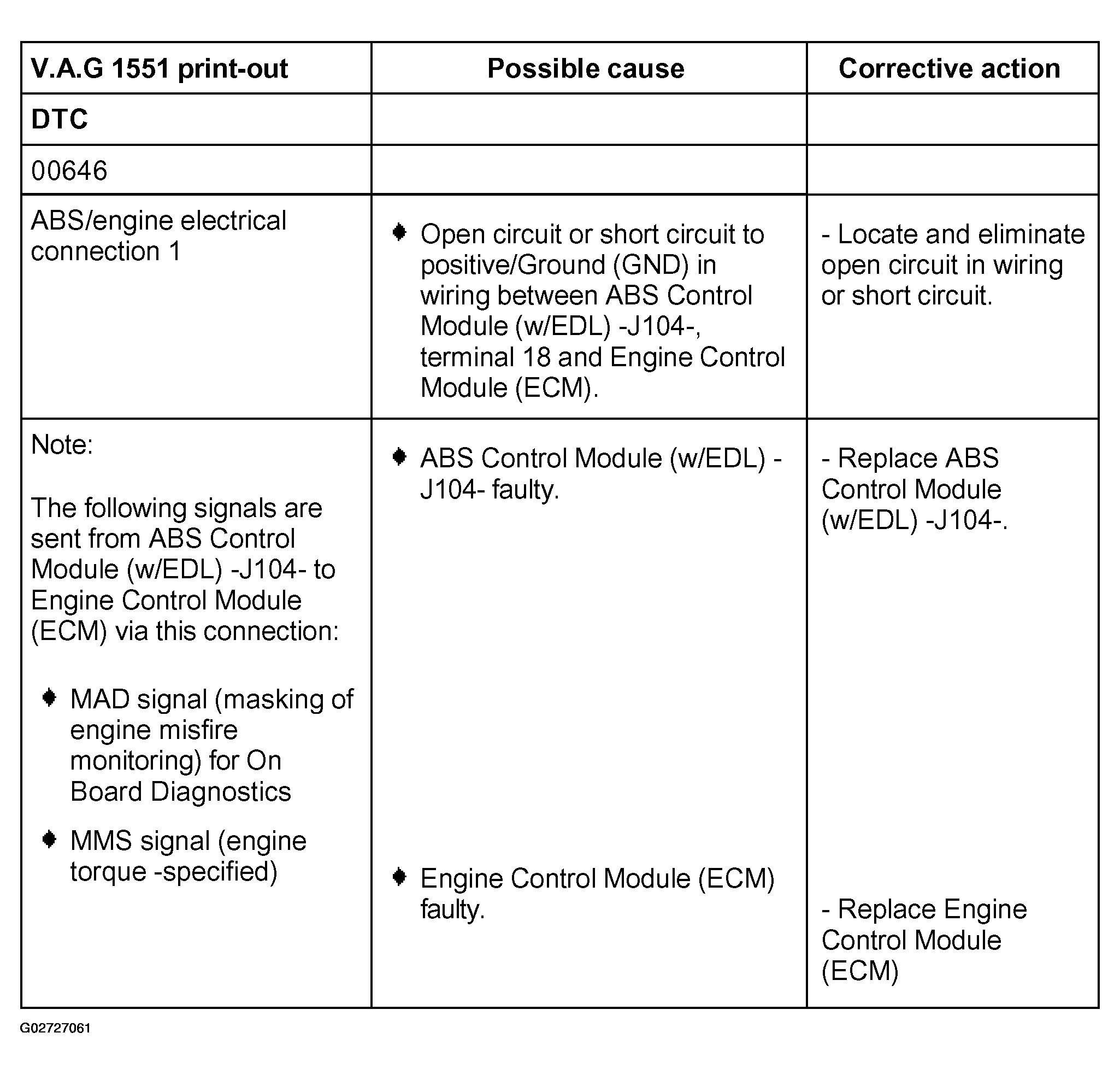

Fig 19: DTC 00646 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

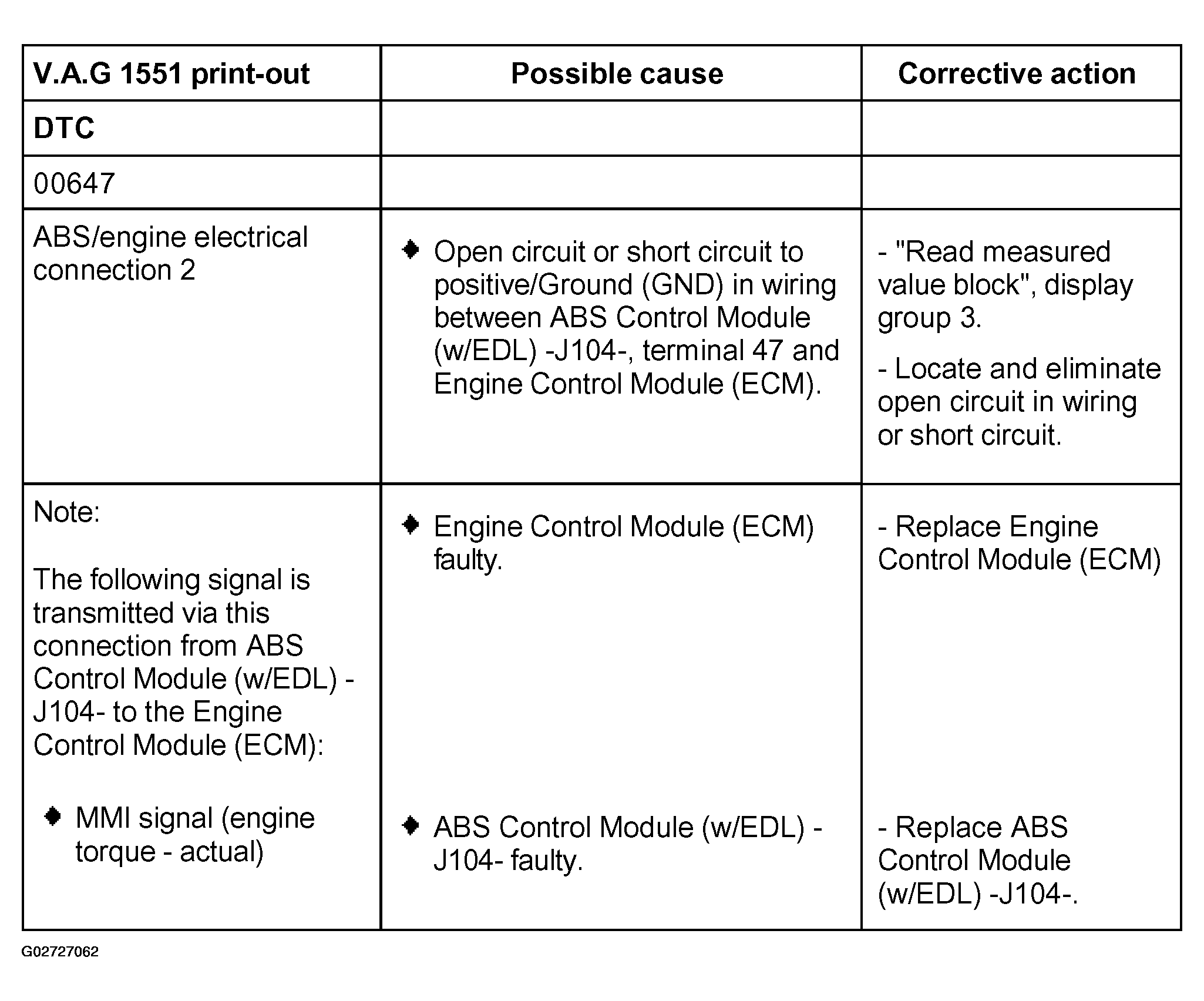

Fig 20: DTC 00647 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

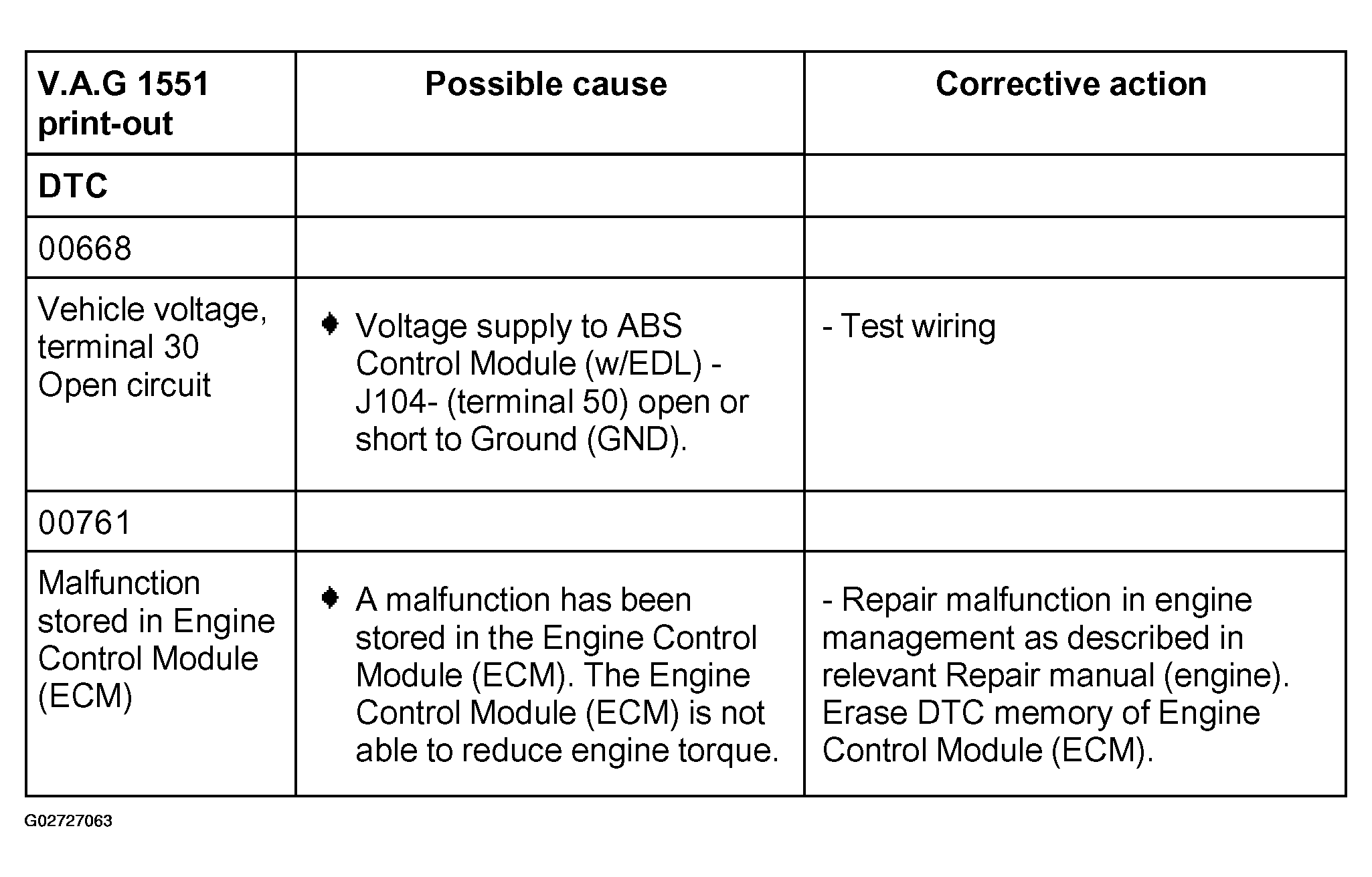

Fig 21: DTC 00668 & 00761 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.

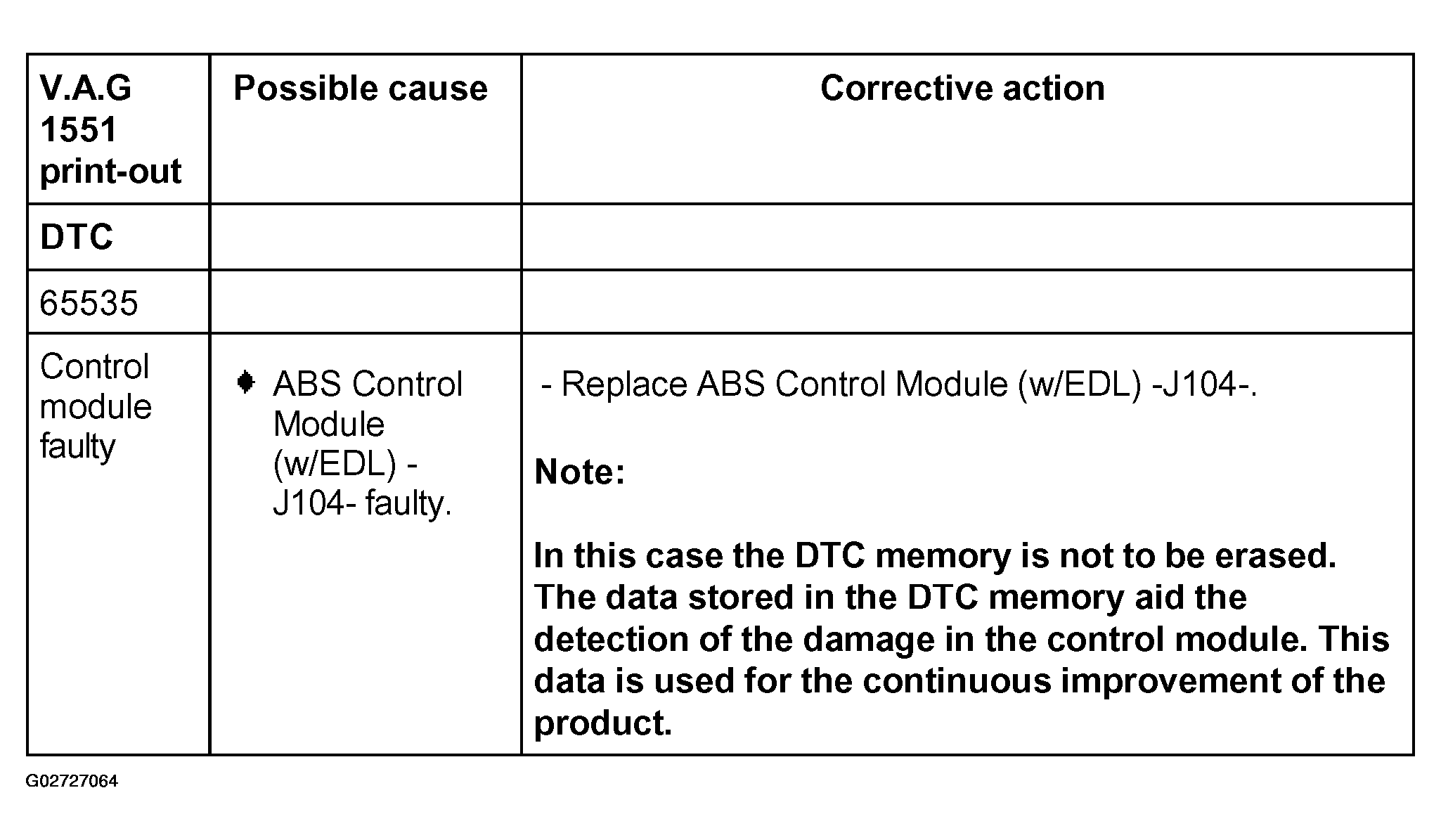

Fig 22: DTC 665535 - Bosch 5.0
Courtesy of AUDI OF AMERICA, INC.
