Gear Selector Solenoid

Move gear selector to "R" position. Remove screws, and raise top of gear selector housing. Ensure gap between gear selector and gear selector solenoid is .04" (1.0 mm). See Fig 1 . If necessary, loosen mounting screws and adjust. DO NOT install top of gear selector housing at this time.

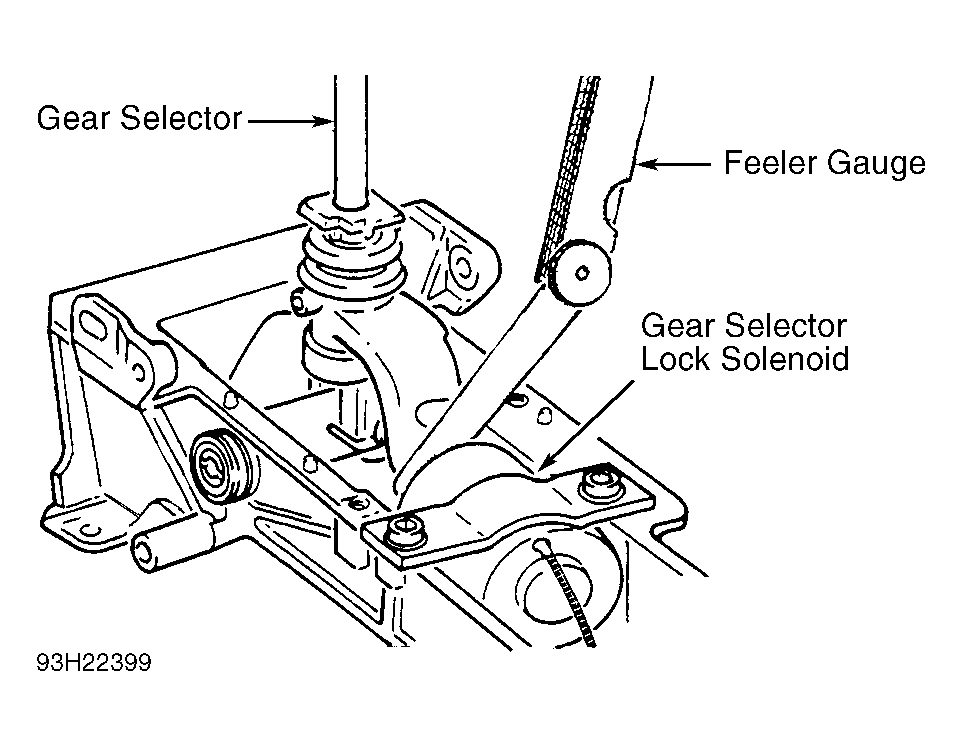

Fig 1: Adjusting Gear Selector Solenoid

Courtesy of AUDI OF AMERICA, INC.
