Throttle Position Sensor: Locations

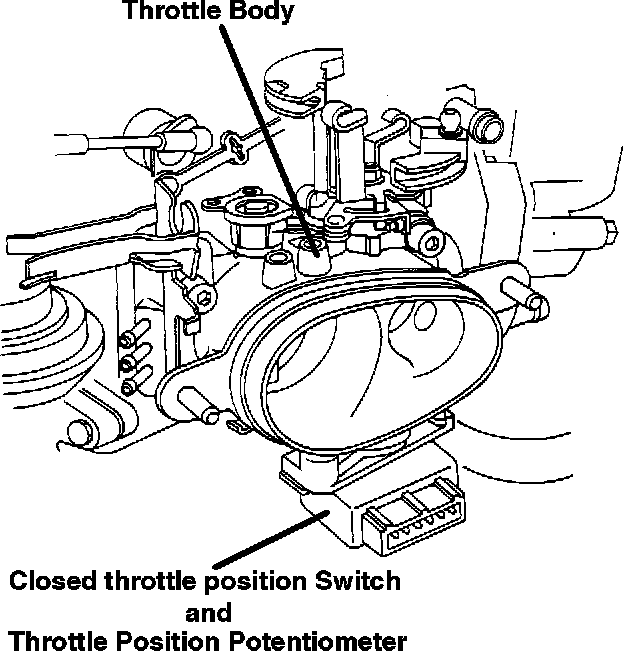

Throttle Body:

The Throttle Position Sensor (TPS) and Closed Throttle Position (CTP) switch are in one housing. The housing is located on the bottom of the throttle valve housing.
