Knock Sensor: Locations

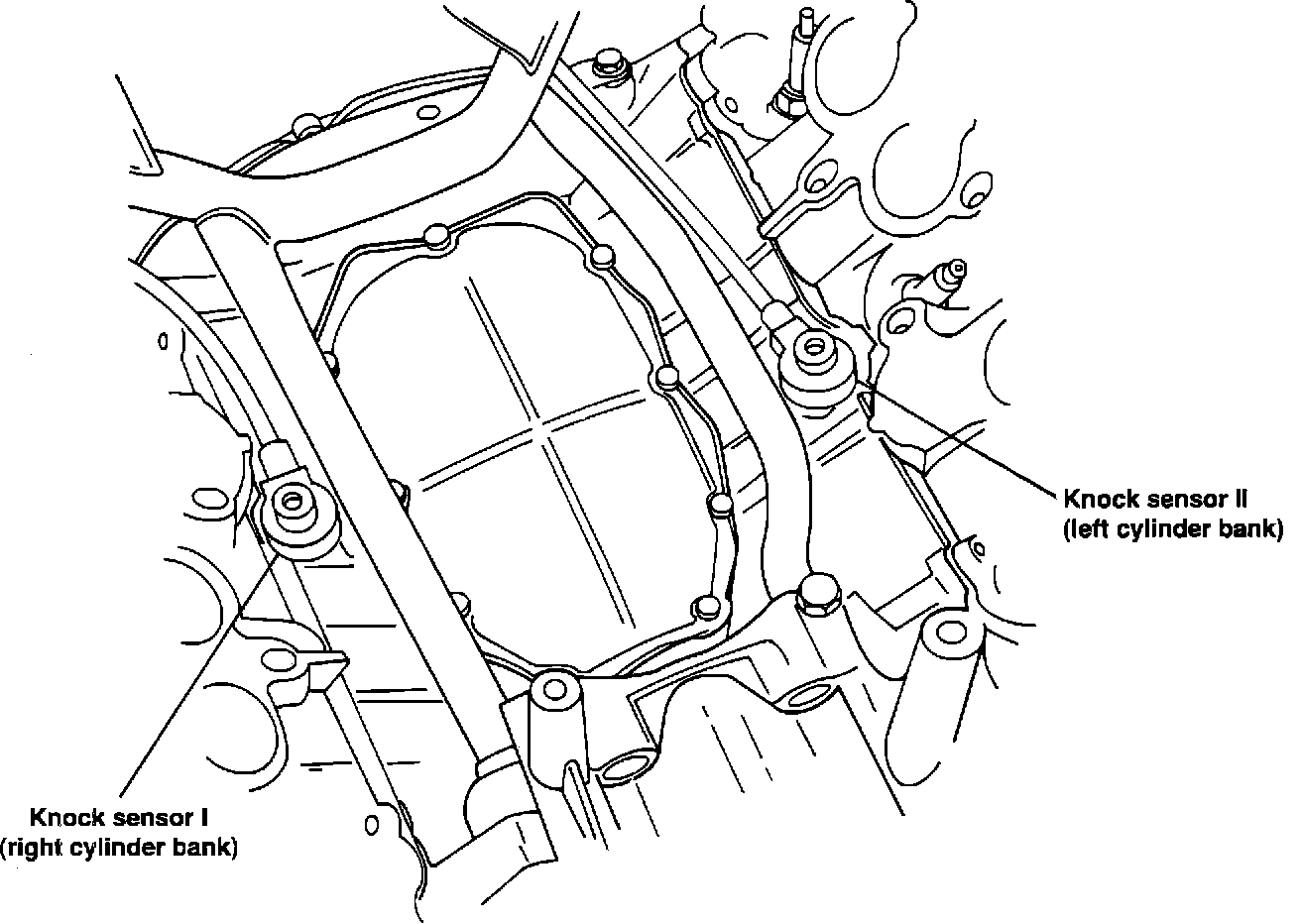

Knock Sensor Location:

Knock Sensor I is mounted on the right cylinder bank, under the intake manifold and monitors cylinders 1,2 and 3.
Knock Sensor II is mounted on the left cylinder bank, under the intake manifold and monitors cylinders 4,5 and 6.
