Distributor: Locations

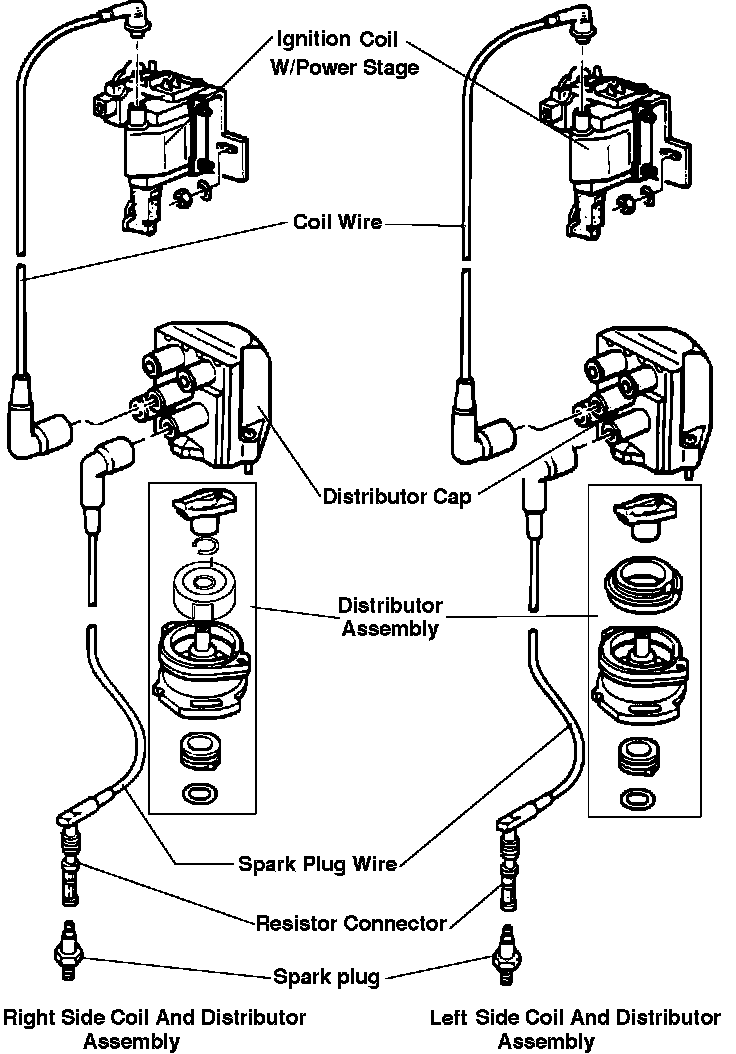

V8 Ignition Components:




V8 Spark Plug Wire Routing:





Located on the rear of both cylinder heads
