Basic Setting (Function 04)
>>
Basic Engine Setting Specification Charts
>>
Manual Transmission
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Manual Transmission

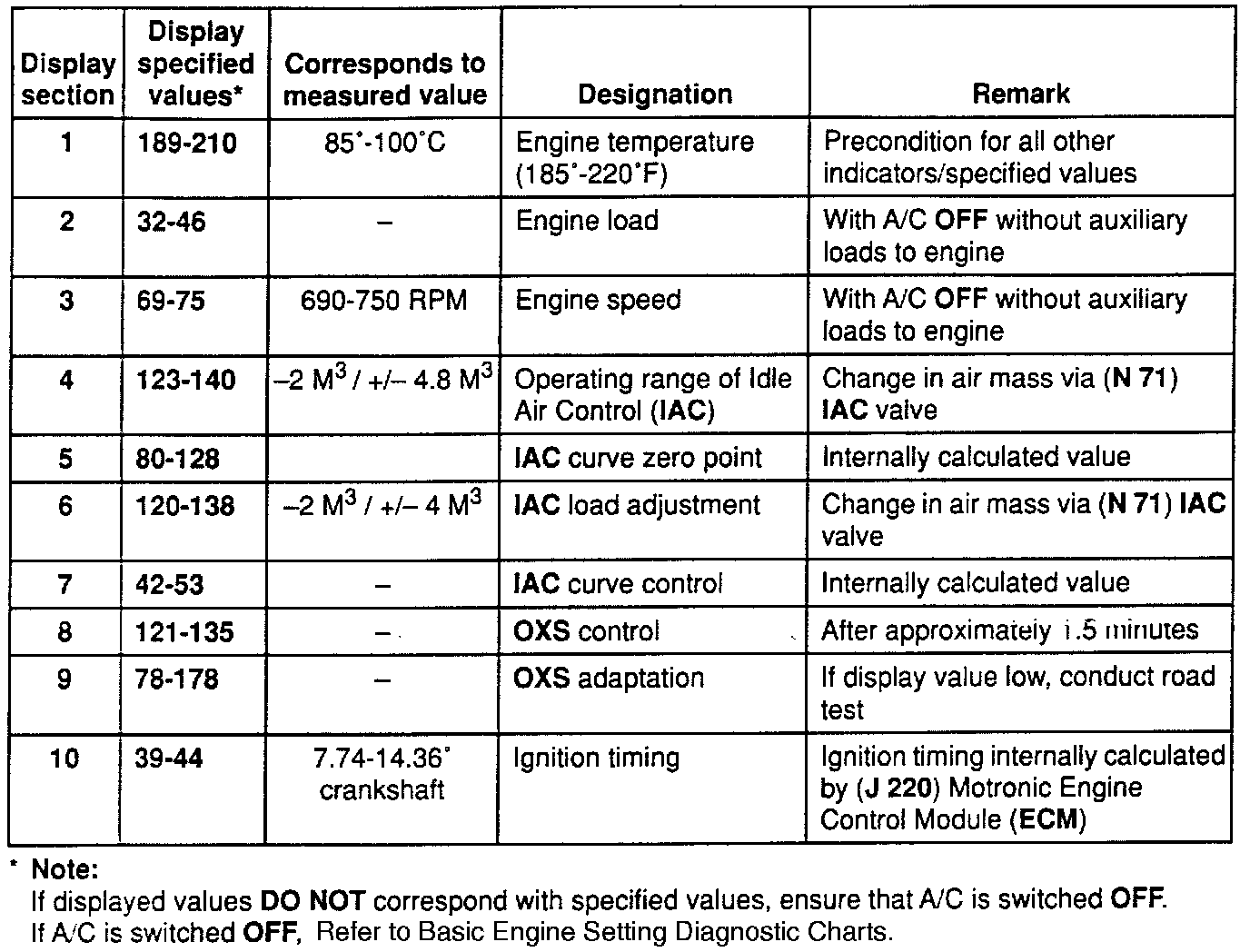

Engine Basic Setting Display Chart:
