Welded Harness Points

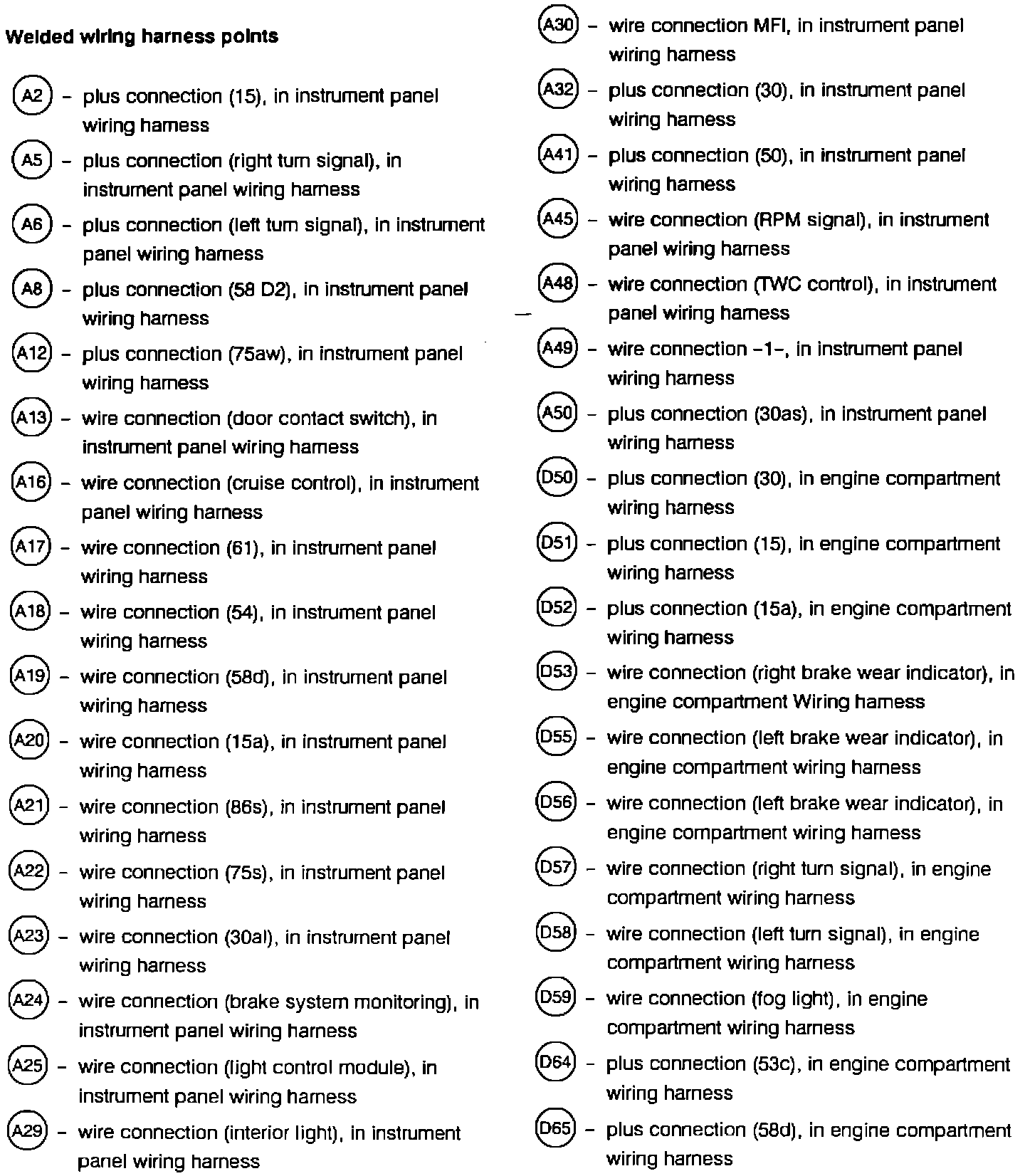

Welded Harness Points:





A2 thru D65

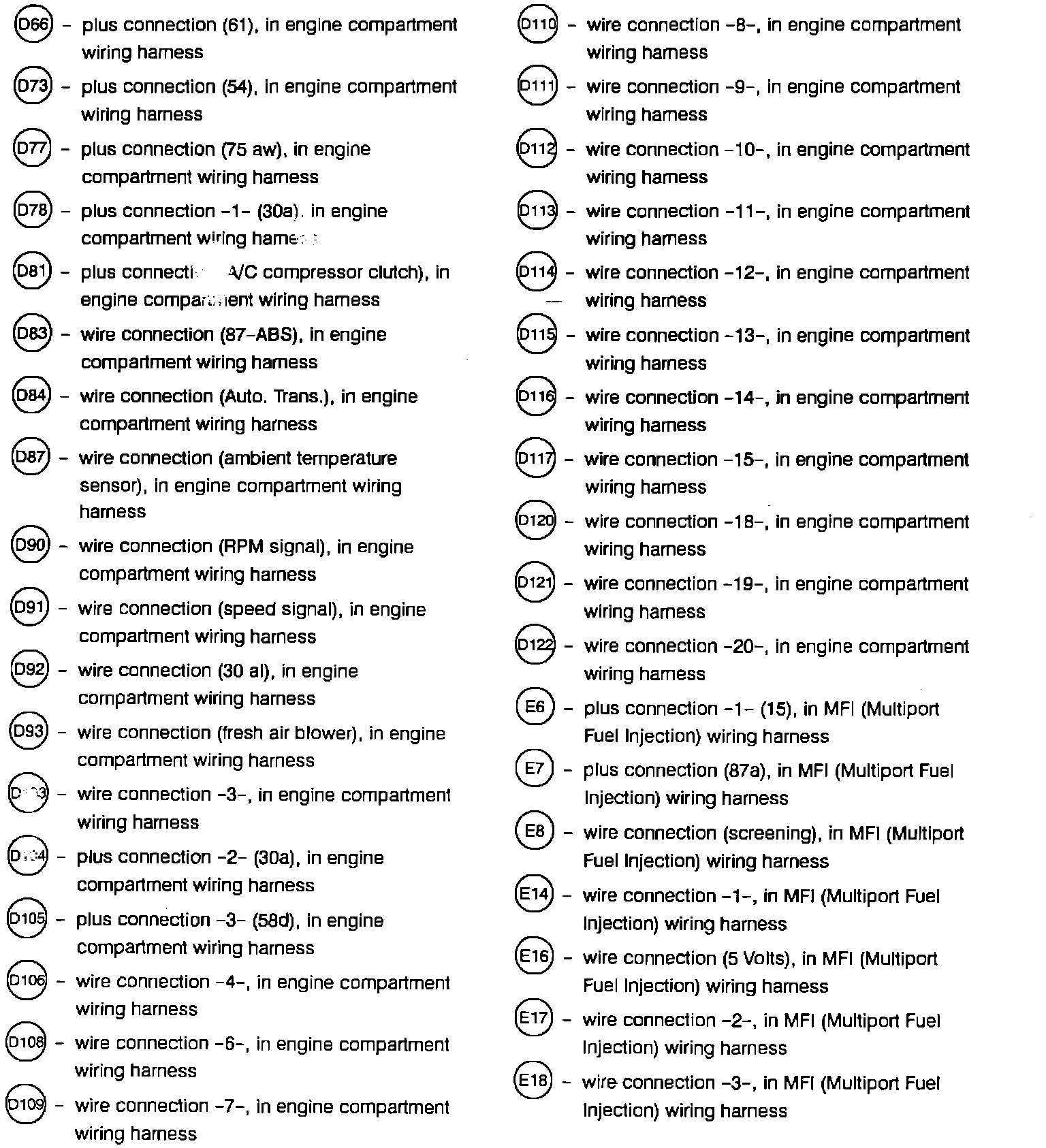

Welded Harness Points:





D66 thru E18

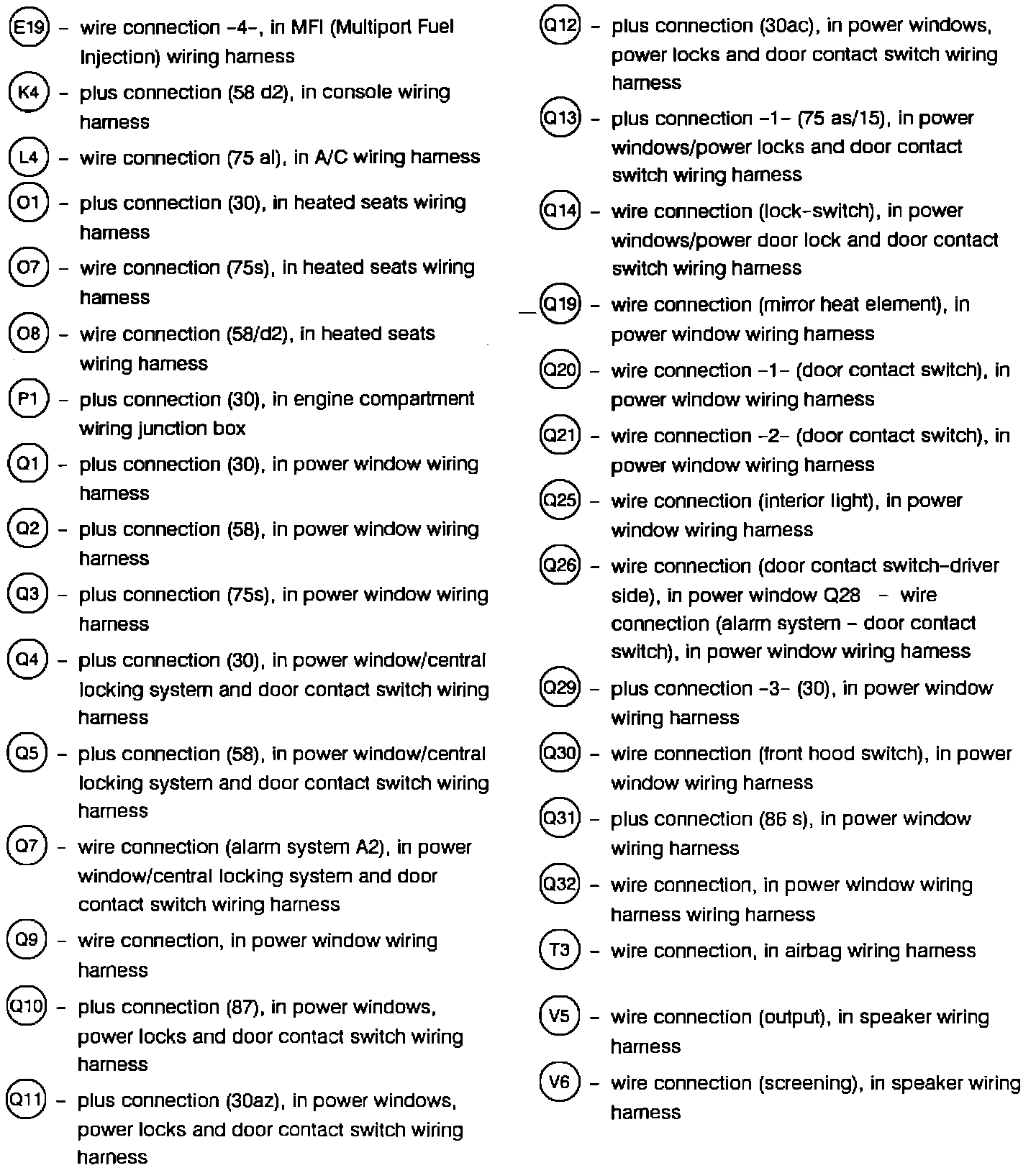

Welded Harness Points:





E19 thru V6

Welded Harness Points:





V12 thru W8
