Display Groups For Basic Setting & Measuring Block Value
>>
Display Group Diagnostic Charts
>>
Display Group 001
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Display Group 001
Display Group 001
Display Group 001 Overview:
Display Overview

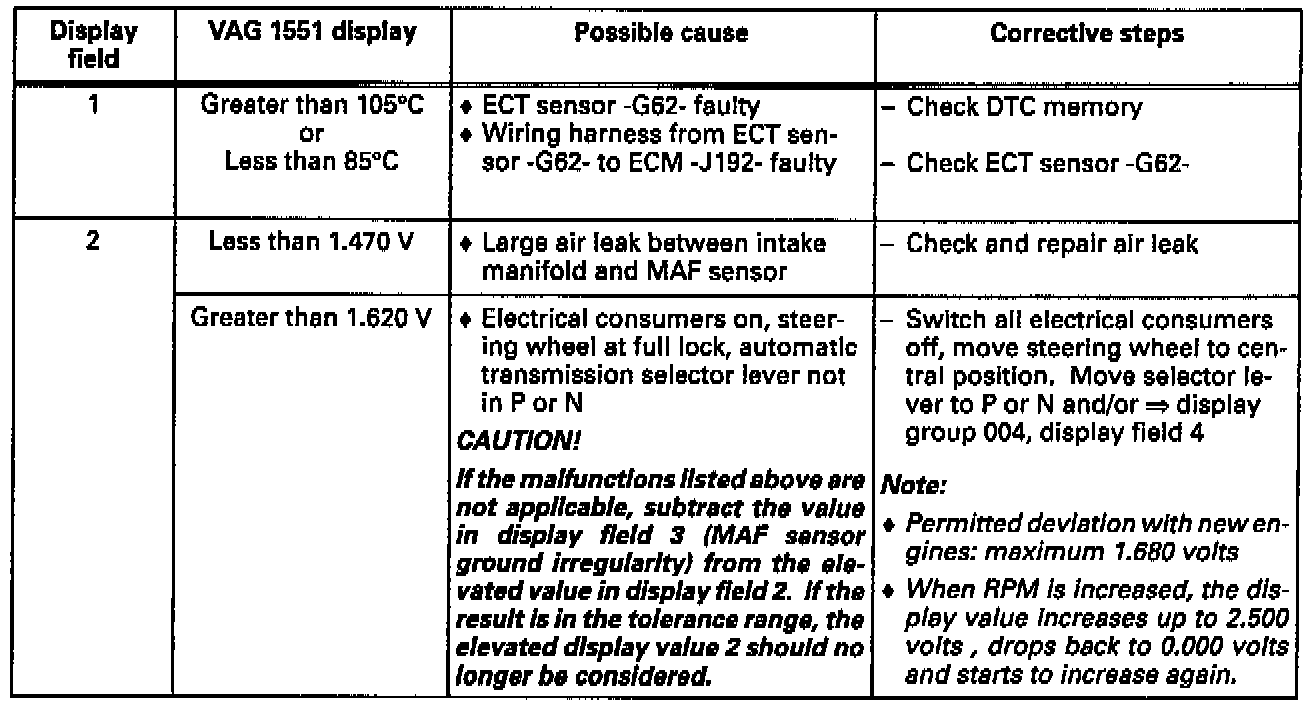

Display Group 001 Test Table, Display Fields 1 & 2:
Test Table
Display Group 001 Test Table, Display Fields 3 & 4:
Test Table
