Display Group 000

Display group 000

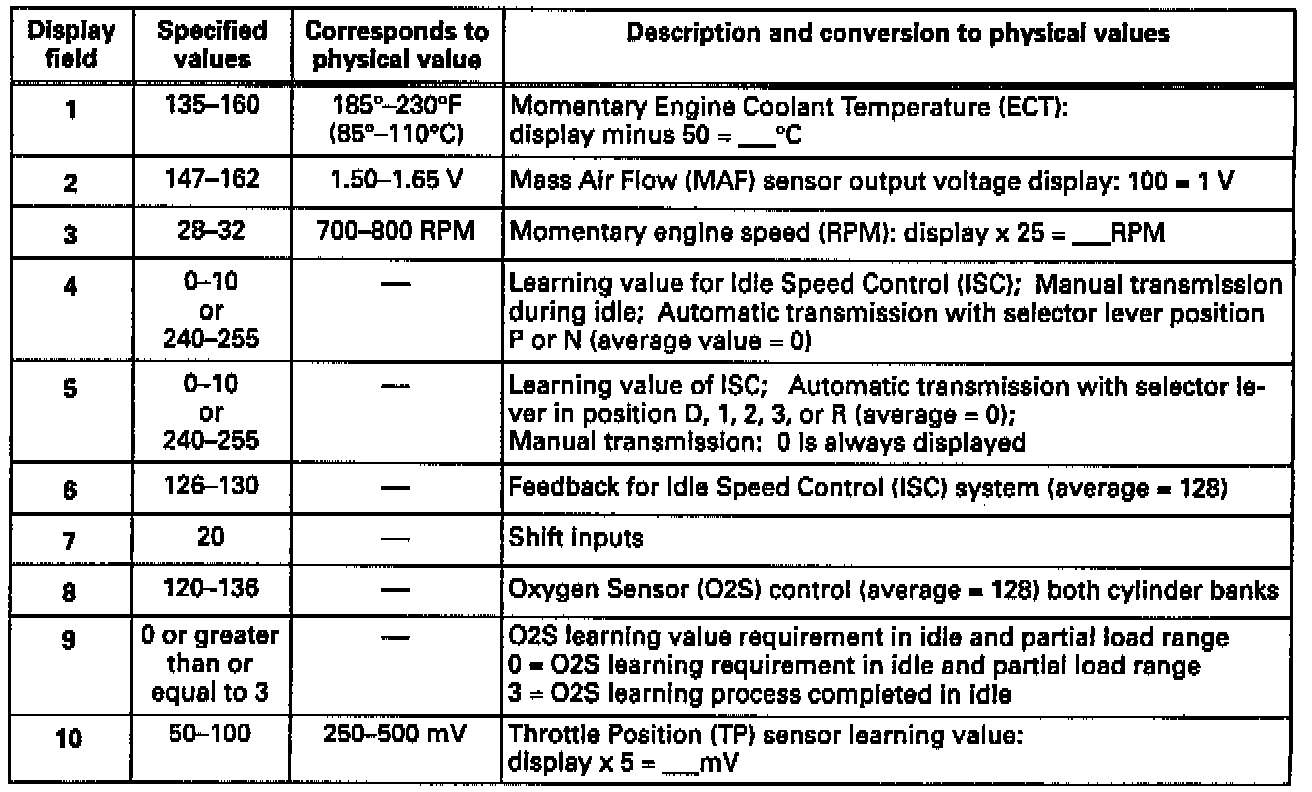

Key To Display Group 000, Display Fields 1 To 10:





^ The word "momentary" as used in this text refers to the most current display being shown on the VAG 1551 scan tool These displays are dynamic. The displayed values can change continuously as real conditions change

^ With the elimination of the CO Fuel trim (FT) potentiometer, the CO adjusting value is no longer displayed in display field 9, instead, the Oxygen Sensor (O2S) adaptive value is displayed.

^ Deviations in display field 8 are only considered after the 02S adaption during closed throttle is completed.

^ If displayed values do not correspond to the specified values, use display groups 001 to 019 to eliminate malfunctions.
