Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |
| Auxiliary Relay Panel |
Under dash, to left of steering column. See Figure
. |
| Circuit Breakers: Power Window & Sun Roof |
On auxiliary relay panel. See Figure
. |

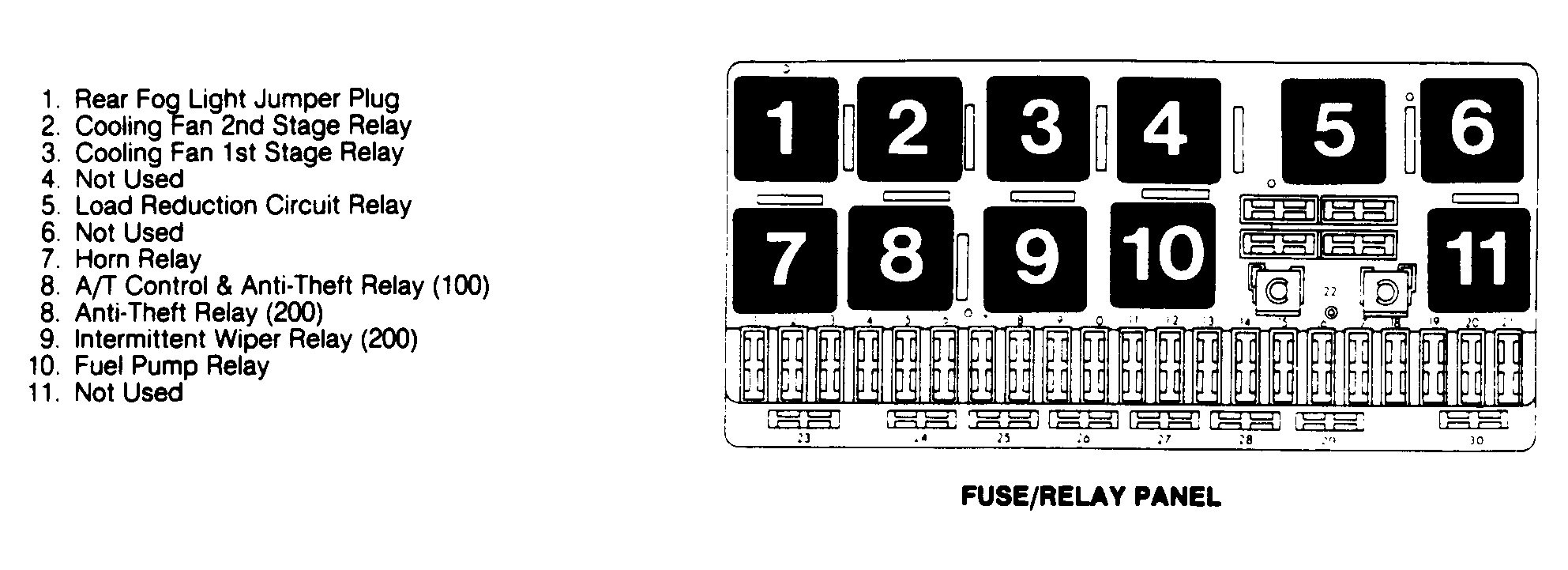

| Fuse/Relay Panel |
On left side of engine compartment. See Figure
. |
