Window Regulator Safety Switch
Remove switch and console from door trim panel.
Pull off terminal connector.
Carefully pry out switch by inserting small screwdriver into recess and pushing toward center of switch. See
Fig 1
.

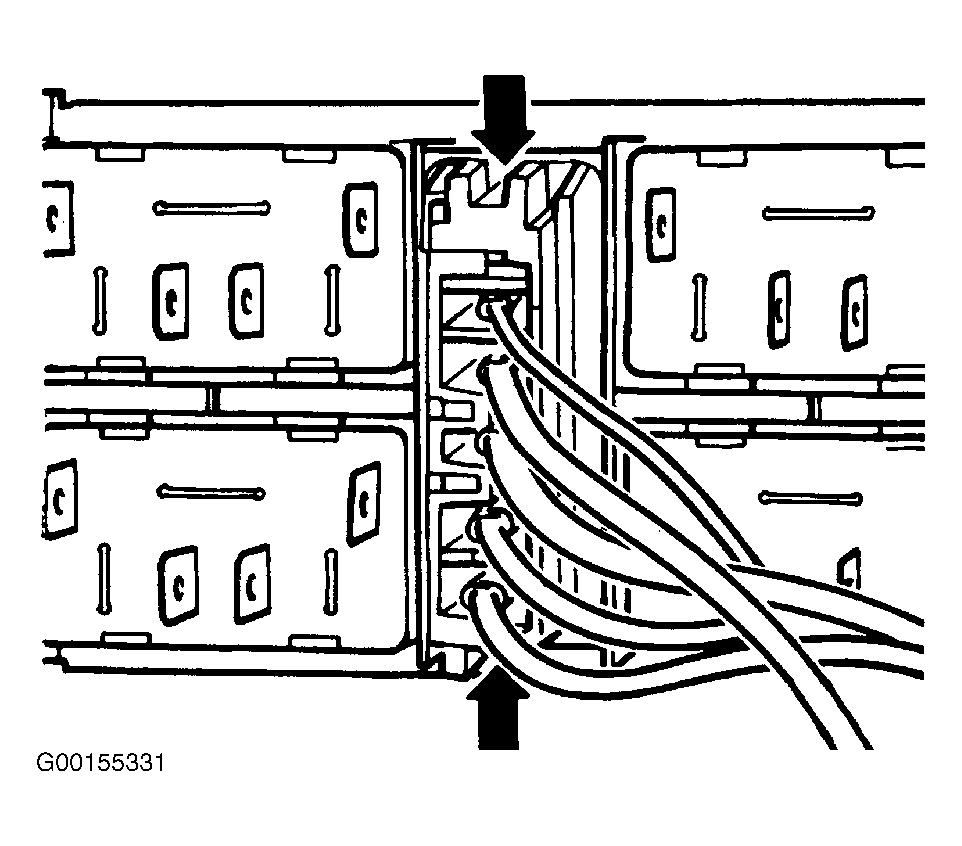

Fig 1: Removing & Installing Window Regulator Safety Switch
Courtesy of AUDI OF AMERICA, INC.
