Testing & Diagnosis

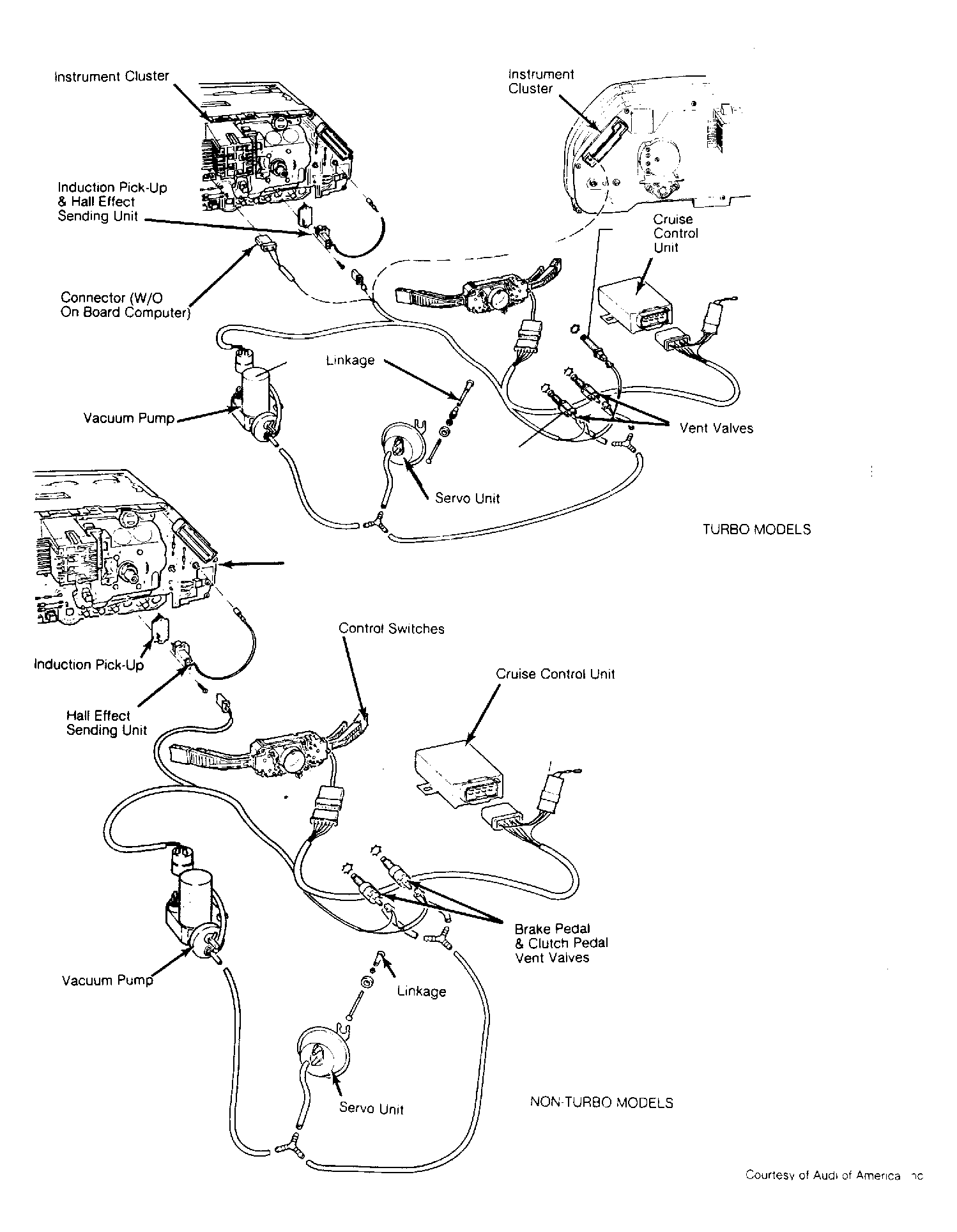

Fig 1: 5000 Series Cruise Control System Components

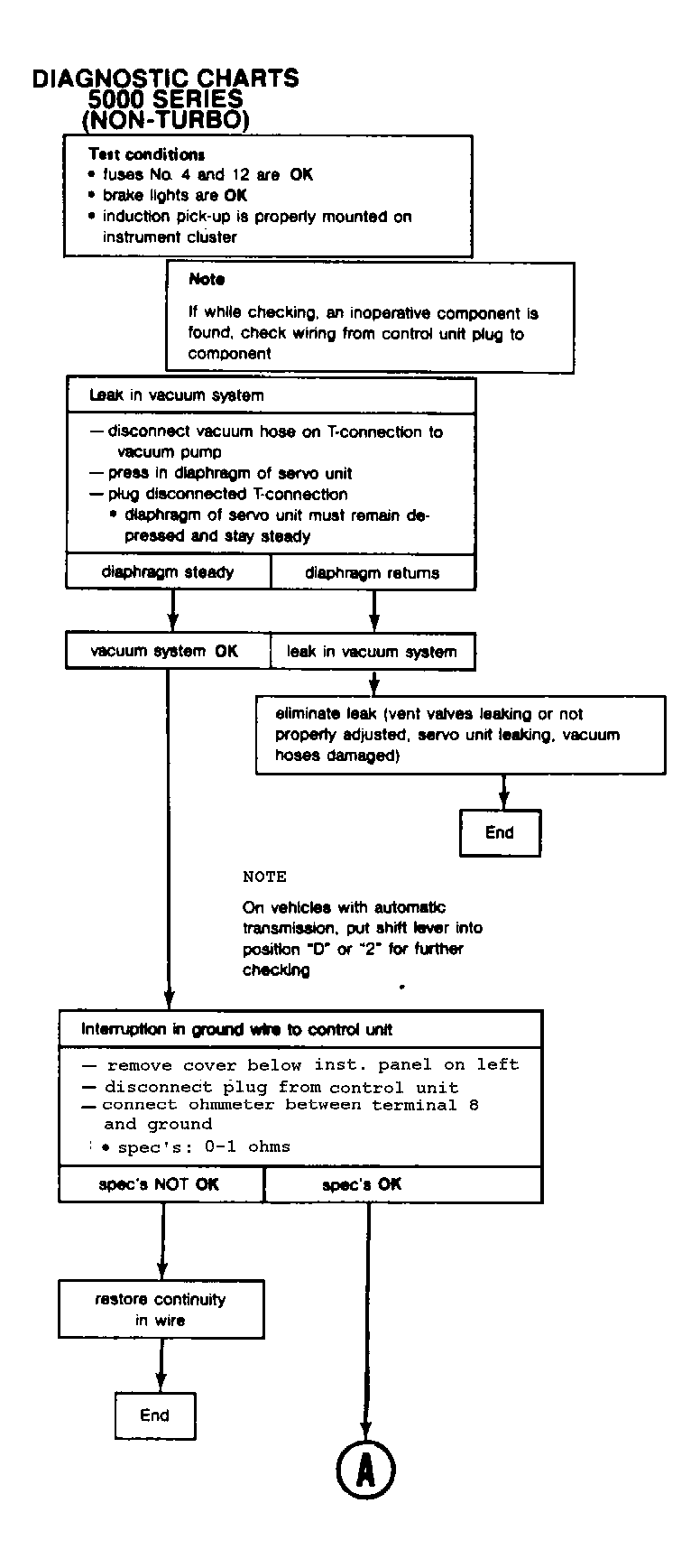

Fig 2: Diagnostic Chart, 5000 Series (Non-Turbo), Part 1

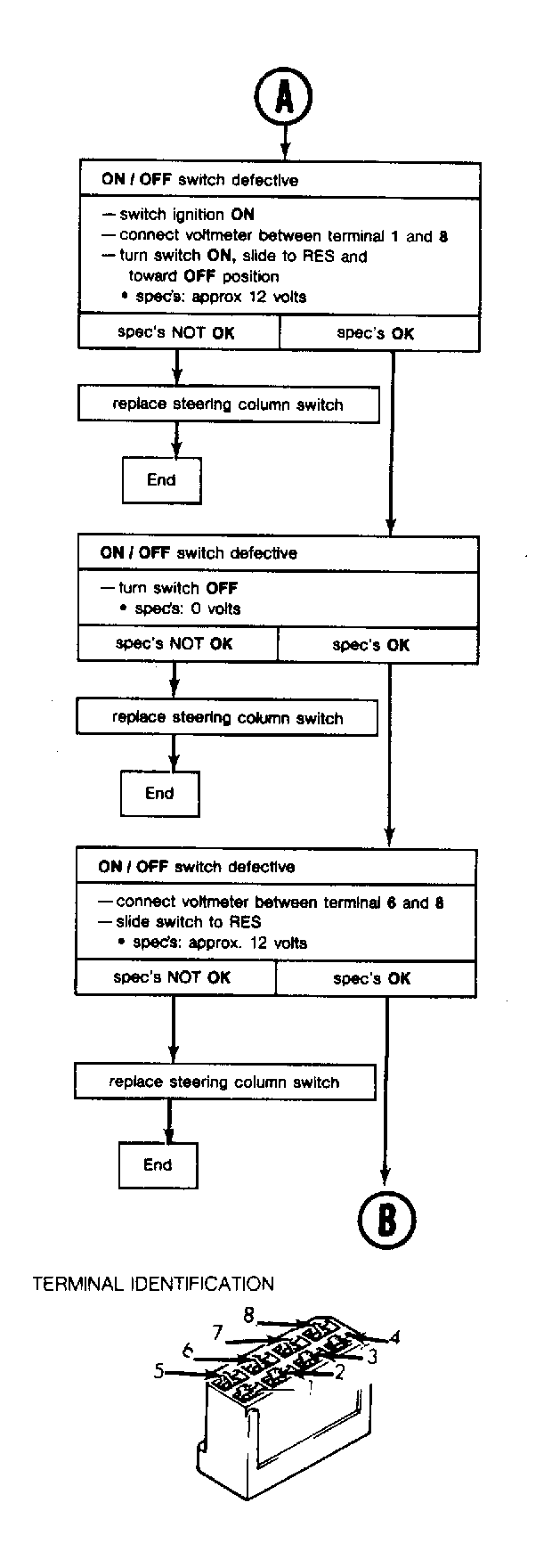

Fig 3: Diagnostic Chart, 5000 Series (Non-Turbo), Part 2

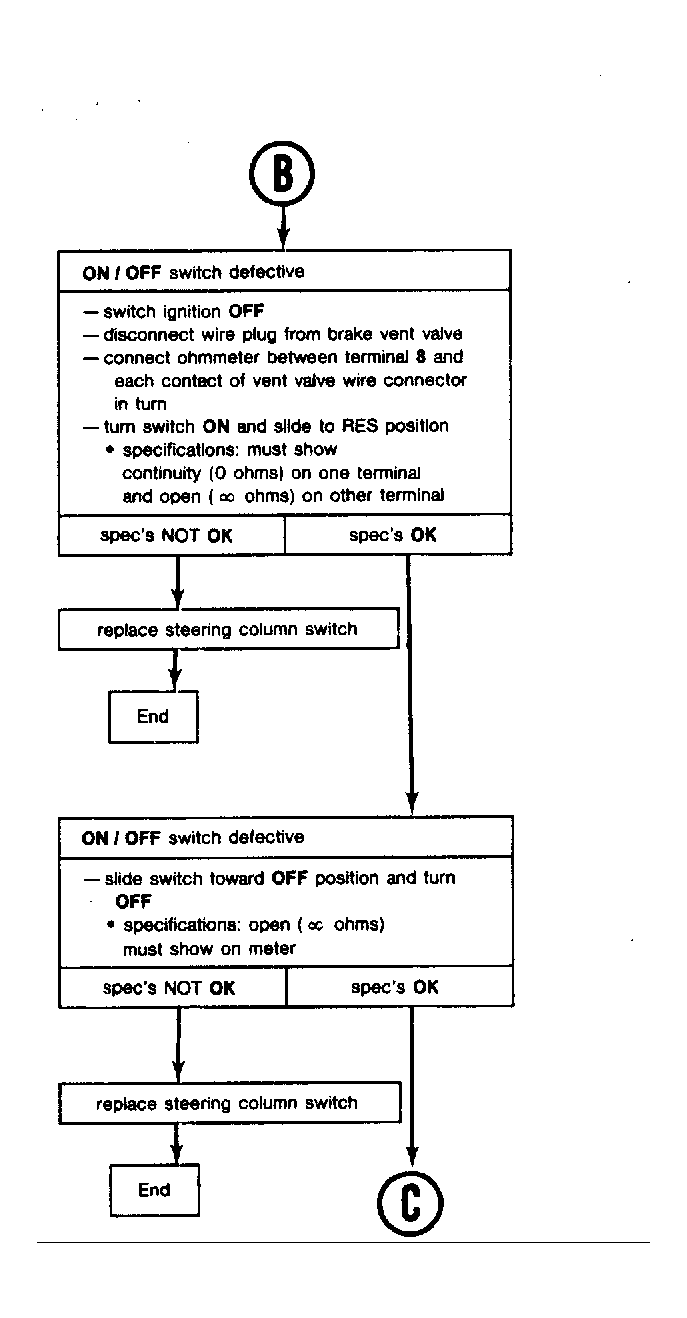

Fig 4: Diagnostic Chart, 5000 Series (Non-Turbo), Part 3

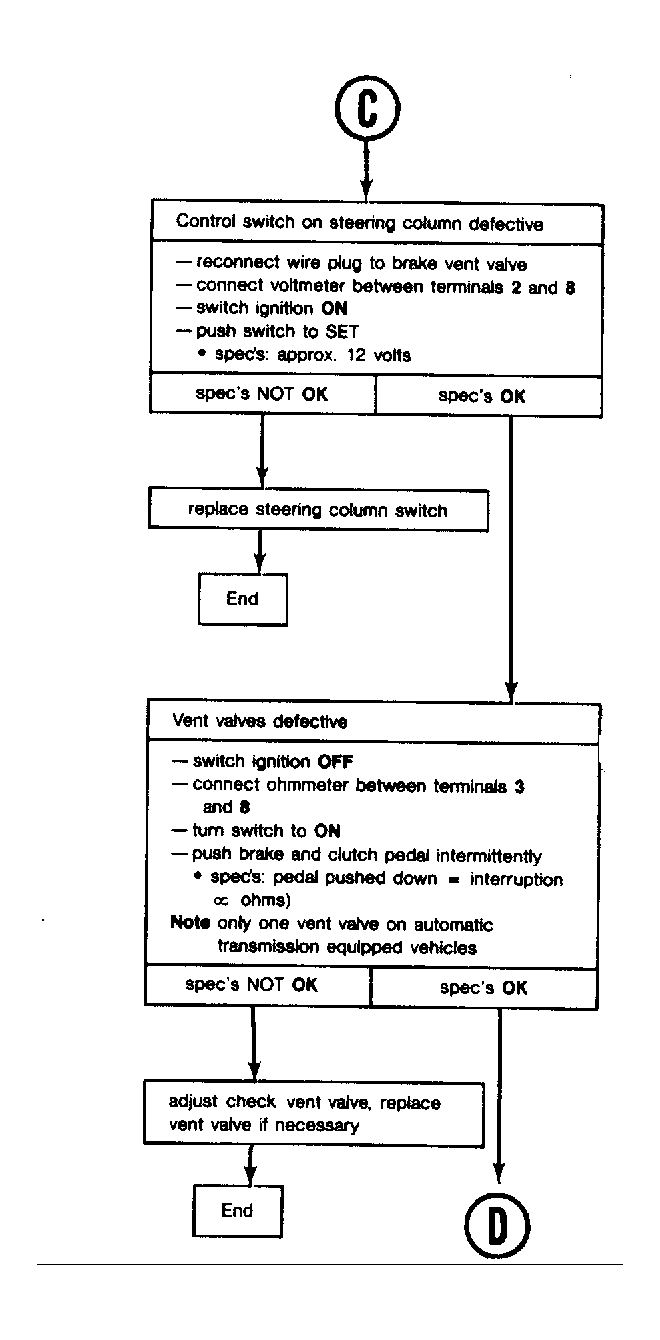

Fig 5: Diagnostic Chart, 5000 Series (Non-Turbo), Part 4

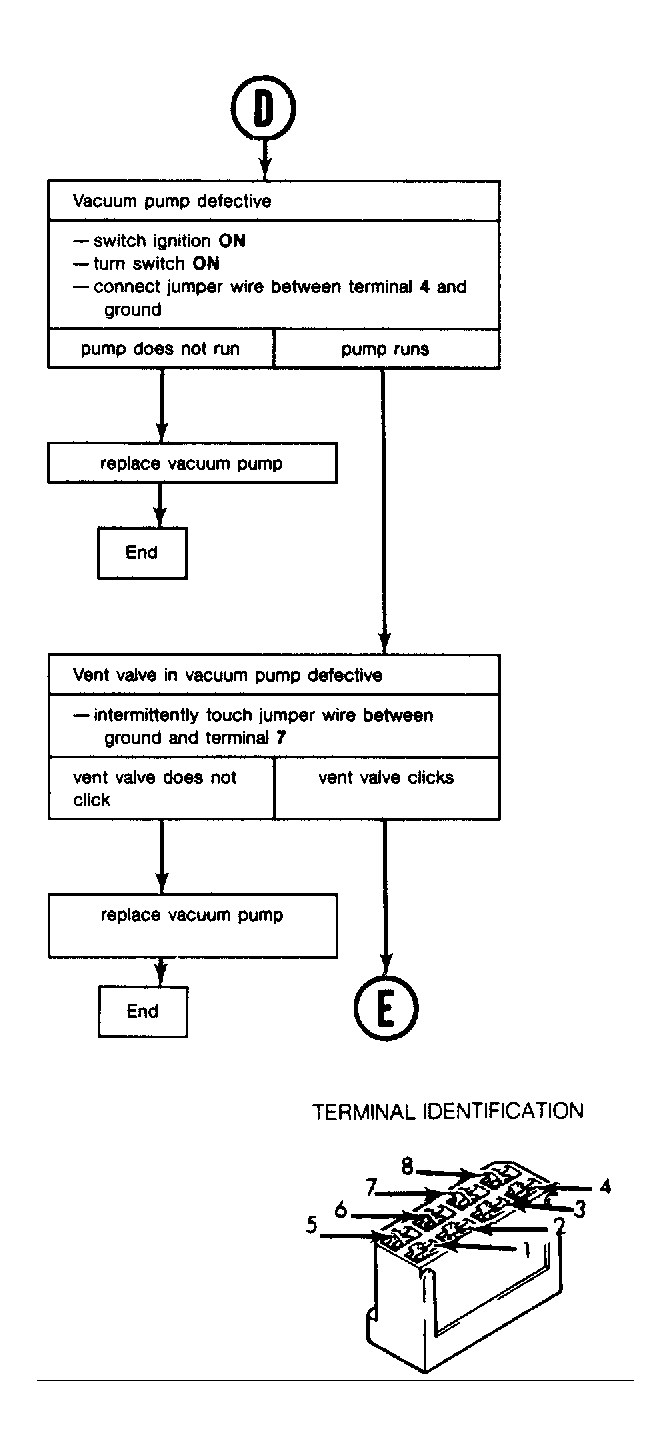

Fig 6: Diagnostic Chart, 5000 Series (Non-Turbo), Part 5

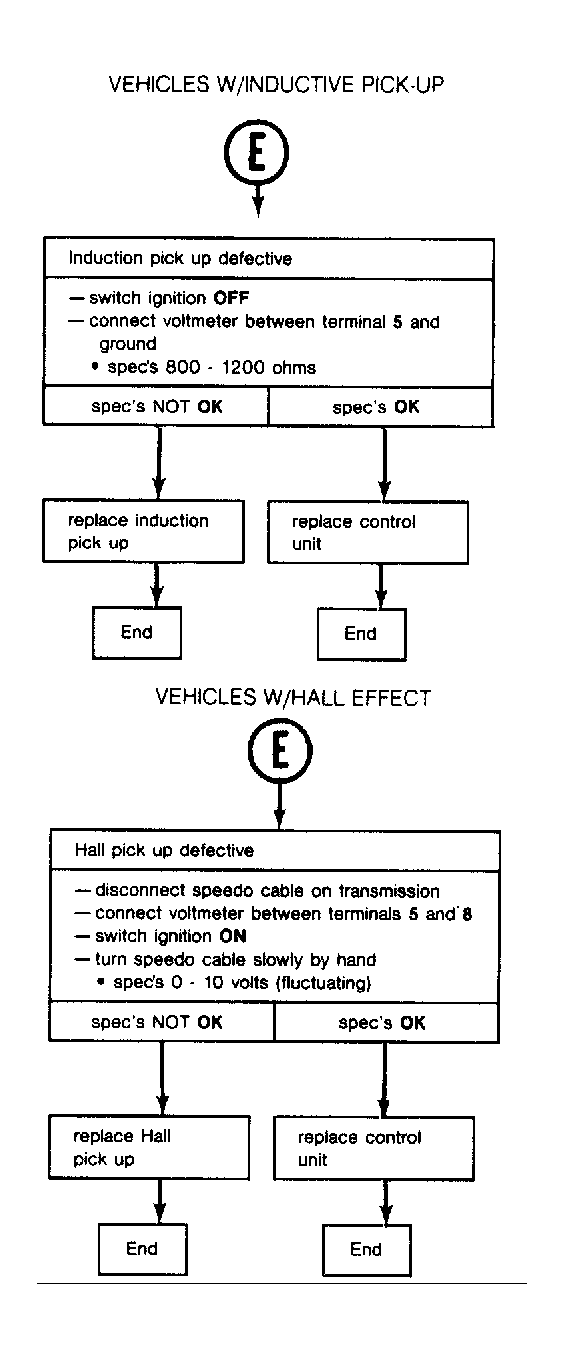

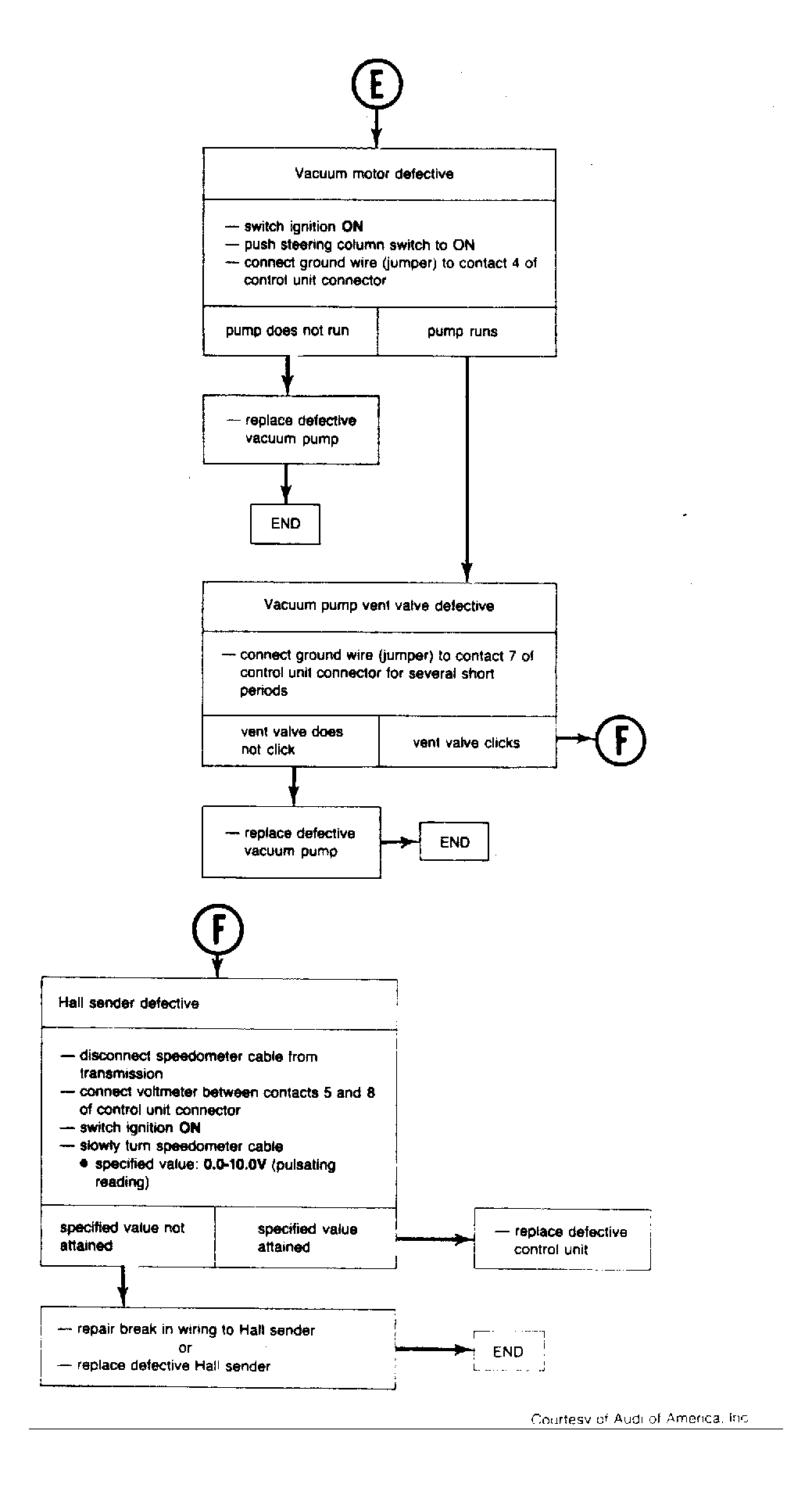

Fig 7: Diagnostic Chart, 5000 Series (Non-Turbo), Part 6

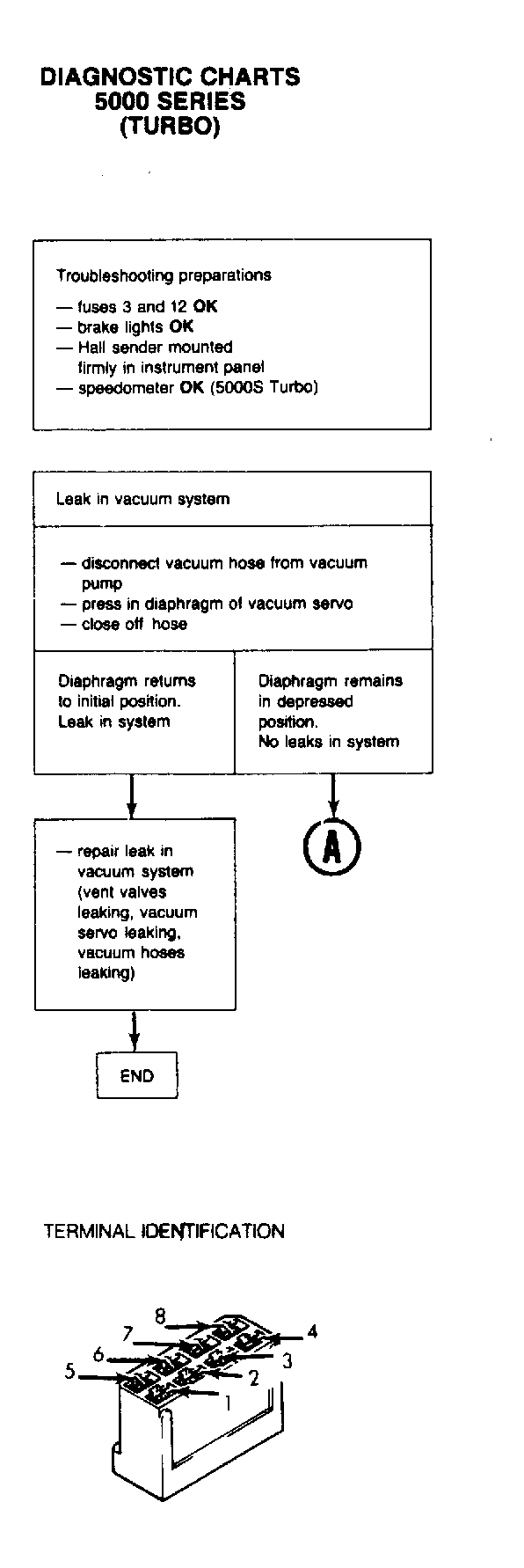

Fig 8: Diagnostic Chart, 5000 Series (Turbo), Part 1

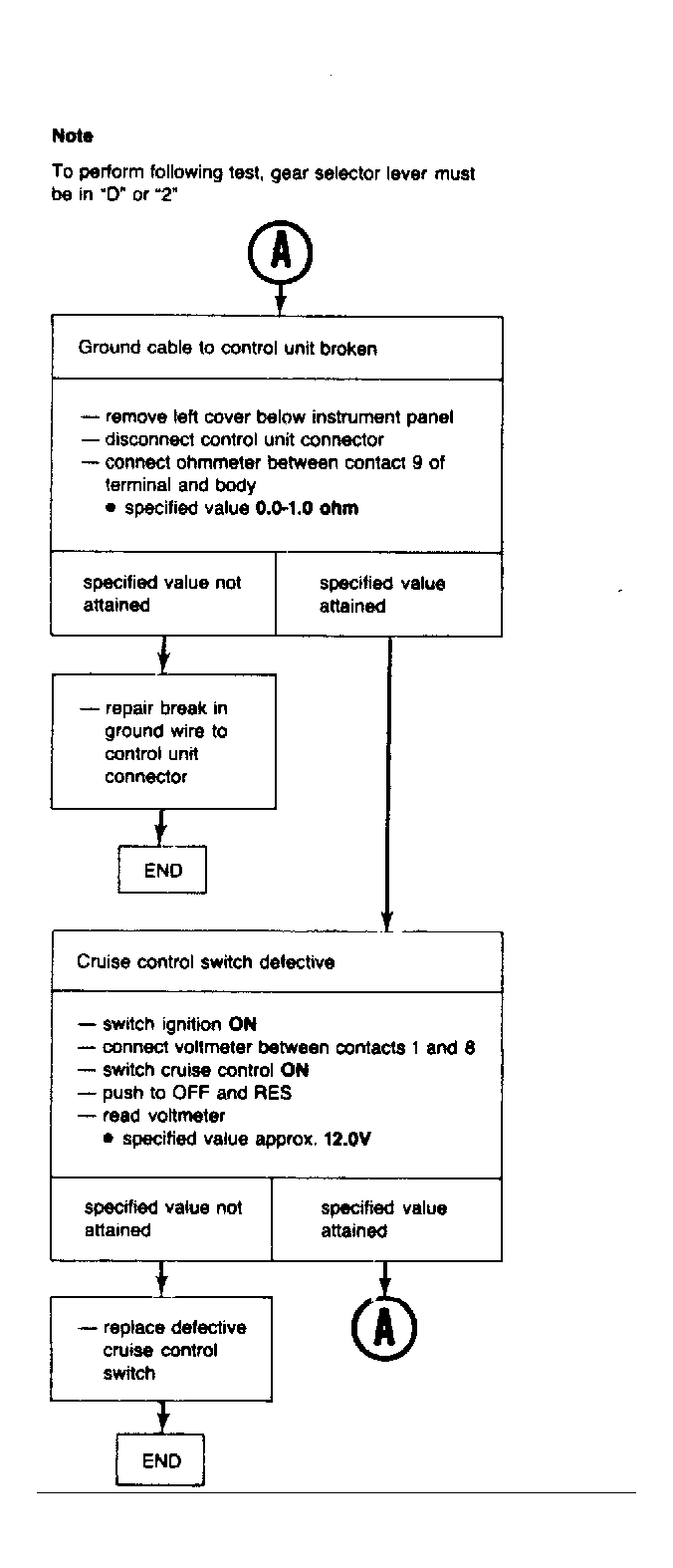

Fig 9: Diagnostic Chart, 5000 Series (Turbo), Part 2

Fig 10: Diagnostic Chart, 5000 Series (Turbo), Part 3

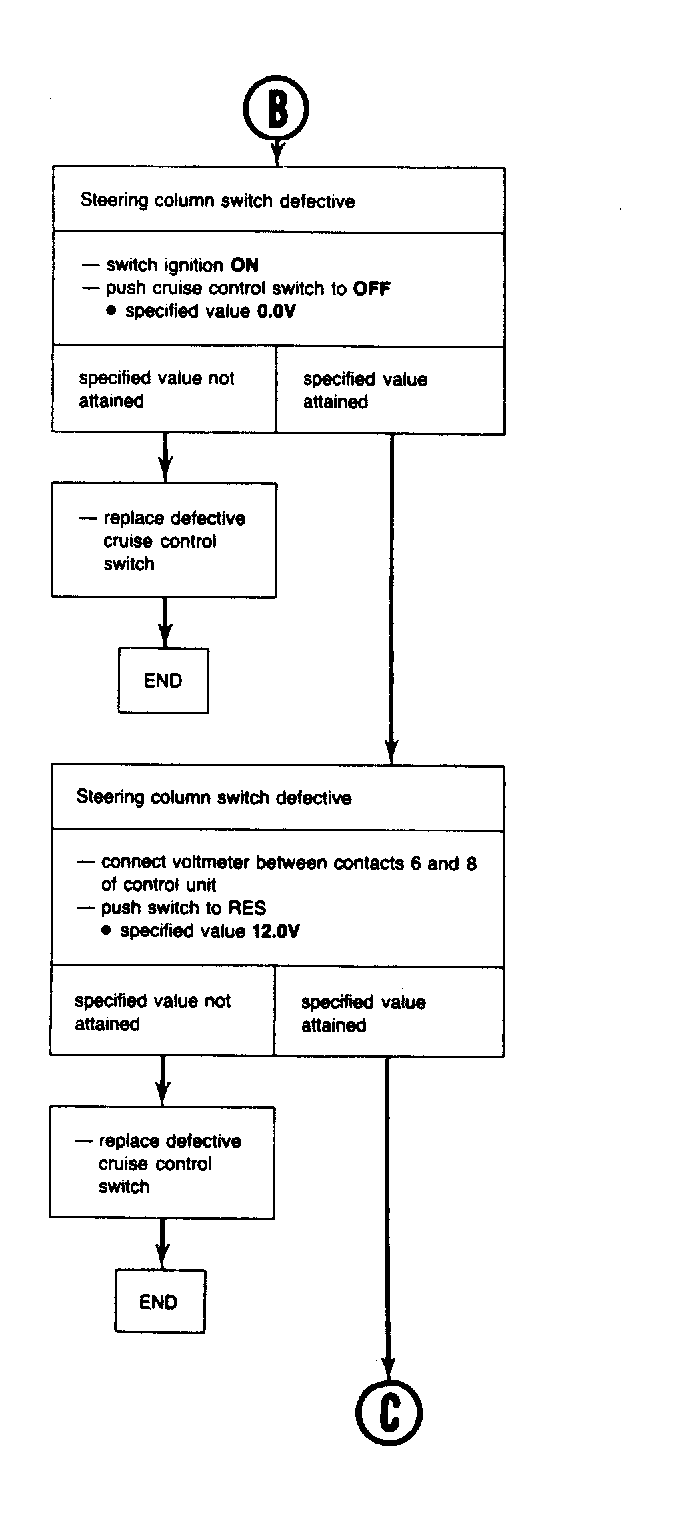

Fig 11: Diagnostic Chart, 5000 Series (Turbo), Part 4

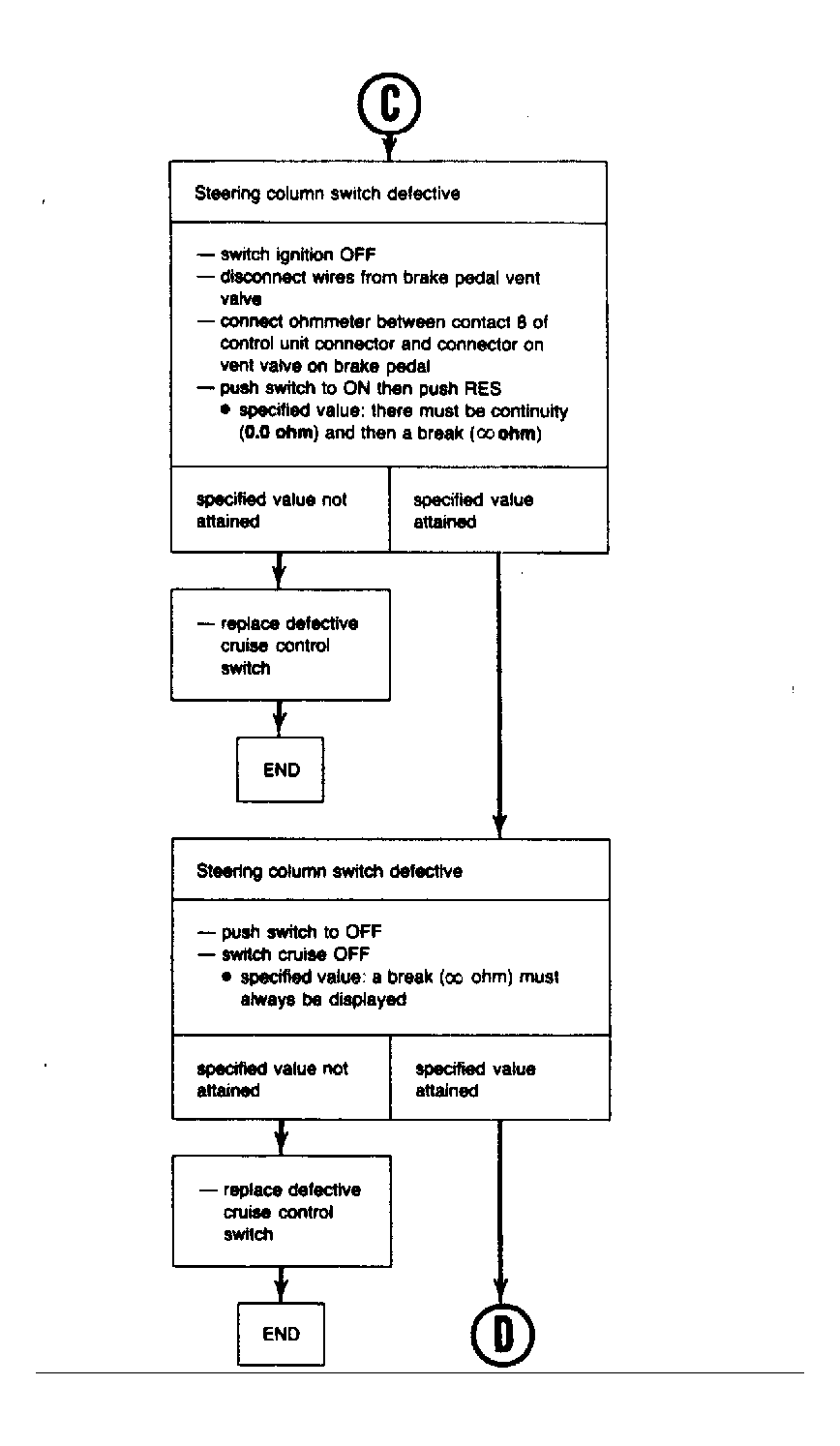

Fig 12: Diagnostic Chart, 5000 Series (Turbo), Part 5

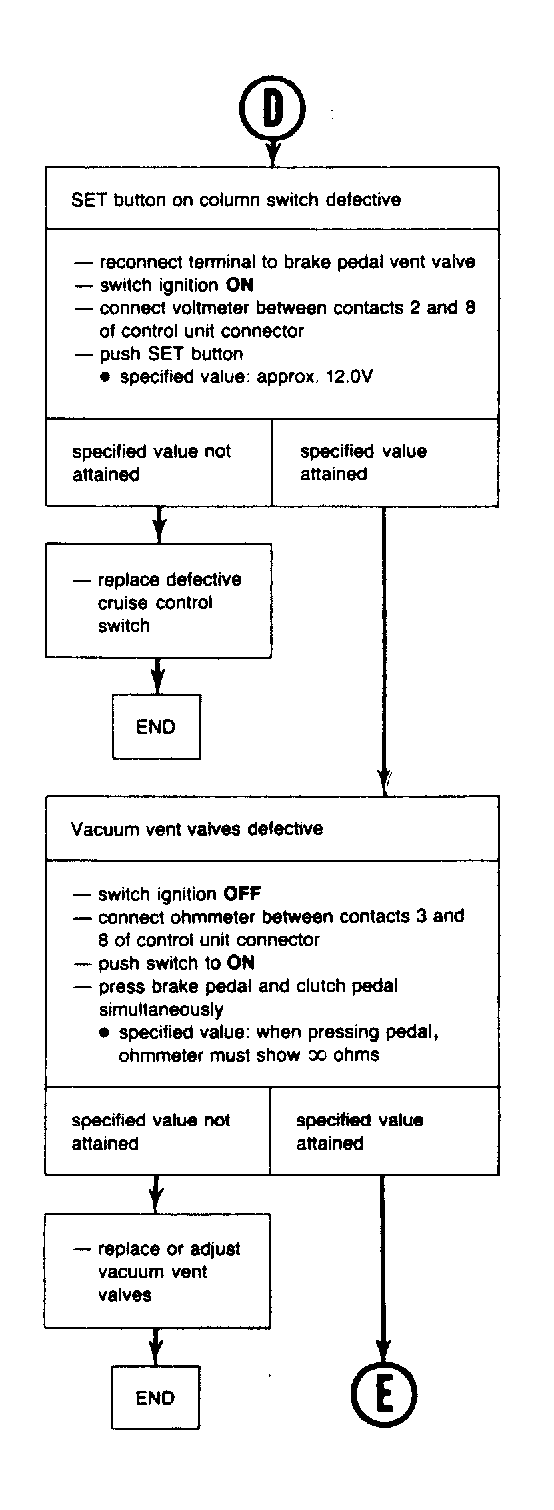

Fig 13: Diagnostic Chart, 5000 Series (Turbo), Part 6

Fig 14: Diagnostic Chart, 5000 Series (Turbo), Part 7
