Throttle Body Assembly: Installation

Install replacement throttle body assembly on manifold using new gasket. Reconnect all hoses, wires and cable in order of disassembly. Adjust ISA motor and WOT switch after installation. See ADJUSTMENTS in this article.

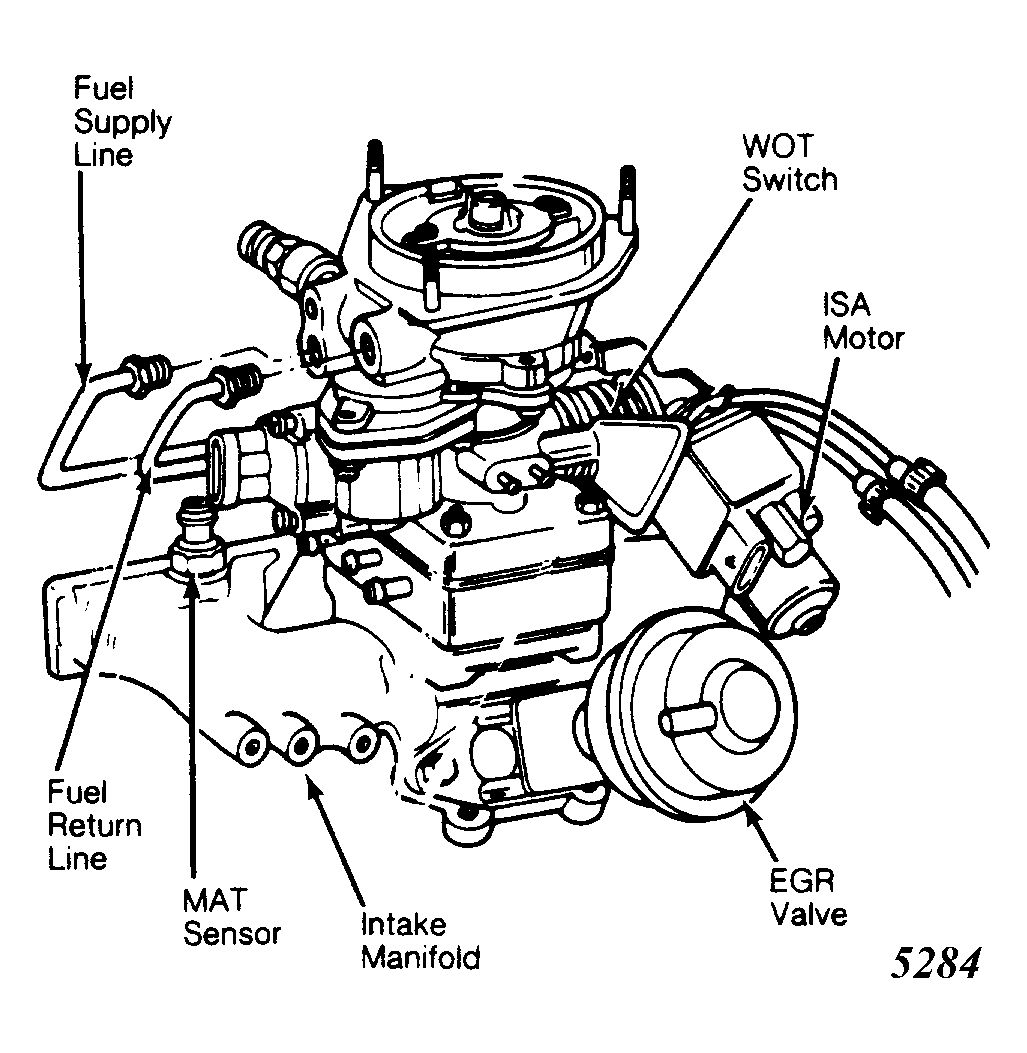

Fig 1: Intake Manifold & Throttle Body Assembly

Courtesy of AMERICAN MOTORS/RENAULT CORP.
