Test No. 8

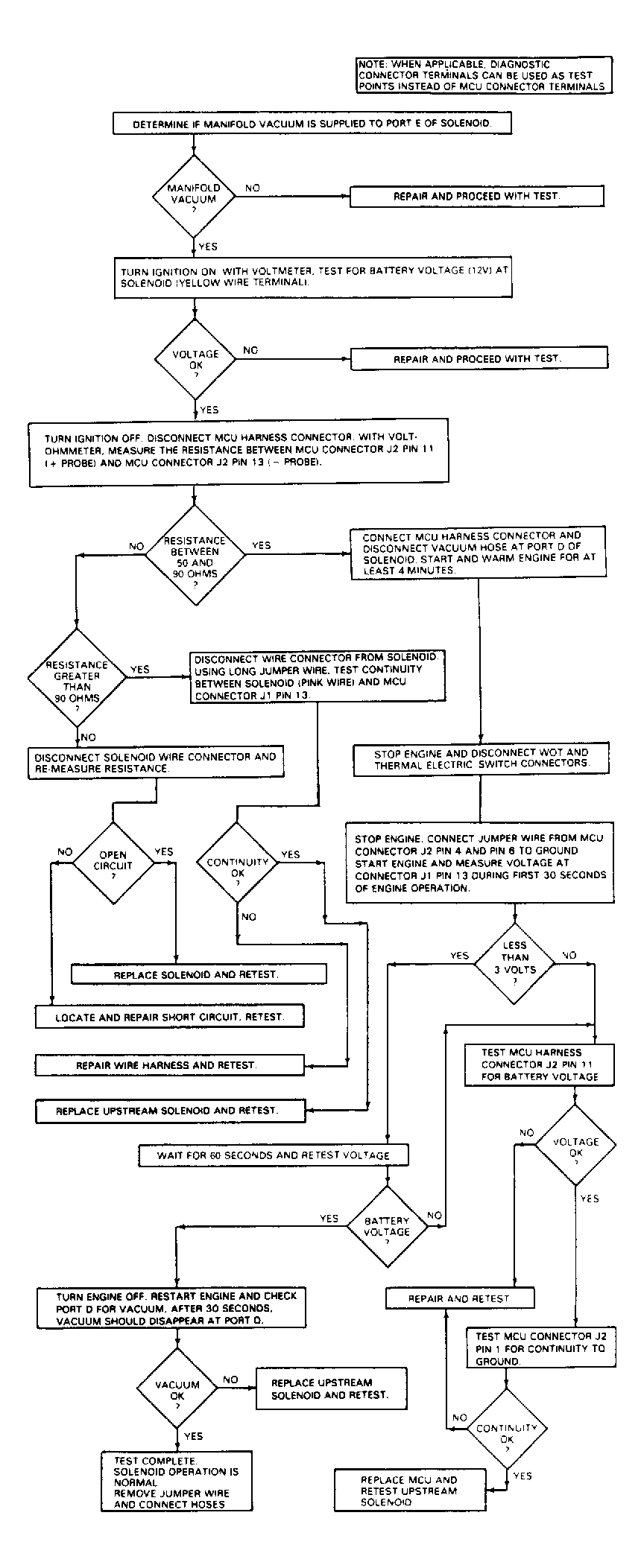

Fig 1: Test No. 8: Upstream Solenoid Test

G2376

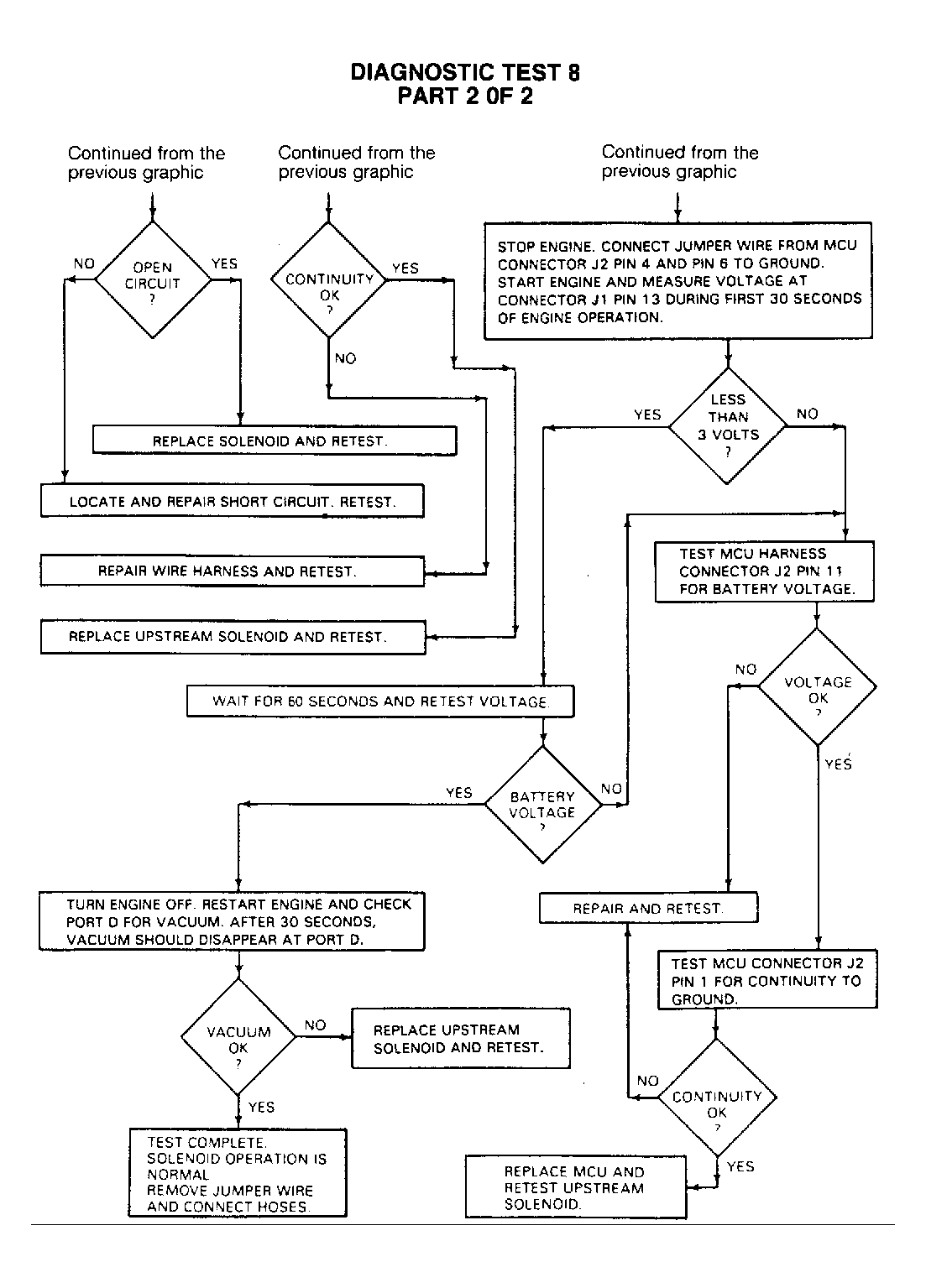

Fig 2: Test No. 8: Upstream Solenoid Test (Continued)

G6646
