Home
>>
American Motors
>>
1987
>>
Eagle Limited, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
2-Bbl Comp Emission CEC
>>
System Testing
>>
Test No. 11
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Test No. 11

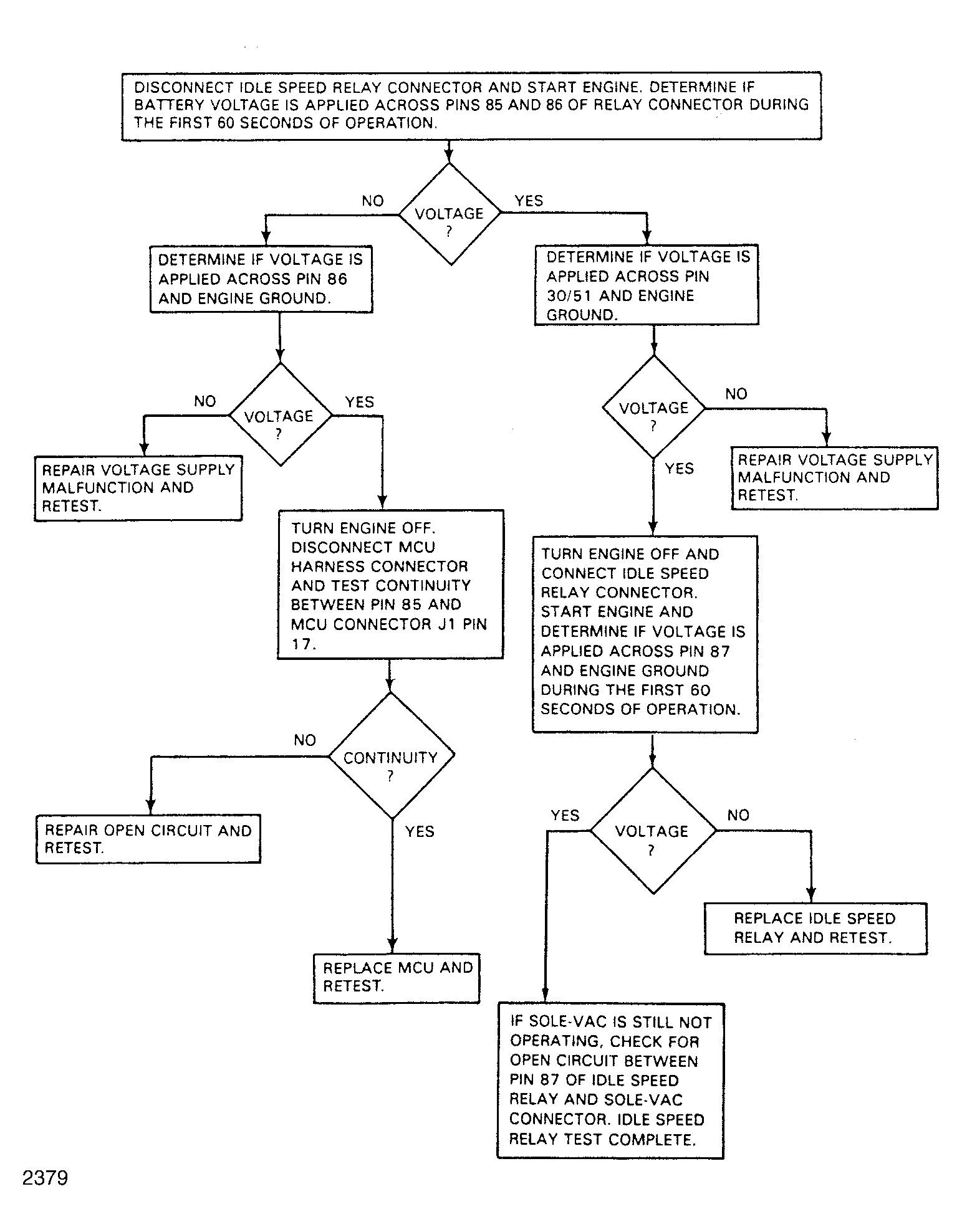

Fig 1: Test No. 11: Sole-Vac Idle Speed Relay Test
