Encore Base
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel Injection System (AMC) - TBI
>>
Wiring Diagrams
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Wiring Diagrams

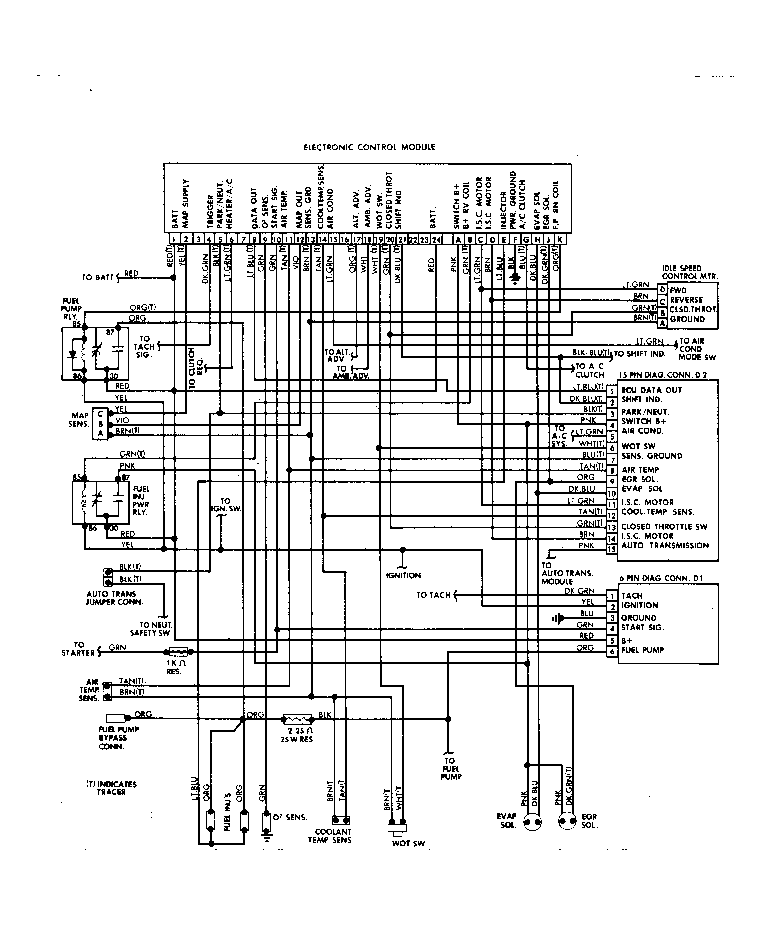

Fig 1: AMC Throttle Body Fuel Injection System Wiring Diagram
