Wiring Precautions
Some of the SRS wiring can be identified by a special yellow outer covering while the SRS connectors can be identified by their yellow color. Observe the following instructions.

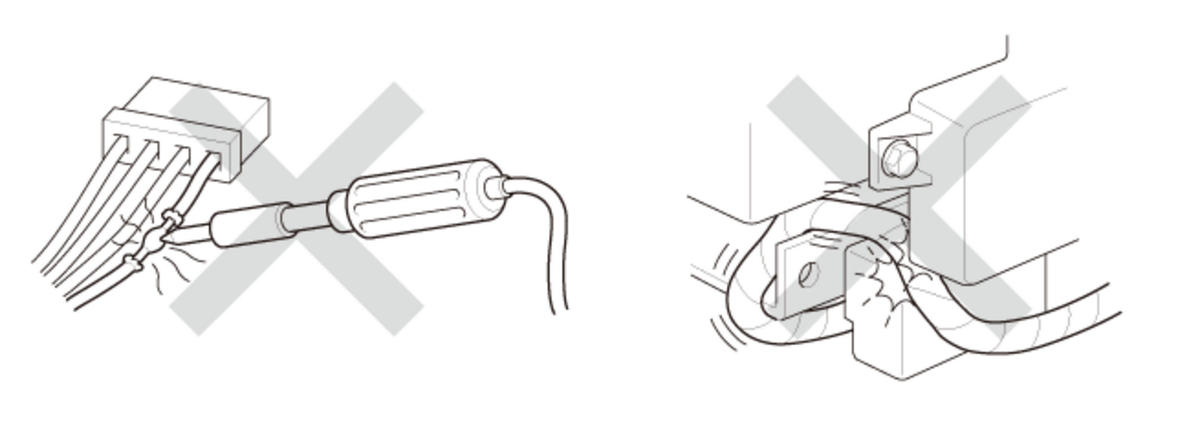

- Never attempt to modify, splice, or repair SRS wiring. If there is an open or damage to the SRS wiring, replace the harness.
- Be sure to install the harness wires so they do not get pinched or interfere with other parts.
- Make sure all SRS ground locations are clean, and the grounds are securely fastened for optimum metal-to-metal contact. Poor grounds can cause intermittent problems that are difficult to diagnose.
- Do not use any silicone based cleaners or lubricants on any SRS connectors or terminals.
