Engine Oil Replacement (1.5L Engine): Replacement

How to use this service information .

NOTICE:

Be careful as engine components may be hot after stopping the engine.

1. Engine Oil - Replacement

   Preconditions

   • Engine Undercover Plate Removed - Refer to: Undercover Area (Type-S) (2024 2025) or Undercover Area (Except Type-S)

   Procedure/Specifications

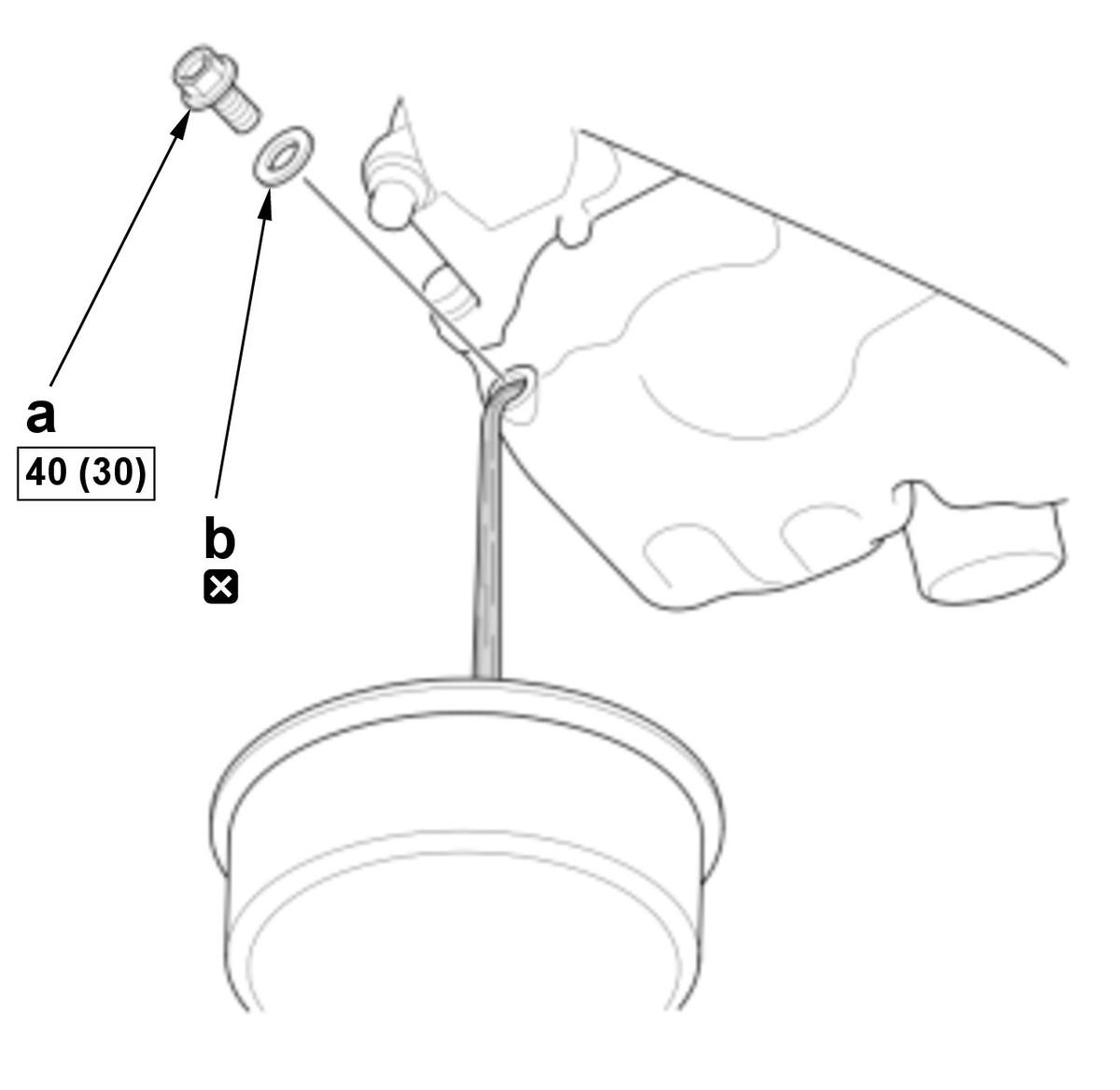

   1. Remove the bolt (a), and drain the oil.

   Courtesy of HONDA, U.S.A., INC.

   2. Reinstall the bolt with a new washer (b) and torque to specification.

   3. Refill the engine with the recommended oil.

   Oil Amount Details

   Operation	Specified Amount
   At Oil Change	3.2 L (3.4 US qt)
   At Oil Change including Filter	3.5 L (3.7 US qt)
   After Engine Overhaul	4.0 L (4.2 US qt)

   After Replacement

   • Engine Oil Level Check - Refer to: Engine Oil Replacement (1.5L Engine)  or Engine Oil Replacement (2.0L Engine) (2024 2025)  or Engine Oil Level Check

   ■ Maintenance Minder Reset (With Maintenance Minder System)

   • If the Maintenance Minder requires the engine oil to be replaced, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require the engine oil to be replaced, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items").

   ■ Engine Oil Monitor Reset (With Engine Oil Monitor System)

   • Engine Oil Monitor Reset
