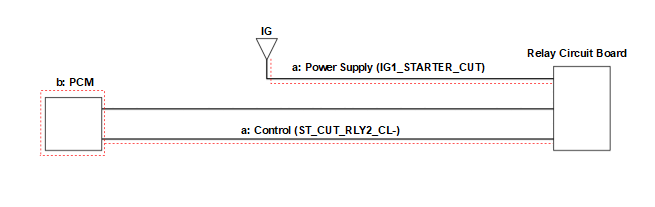

Inspection Outline

• The components to be tested are indicated by a dotted line.

Courtesy of HONDA, U.S.A., INC.

NOTICE:

For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.

• Does the engine start?
• • -

    YES:

  • -

    NO:

Inspection Items		Work Items
a	External Circuit	IG1_STARTER_CUT, ST_CUT_RLY2_CL- Circuit Inspection	o	o
b	PCM	PCM Inspection (1)	o
		PCM Inspection (2)		o
