DTC Troubleshooting: P0643(3.0L Engine): Inspection
VCC1, VCC2, VCC3, VCC4 Shorted Wire Inspection
NOTICE:
Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.
Test Procedure
- Preparation
-
- PCM connector B (72P): disconnected
- PCM connector E (114P): disconnected
- CKP sensor 3P connector: disconnected
- MAP sensor 3P connector: disconnected
- Fuel rail pressure sensor 3P connector: disconnected
- Engine oil pressure sensor 3P connector: disconnected
- Turbocharger 5P connector: disconnected
- Throttle body 6P connector: disconnected
- APP sensor 6P connector: disconnected
- Procedure
-
- Perform the inspection according to the following table.
Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
- Perform the inspection according to the following table.

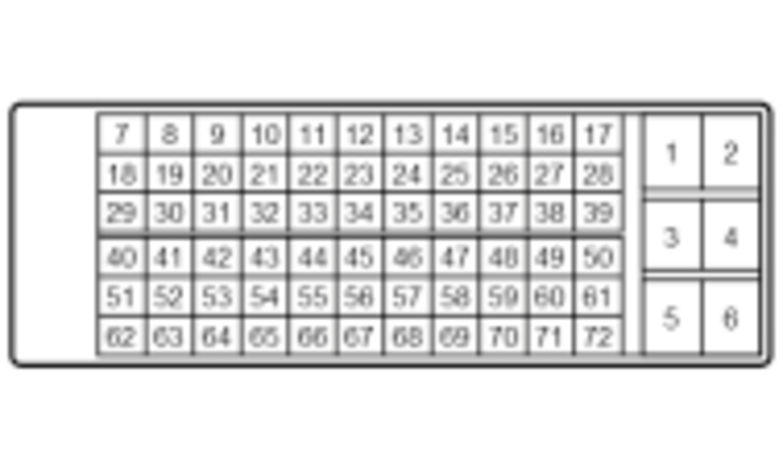

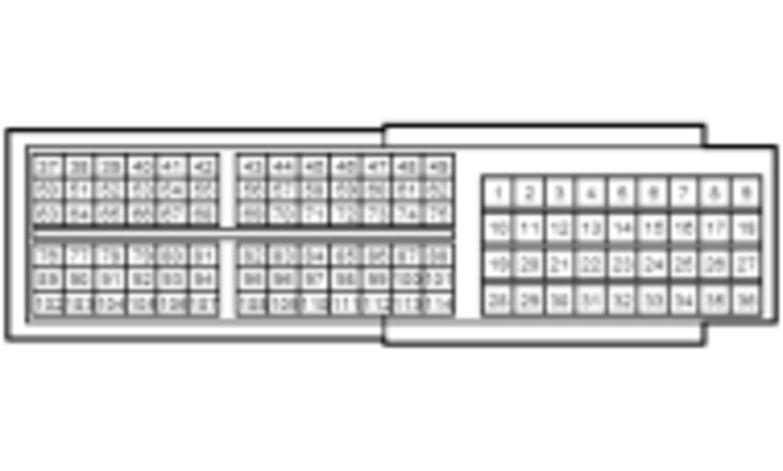

| (Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals | (Disconnected) PCM connector E (114P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals |
| IG Mode |
|
|
Normal Conditions | ||
| VCC1 shorted to power inspection | ON | Not shorted | |||
| VCC2 shorted to power inspection | ON | Not shorted | |||
| VCC3 shorted to power inspection | ON | Not shorted | |||
| VCC4 shorted to power inspection | ON | Not shorted |
Results
- If abnormal, there is a problem in the circuit.
PCM Inspection
Preconditions
NOTE:
This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.
- External circuit is normal
Test Procedure
- Preparation
-
- CKP sensor 3P connector: disconnected
- MAP sensor 3P connector: disconnected
- Fuel rail pressure sensor 3P connector: disconnected
- Engine oil pressure sensor 3P connector: disconnected
- Turbocharger 5P connector: disconnected
- Throttle body 6P connector: disconnected
- APP sensor 6P connector: disconnected
- Procedure
-
- Perform the confirmation procedure.
- Normal Conditions
-
- DTC P0643 is not indicated.
Results
- If it is abnormal, there is a problem with the PCM.
Components Connected to VCC1, VCC2, VCC3, VCC4 Circuit Inspection
Preconditions
NOTE:
This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.
- External circuit is normal
- PCM is normal
Test Procedure
- Preparation
-
- CKP sensor 3P connector: disconnected
- MAP sensor 3P connector: disconnected
- Fuel rail pressure sensor 3P connector: disconnected
- Engine oil pressure sensor 3P connector: disconnected
- Turbocharger 5P connector: disconnected
- Throttle body 6P connector: disconnected
- APP sensor 6P connector: disconnected
- Procedure
-
- Check for Pending or Confirmed DTCs with the HDS while reconnecting these parts, one at a time:
CKP sensor
MAP sensor
Fuel rail pressure sensor
Engine oil pressure sensor
Turbocharger
Throttle body
APP sensor
- Check for Pending or Confirmed DTCs with the HDS while reconnecting these parts, one at a time:
- Normal Conditions
-
- DTC P0643 is not indicated.
Results
- If it is abnormal, there is a problem with the component that caused the DTC when it was reconnected.
