DTC Troubleshooting: P062B(3.0L Engine): Inspection

+B_INJ, INJ_RLY_OUT, FI_MAIN_RLY_CL- Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • Injector relay: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

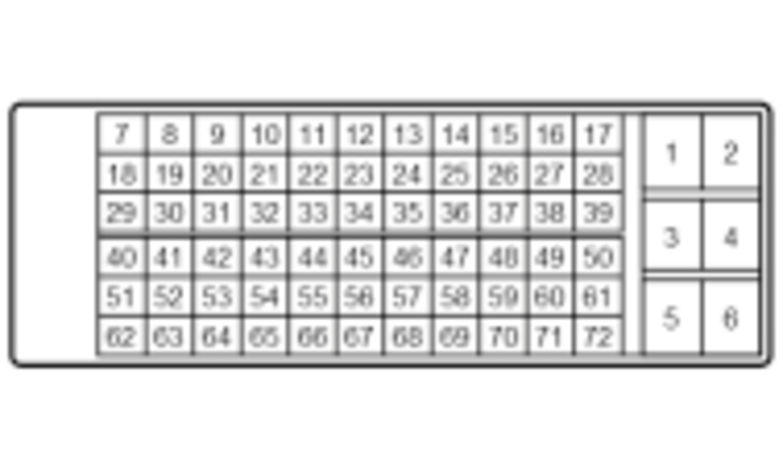

			(Disconnected)Injector relay 4P socketfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	+B_INJ circuit inspection 1	OFF			12 V battery voltage [circuit type 1]
	+B_INJ circuit inspection 2	OFF			12 V battery voltage [circuit type 1]
	INJ_RLY_OUT open wire inspection	OFF			There is less than 1 Ohm
	FI_MAIN_RLY_CL- open wire inspection	OFF			There is less than 1 Ohm
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	INJ_RLY_OUT shorted to ground inspection	OFF			Not shorted

Results

• If it is abnormal, there is a problem in the circuit.

  If the power supply inspection of the above table showed abnormally, do the additional Power Supply Inspection , to locate the failure.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
