DTC Troubleshooting: P0118(2.0L Engine): Inspection

ECT Sensor 1 Inspection

Test Procedure

Unit output voltage inspection

• Preparation
• • ECT sensor 1 2P connector: disconnected

• Procedure
• • Jump ECT sensor 1 2P connector terminals No. 1 and No. 2 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [ECT Sensor 1 Voltage].

	(Disconnected) ECT sensor 1 2P connector female terminals
	Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • HDS [ECT Sensor 1 Voltage] value is less than 4.92 V  .

Results

• If it is normal, there is a problem with ECT sensor 1.
• If it is abnormal, there is a problem with other related components.

TW, SG2 Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • ECT sensor 1 2P connector: disconnected
  • PCM connector E (80P): disconnected
• Procedure
• • Perform the inspection according to the following table.

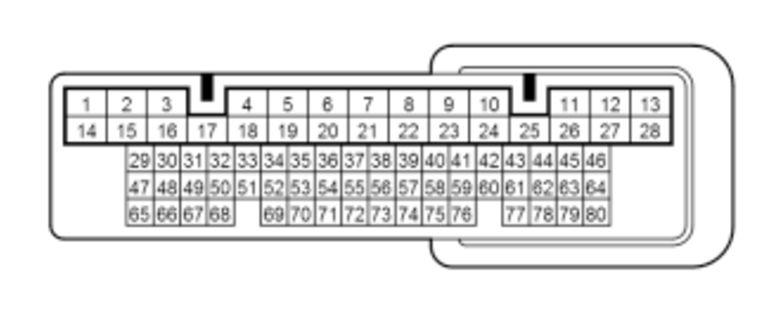

			(Disconnected)ECT sensor 1 2P connectorfemale terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	TW open wire inspection	OFF			There is less than 1 Ohm
	SG2 open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
