DTC Troubleshooting: P0113(3.0L Engine): Inspection

IAT Sensor 1 Inspection

Test Procedure

Unit output voltage inspection

• Preparation
• • MAF sensor/IAT sensor 1 4P connector: disconnected

• Procedure
• • Jump the MAF sensor/IAT sensor 1 4P connector terminals No. 2 and No. 4 with a jumper wire.
  • Turn the vehicle to the ON mode.
  • Confirm the HDS [IAT Sensor (1) Voltage].

	(Disconnected) MAF sensor/IAT sensor 1 4P connector female terminals
	Courtesy of HONDA, U.S.A., INC.

• Normal Conditions
• • USA and Canada models: HDS [IAT Sensor (1) Voltage] value is less than 4.87 V  .
  • Mexico models: HDS [IAT Sensor (1) Voltage] value is less than 4.99 V  .

Results

• If it is normal, there is a problem with MAF sensor/IAT sensor 1.
• If it is abnormal, there is a problem with other related components.

TA, VGM Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • MAF sensor/IAT sensor 1 4P connector: disconnected
  • PCM connector B (72P): disconnected
• Procedure
• • Perform the inspection according to the following table.

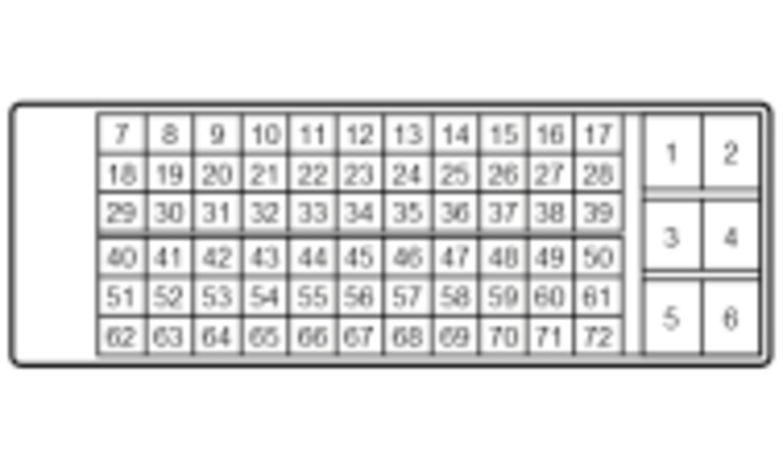

			(Disconnected)MAF sensor/IAT sensor 1 4P connectorfemale terminals	(Disconnected) PCM connector B (72P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	TA open wire inspection	OFF			There is less than 1 Ohm
	VGM open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.

PCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results

• There is a problem with the PCM.
