DTC Troubleshooting: P006E(2.0L Engine): Inspection

VBACT [DBW_RLY_OUT] Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

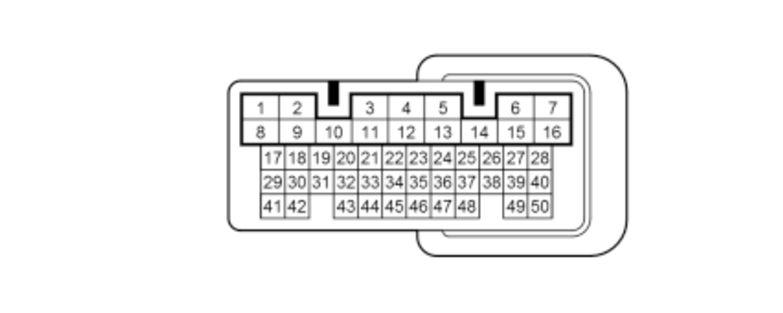

		(Disconnected)ETCS control relay 4P socketfemale terminals	(Disconnected) PCM connector A (50P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
VBACT [DBW_RLY_OUT] open wire inspection	OFF			There is less than 1 Ohm

Results

VBACT [DBW_RLY_OUT] Shorted Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
- ETCS control relay: disconnected
- PCM connector A (50P): disconnected
- A/F sensor (Sensor 1) 6P connector: disconnected
- EVAP canister purge valve 2P connector: disconnected
- Turbocharger bypass control solenoid valve 2P connector: disconnected
- A/C condenser fan relay: disconnected
- EVAP canister vent shut valve 2P connector (USA and Canada models): disconnected
Procedure
- Perform the inspection according to the following table.
  Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.


		(Disconnected)ETCS control relay 4P socketfemale terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
VBACT [DBW_RLY_OUT] shorted to ground inspection	OFF		Not shorted

Results

PCM Inspection

Test Procedure

If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results
