DTC Troubleshooting: P0035(2.0L Engine): Inspection

ABV Open Wire Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

• Preparation
• • -

    Turbocharger bypass control solenoid valve 2P connector: disconnected

  • -

    PCM connector E (80P): disconnected

• Procedure
• • -

    Perform the inspection according to the following table.

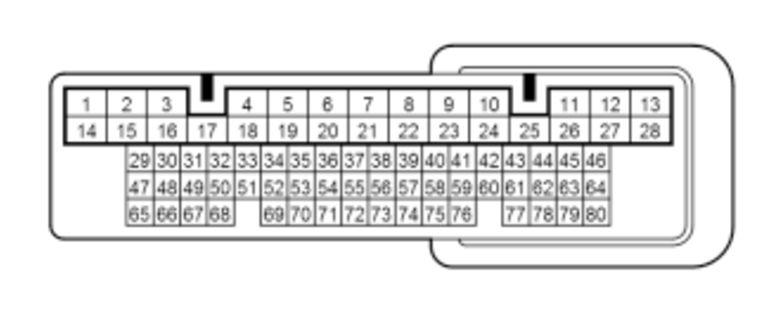

			(Disconnected) Turbocharger bypass control solenoid valve 2P connector female terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	ABV open wire inspection	OFF			There is less than 1 Ohm

Results

• If abnormal, there is a problem in the circuit.
• If normal, there is a problem with the PCM.
