DTC Troubleshooting: P0010 (2.0L Engine): Inspection

VTC Oil Control Solenoid Valve A Component Inspection

Test Procedure


		(Disconnected) VTC oil control solenoid valve A 2P connector male terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Valve internal circuit inspection	OFF		About 7.01 - 7.75 Ohm (at room temperature)

Results

VTC, PG1 Circuit Inspection

NOTICE:

Before disconnecting the PCM connector, jump the SCS line with the HDS, and wait more than 1 minute.

Test Procedure

Preparation
- PCM connector E (80P): disconnected
- VTC oil control solenoid valve A 2P connector: disconnected
Procedure
- Perform the inspection according to the following table.

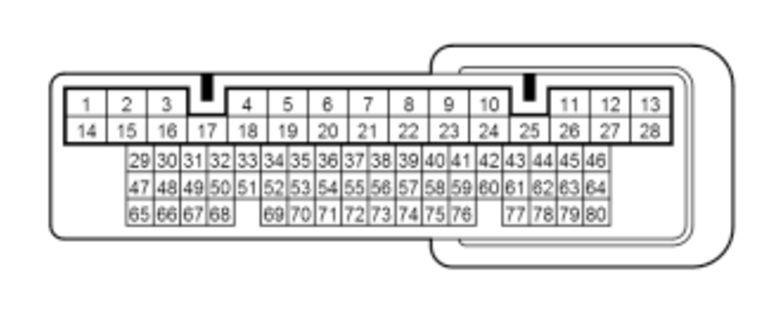

		(Disconnected) VTC oil control solenoid valve A 2P connector female terminals	(Disconnected) PCM connector E (80P) - Refer to: PCM Connector for Inputs and Outputs(3.0L Engine) or PCM Connector for Inputs and Outputs(2.0L Engine) female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
PG1 open wire inspection	OFF			There is less than 1 Ohm
VTC open wire inspection	OFF			There is less than 1 Ohm
NOTE: Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
VTC shorted to ground inspection	OFF			Not shorted

Results

PCM Inspection

Test Procedure

If the other inspection item(s) indicated a normal condition, then it is determined that the remaining PCM is the cause.

Results
