Inspection Outline
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

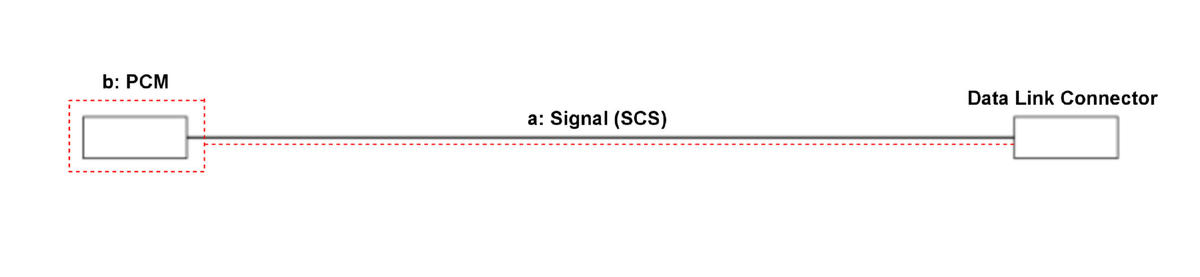

Inspection Outline
The components to be tested are indicated by a dotted line.
The illustration does not show all of the areas to be inspected.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
-
Gauge Control Module
Gauge Control Module Inspection
a
External Circuit
SCS Shorted Wire Inspection
b
PCM
PCM Inspection
