EVAP Two Way Valve Removal And Installation: Installation

  1. EVAP Two Way Valve - Install

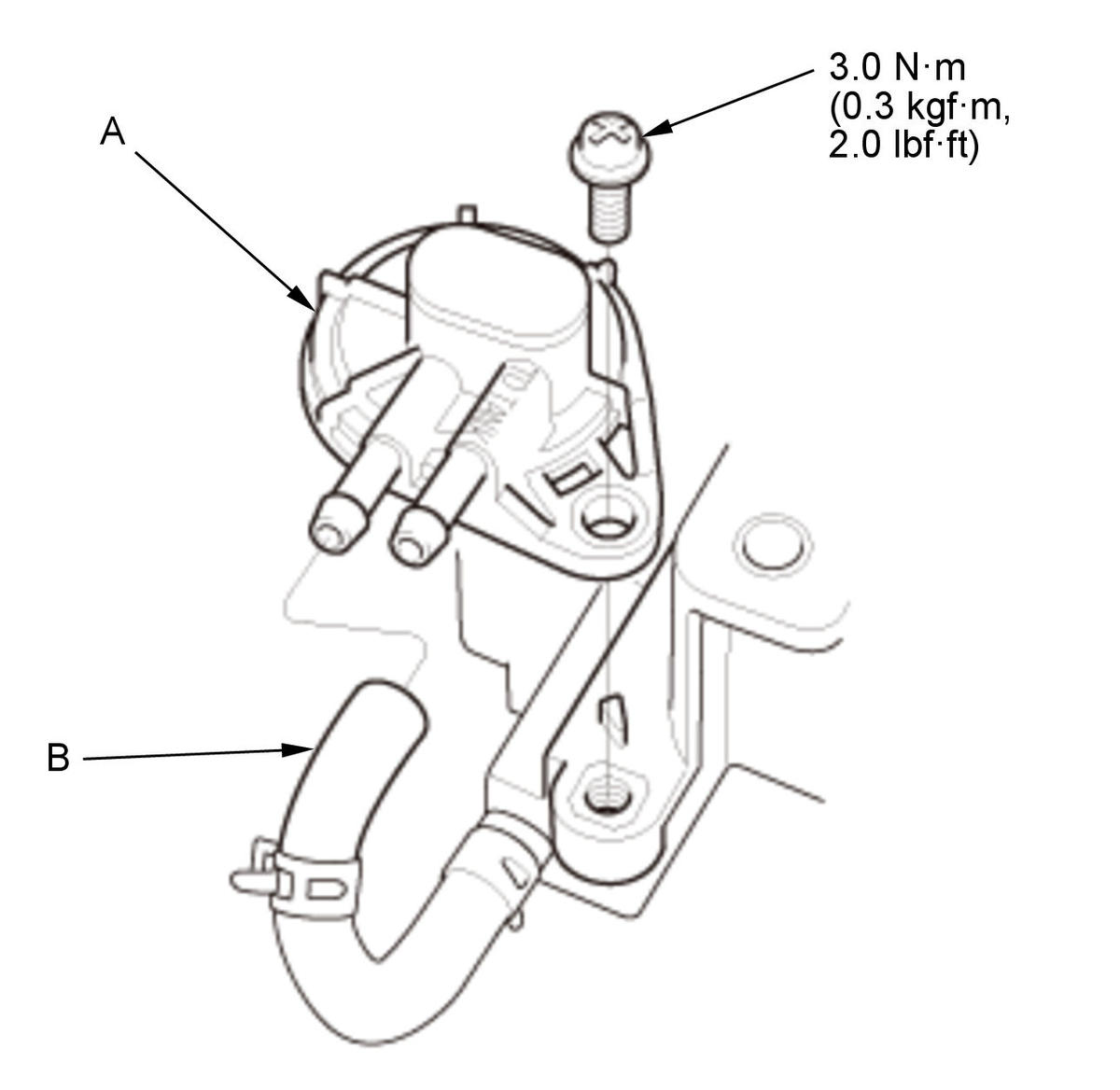

    GHH345887Courtesy of HONDA, U.S.A., INC.
    		 1. Install the EVAP two way valve (A).

    2. Connect the hose (B).
  2. EVAP Canister - Install

    Install the EVAP canister .
