Engine Control System / Engine Mechanical - Service, Testing & Troubleshooting (Except Hybrid)
>>
System Description
>>
PGM-FI - Components (KA/KC model)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

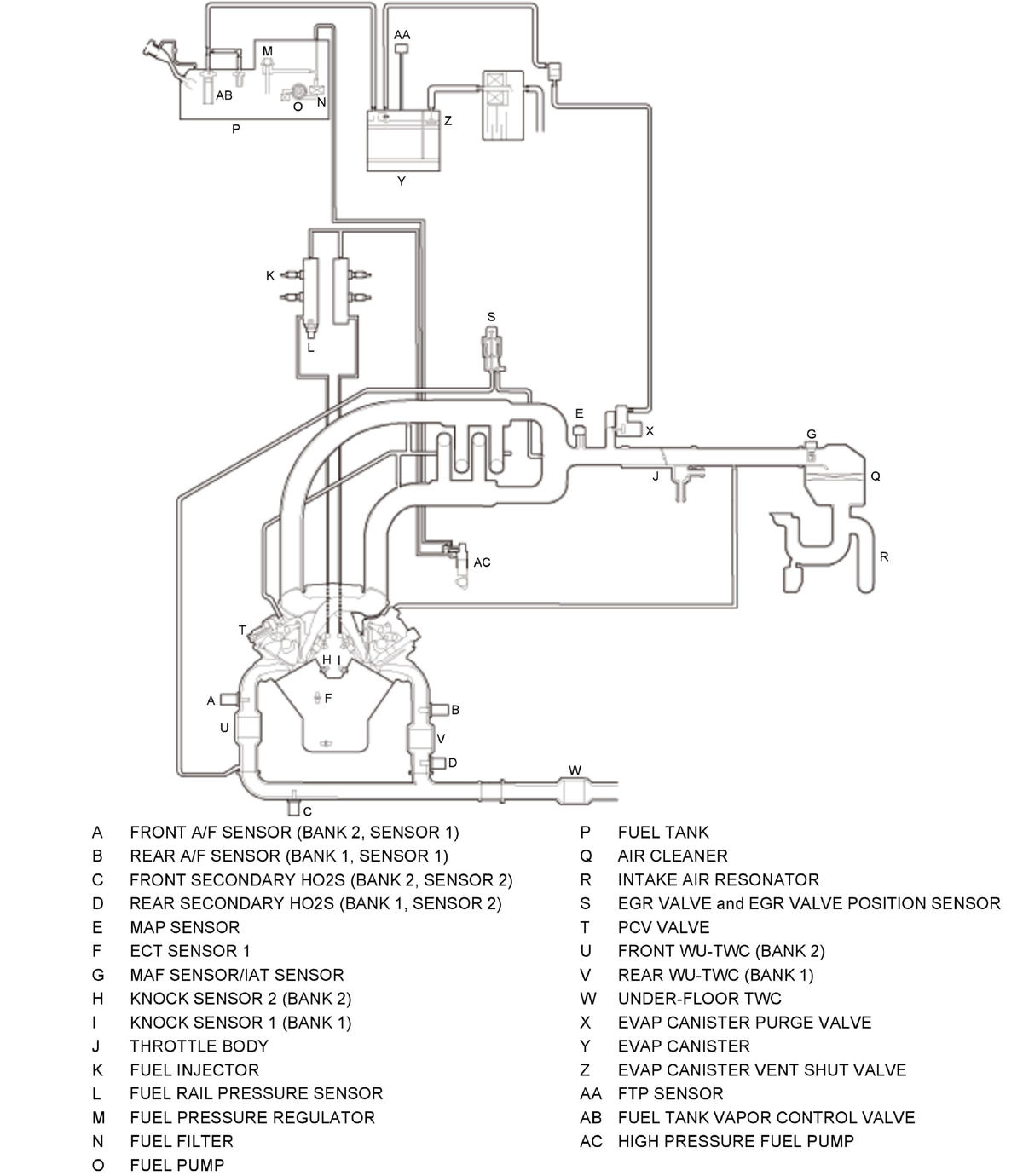

PGM-FI - Components (KA/KC model)
Courtesy of HONDA, U.S.A., INC.
