Rocker Arm Oil Pressure Sensor Inspection

Preconditions

• External circuit is normal

Test Procedure

• Preparation
  • Rocker arm oil pressure sensor 3P connector: disconnected
• Procedure
  • Perform the inspection according to the following table.

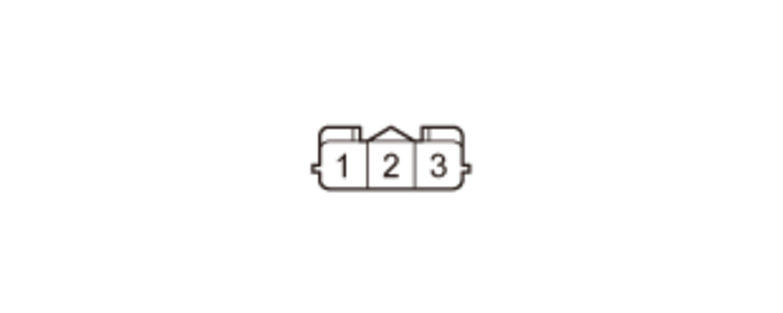

    			(Disconnected) Rocker arm oil pressure sensor 3P connector female terminals
    		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
    	PCM output voltage inspection	ON		About 5.0 V
    		ON		About 5.0 V

Results

• If it is normal, there is a problem with the rocker arm oil pressure sensor.
• If it is abnormal, there is a problem with the related components.
