Exploded View

For replacement of components listed below, see Repair Procedure .

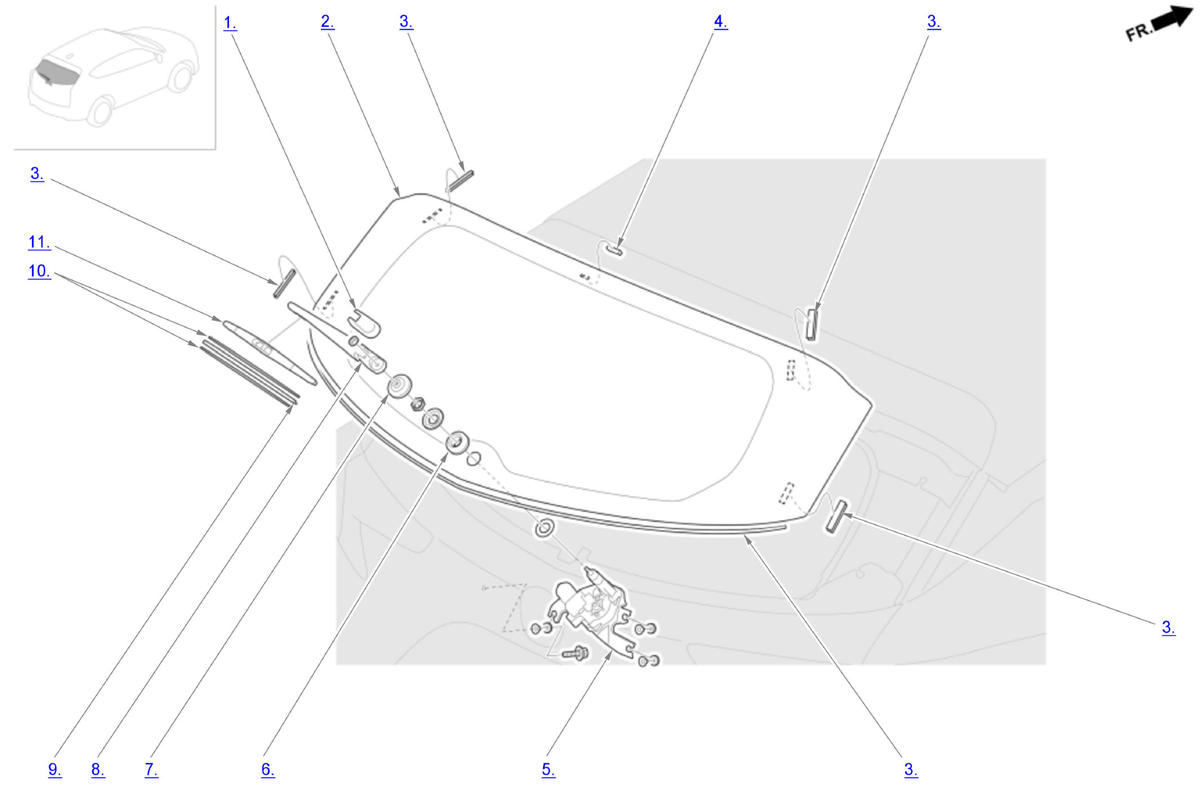

GHH340229Courtesy of HONDA, U.S.A., INC.
Rear Window Area Components

Component Name Callout
Rear Window Wiper Arm Cover 1
Rear Window 2
Rubber Dam 3
Spacer 4
Rear Window Wiper Motor 5
Seal 6
Pivot Cap 7
Rear Window Wiper Arm 8
Rear Window Wiper Blade 9
Rail 10
Rear Window Wiper Blade Holder 11
