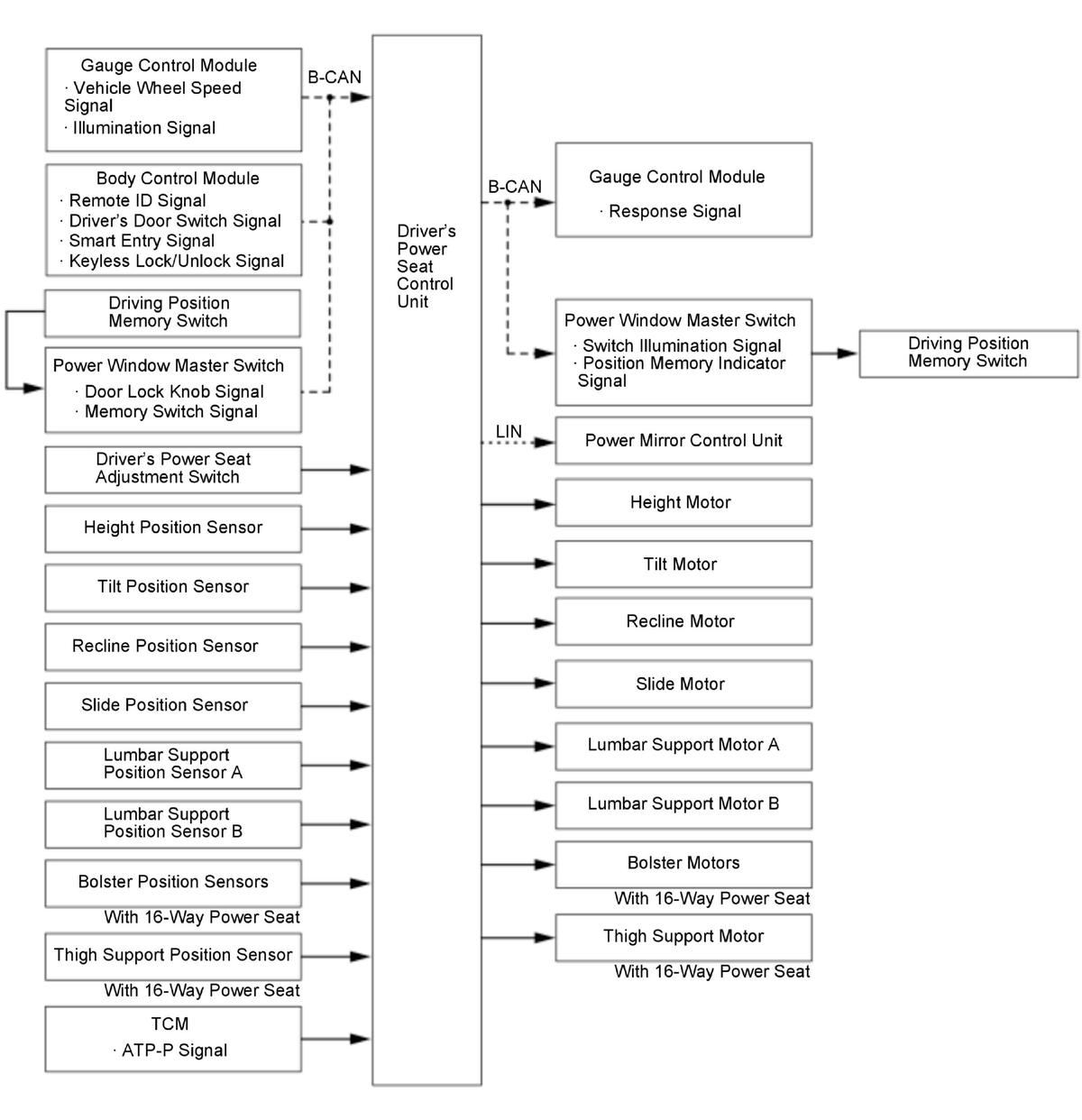

Driving Position Memory System Description - System Diagram

For locations of each component on vehicle, refer to Component Location Index

GHH334896Courtesy of HONDA, U.S.A., INC.
