Telematics Control Unit Components Inspection

Preconditions

NOTE: This procedure can be done before any other inspections are completed because this test procedure includes all of the following inspection items. However, if this test fails, it will be necessary to continue with each inspection item individually to determine which item failed.

External circuit is normal.

Test Procedure

Preparation
- Front HFL-ANC/active sound control microphone 8P connector: disconnected

Procedure

Perform the inspection according to the following table.

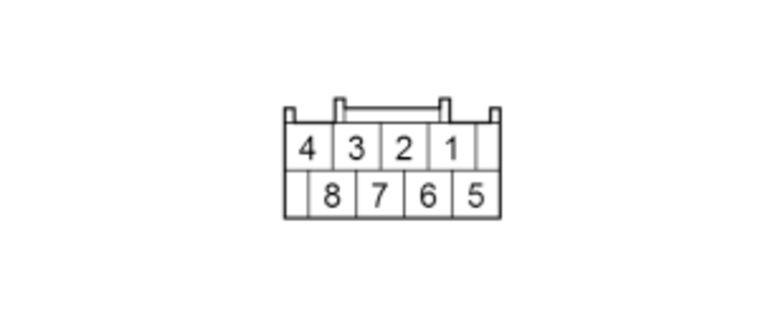

		(Disconnected) Front HFL-ANC/active sound control microphone 8P connector female terminals
	IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
Telematics control unit internal circuit inspection	ON		About 8 V

Results

If abnormal, there is a problem with the telematics control unit.
