DTC P00FE

DTC P00FE  : EVAP Vent Line Blockage

Special Tools Required

Vacuum Pump/Gauge, 0-30 inHg Snap-on YA4000A or equivalent, commercially available

DTC (PGM-FI)

1. EVAP canister check

   -1. Turn the vehicle to the OFF (LOCK) mode.

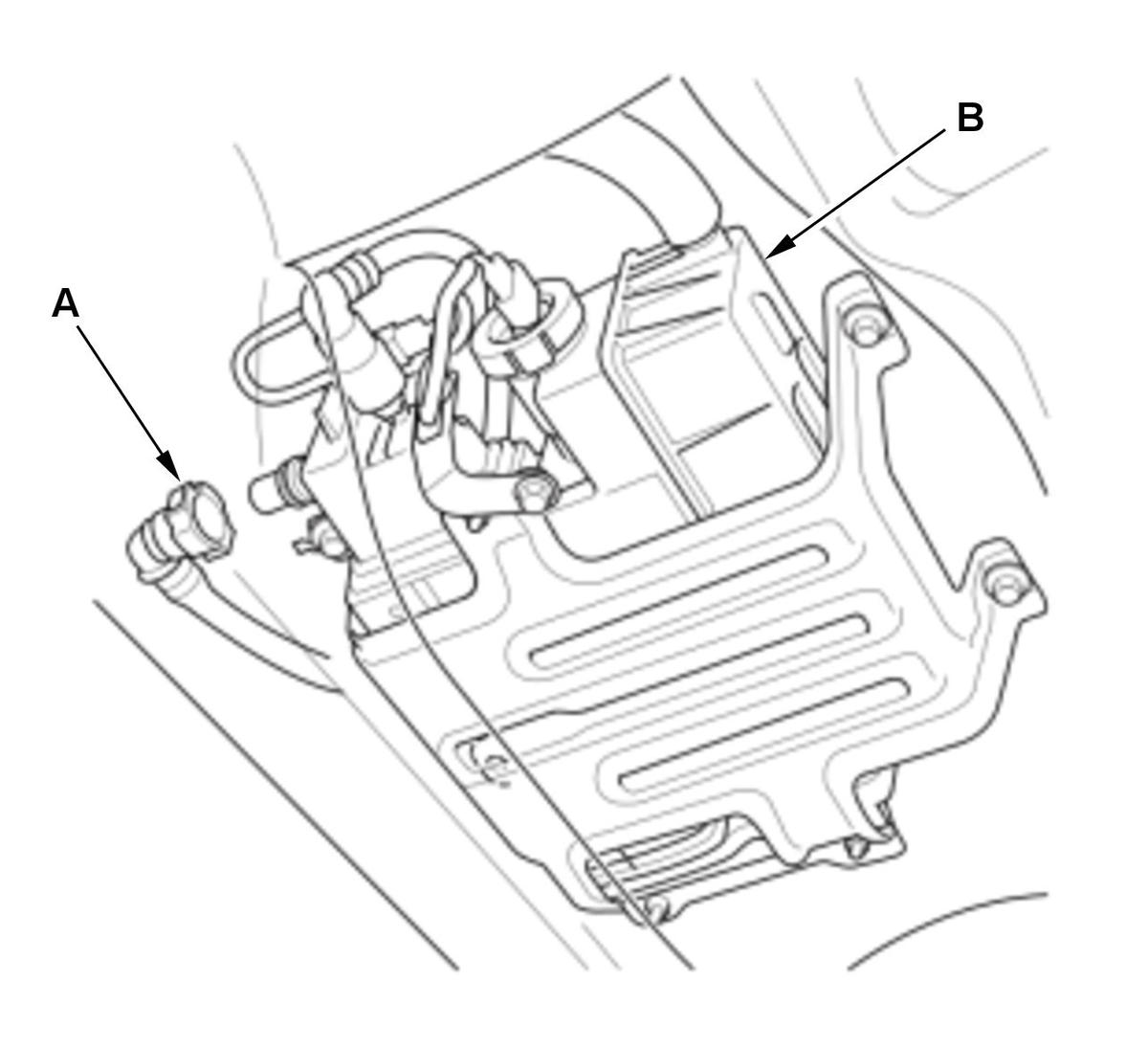

   -2. Disconnect the fuel vapor tube (A) from the EVAP canister (B).

   Courtesy of HONDA, U.S.A., INC.

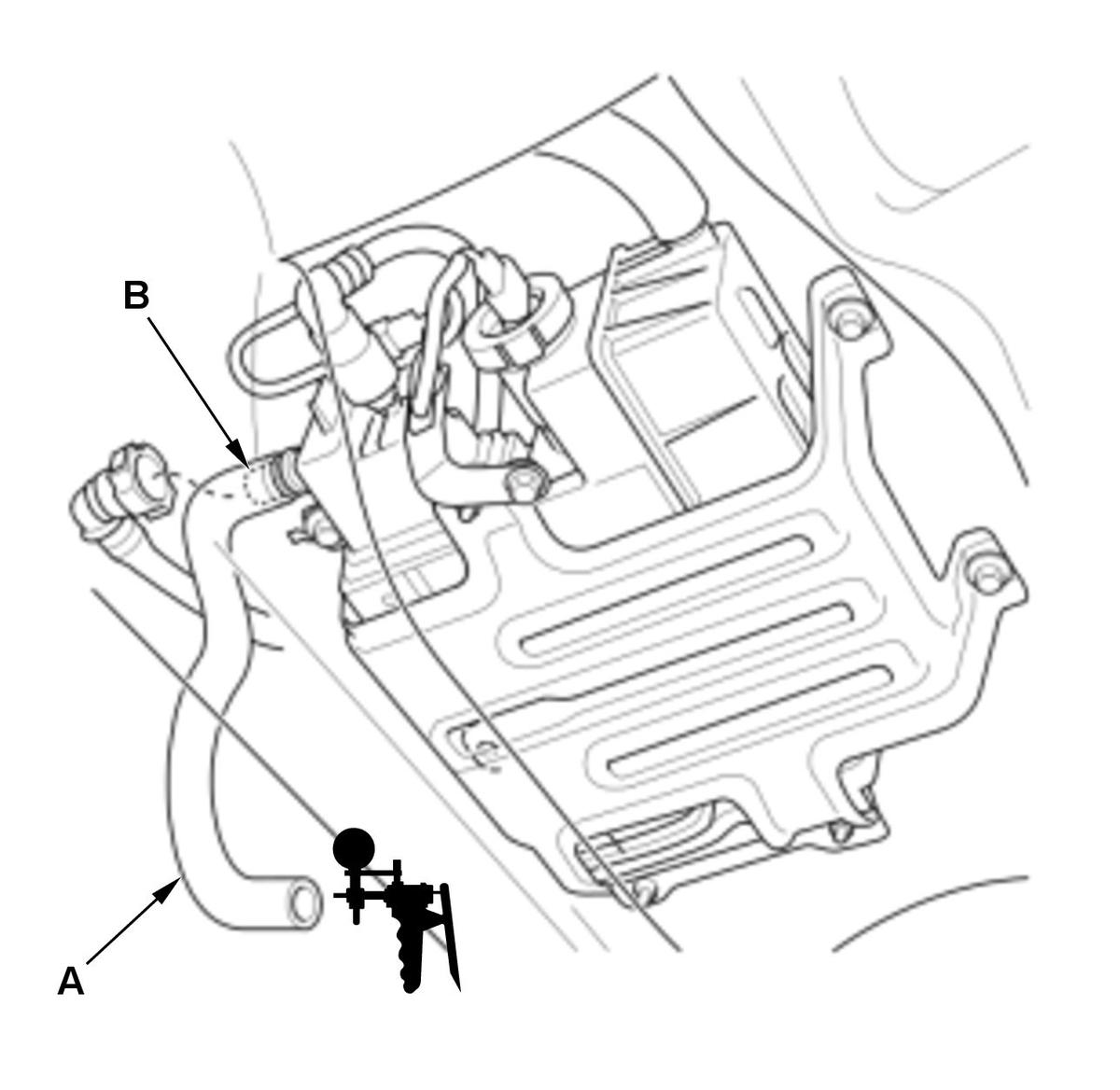

   -3. Connect a hose (A) to the EVAP canister fuel vapor tube port (B), and connect the vacuum pump/gauge, 0-30 inHg, to the hose as shown.

   Courtesy of HONDA, U.S.A., INC.

   -4. Turn the vehicle to the ON mode.

   -5. Apply 1.3 kPa (0.4 inHg, 10 mmHg) of vacuum to the hose.

   NOTE: Be careful not to exceed the vacuum. If you do, the FTP sensor can be damaged.

   -6. Check the parameter(s) below with the HDS.

   Signal	Current conditions
   	Values	Unit
   FTP Sensor

   Does the value of FTP SENSOR change?

   YES

   Replace the fuel tank .

   NO

   Replace the EVAP canister .
