EVAP Two Way Valve Removal And Installation: Removal

  1. EVAP Canister - Remove

    Remove the EVAP canister .

  2. EVAP Two Way Valve - Remove

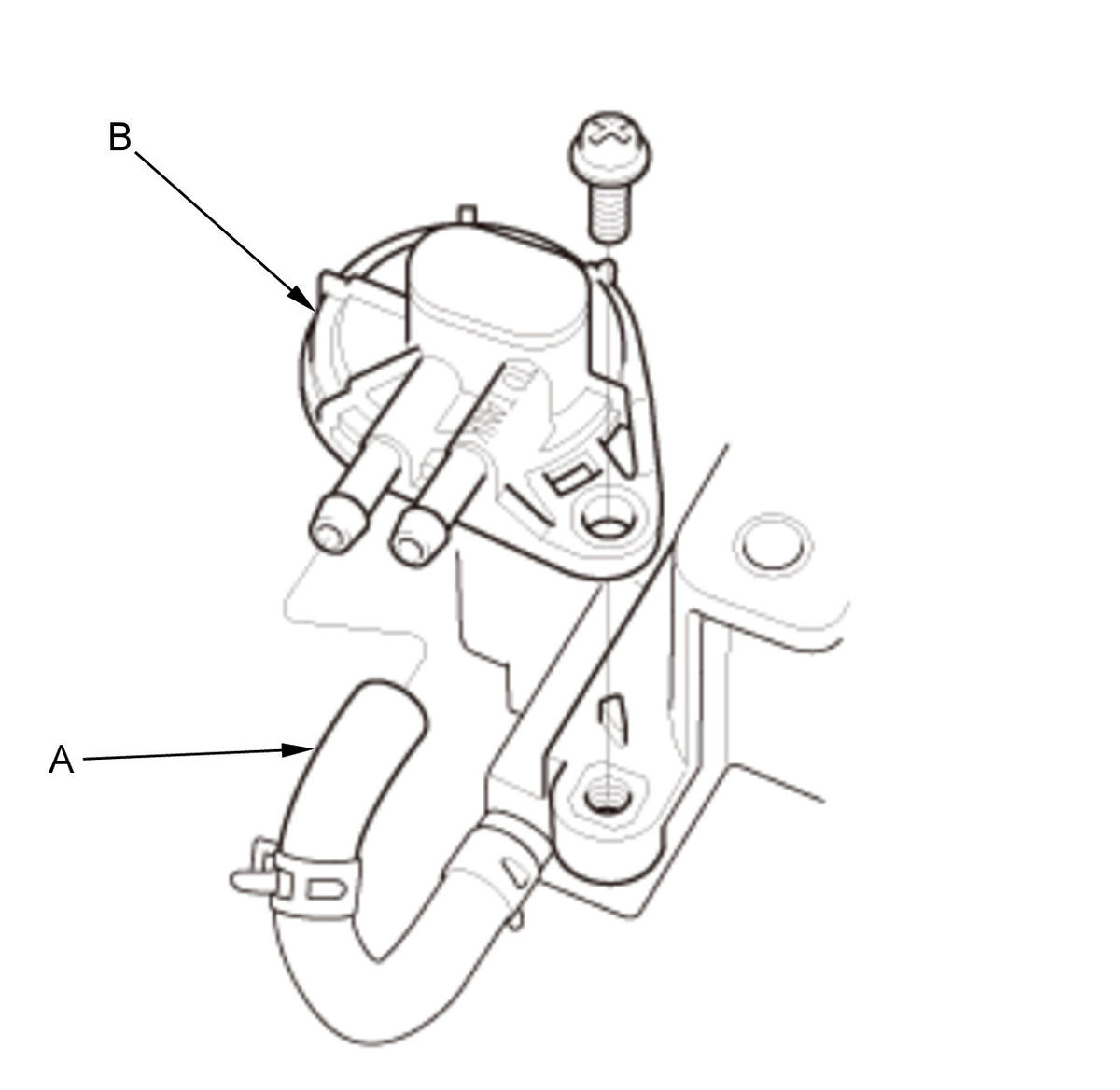

    GHH345886Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the hose (A).

    2. Remove the EVAP two way valve (B).
