Air Cleaner Removal And Installation: Installation

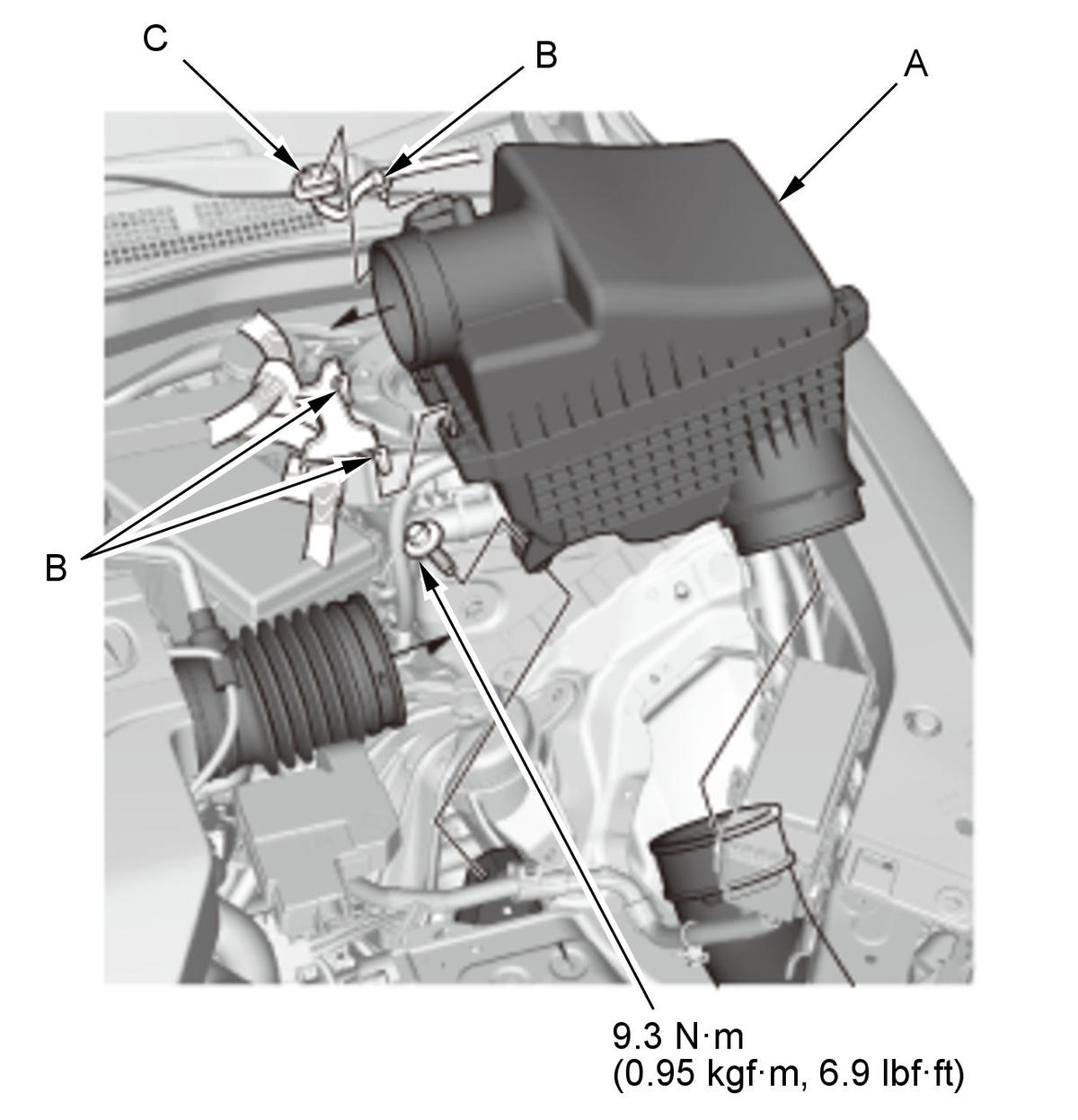

  1. Air Cleaner - Install
    GHH345816Courtesy of HONDA, U.S.A., INC.
    1. Install the air cleaner (A).

    2. Install the harness clamps (B).

    3. Connect the MAF sensor/IAT sensor connector (C).
