Shift Lever Disassembly and Reassembly (2013-18)
>>
Exploded View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Exploded View

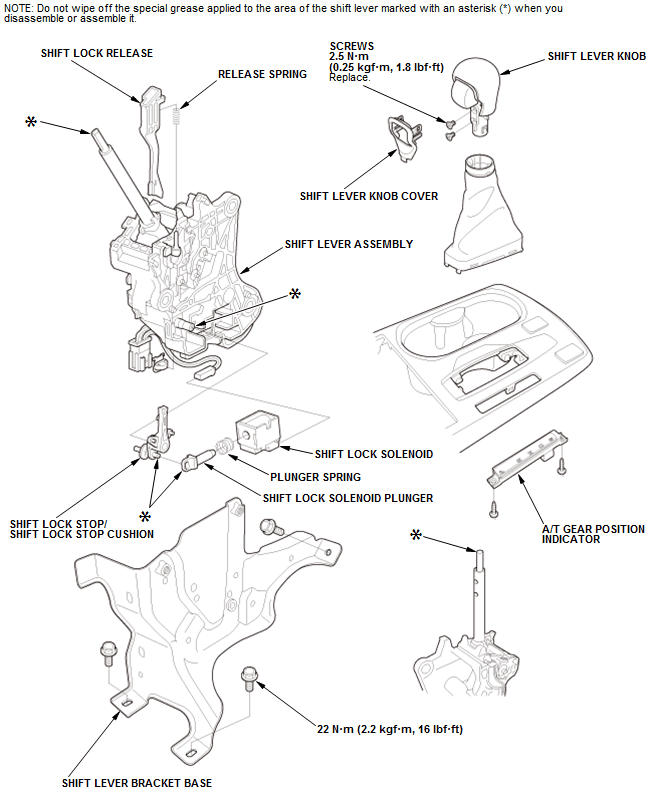

Shift Lever - Exploded View
Exploded View
Courtesy of HONDA, U.S.A., INC.
